Super Precision Spindle Bearings and How They Save Your Machine Tools
Why Machine Tool Spindle Bearings Are the Foundation of Precision Manufacturing
UPPERCASE METADATA: TITLE: SUPER PRECISION SPINDLE BEARINGS AND HOW THEY SAVE YOUR MACHINE TOOLS META DESCRIPTION: DISCOVER HOW SUPER PRECISION MACHINE TOOL SPINDLE BEARINGS ENHANCE ACCURACY, SPEED, AND LIFESPAN. LEARN ABOUT TYPES, PRELOADS, AND MAINTENANCE BEST PRACTICES.

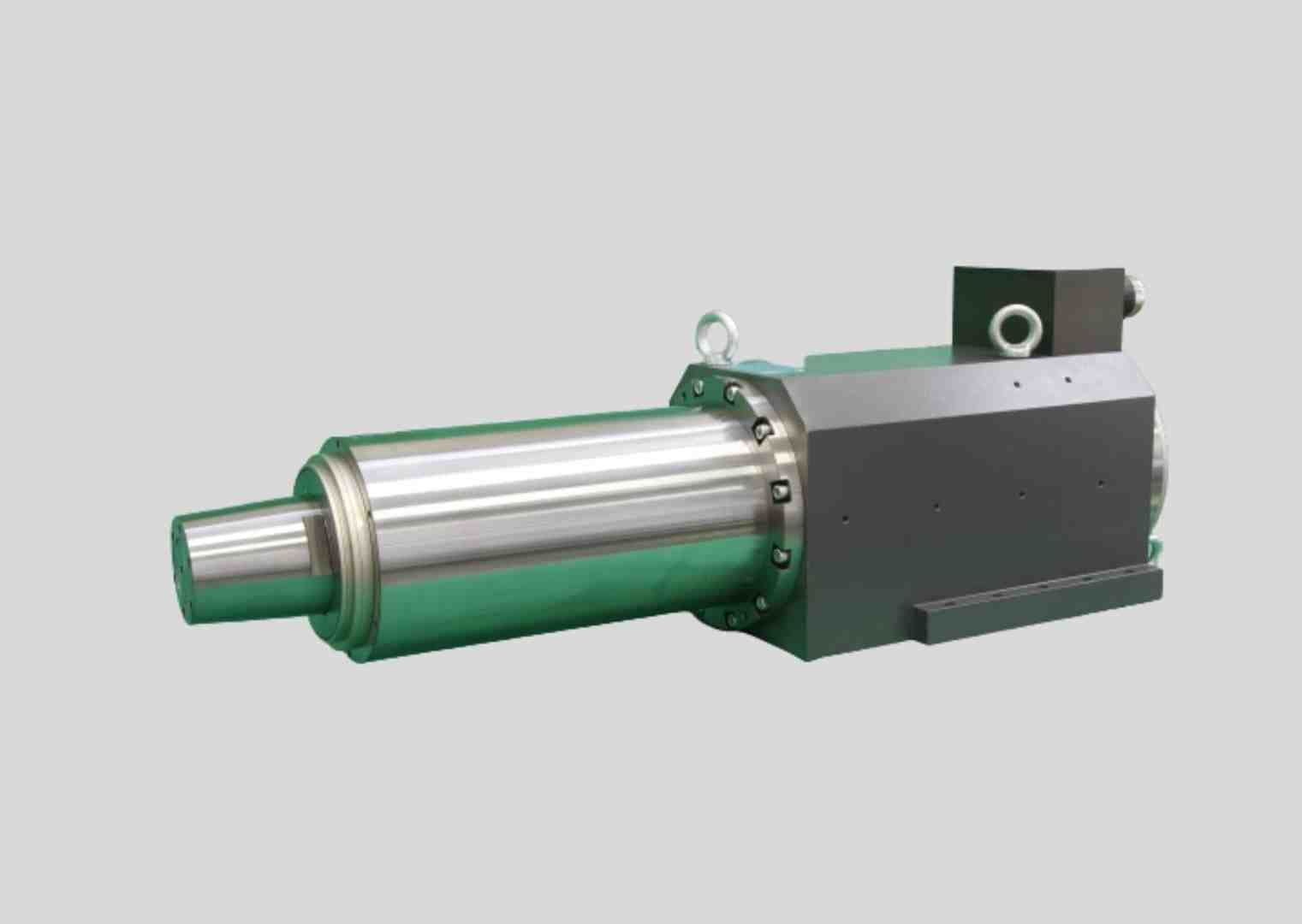

Machine tool spindle bearings are the core components that allow a machine tool’s spindle to rotate with extreme accuracy, support cutting forces, and maintain tight tolerances — often down to a single micron.
If you need a quick overview before diving deeper:
| Bearing Type | Best For | Key Strength |
|---|---|---|
| Angular contact ball | High-speed machining | Speed + combined load handling |
| Cylindrical roller | Heavy radial loads | Stiffness and load capacity |
| Thrust ball (60°) | Ball screw support | Pure axial load |
| Hybrid ceramic | Ultra-high-speed spindles | Lower heat, higher RPM |
Key facts at a glance:
- Precision grades range from P4 (standard) to P2 (ultra-precision), with radial runout as low as 0–2.5 µm at P2/P3
- Contact angles of 15° or 25° are most common — smaller angles favor speed, larger angles favor axial load capacity
- Preload type (light, medium, heavy, or spring-loaded) directly controls spindle rigidity and bearing life
- Hybrid ceramic bearings can run significantly faster and cooler than all-steel equivalents
For aerospace and high-precision manufacturing operations, none of this is academic. A spindle bearing that wears prematurely or loses accuracy doesn’t just affect one part — it can cascade into scrapped batches, unplanned downtime, and costly OEM spindle replacements.
Spindle bearings have been engineered for precision since their first industrial patent in 1912. Yet even today, improper bearing selection, wrong preload, or poor lubrication practice remains one of the leading causes of early spindle failure.
This guide covers everything you need to make the right decisions — from bearing types and contact angles to mounting, maintenance, and upgrade paths.
Related content about machine tool spindle bearings:
Understanding Super Precision Spindle Bearing Types
When we talk about high-performance industrial manufacturing spindles, we aren’t talking about standard off-the-shelf hardware. The bearings inside these assemblies are highly specialized components engineered to handle blistering rotational speeds, heavy cutting forces, and extreme thermal demands. Choosing the correct Spindle Bearing Types is the first and most critical step in ensuring your machinery runs reliably.
In industrial machining, we primarily rely on three main categories of super precision bearings: angular contact ball bearings, cylindrical roller bearings, and specialized thrust ball bearings. Each design offers a distinct compromise between speed capability, radial load carrying capacity, and axial stiffness.
The Role of Machine Tool Spindle Bearings in Precision Machining
At its core, a Spindle Bearing must guide a rotating shaft with near-zero deviation. In high-speed milling, aerospace components machining, or semiconductor manufacturing, even a tiny amount of radial runout can ruin a workpiece.
These bearings are designed to minimize heat generation while maximizing axial stiffness and radial load distribution. This ensures that when the cutting tool meets raw metal, the shaft remains perfectly stable. Without this level of rotational accuracy, achieving sub-micron surface finishes would be completely impossible.
Angular Contact vs. Cylindrical Roller Bearings
For most high-speed spindles, the angular contact ball bearing is the undisputed king. Because the balls make contact with the raceways at an angle, these bearings can handle combined radial and axial loads simultaneously. When configured in a Ball Bearing Spindle, they deliver the speed capability required for modern high-velocity machining.
On the other hand, cylindrical roller bearings are the heavy lifters of the spindle world. Because they feature line contact rather than point contact, they provide massive radial load capacity and unmatched radial rigidity. However, standard cylindrical rollers cannot handle axial loads at all and are limited to lower maximum speeds. Many heavy-duty milling spindles use a hybrid layout: a double-row cylindrical roller bearing at the front to handle heavy radial cutting forces, paired with a set of angular contact bearings to manage the axial thrust.
Contact Angles, Precision Grades, and Preload Dynamics
To fine-tune a spindle’s performance, engineers adjust three major design variables: the contact angle, the precision grade, and the internal preload. Getting these three factors right is the difference between a spindle that lasts for years and one that fails in a matter of weeks.
| Contact Angle | Speed Capability | Axial Load Capacity | Radial/Bending Rigidity |
|---|---|---|---|
| 15° | Extremely High | Low | Moderate |
| 18° | High | Moderate | High (Excellent for Bending) |
| 25° | Moderate | High | Very High |
| 60° | Low | Extremely High | Maximum Axial Rigidity |
How Contact Angles Affect Speed and Stiffness
The contact angle is the angle between the line joining the contact points of the ball and raceways in the radial plane, along which the load is transmitted. Standard super precision angular contact bearings generally come in 15° and 25° options, though specialized 18° and 60° options also exist.
- 15-Degree Angles: These are optimized for high-speed applications. Because the angle is shallow, centrifugal forces on the balls are minimized, allowing for higher limiting speeds and lower operating temperatures.
- 18-Degree Angles: Often selected to provide a boost in bending stiffness and radial internal clearance in high-speed applications without severely limiting maximum RPM.
- 25-Degree Angles: These are preferred for motorized spindles that must withstand higher axial cutting forces. While they have a lower speed limit, they offer significantly higher axial load capacity.
- 60-Degree Angles: Typically reserved for pure thrust applications, such as ball screw support bearings, where maximum axial rigidity is the primary requirement.
Precision grades for these bearings are governed by strict international standards. Standard precision grades include P4 (equivalent to ABEC 7), P3 (which combines P2 running accuracy with P4 dimensional tolerances), and P2 (equivalent to ABEC 9). High-quality manufacturers like NSK use single micron grading for the bore, outer diameter, and width. This allows us to match bearings within a fraction of a micron, ensuring perfectly even load sharing across a bearing set. You can review specific dimensional tolerances in the Technical sheet of B7210SP P4 to see how these limits are applied in practice.
Understanding Spindle Bearing Preload and Rigidity
Preload is the intentional application of a permanent axial load to the bearings during assembly. This serves to eliminate internal radial and axial play, prevent the balls from skidding at high speeds, and dramatically increase overall spindle rigidity.
According to our Spindle Bearing Preload Complete Guide, selecting the proper Spindle Bearing Preload level is a balancing act:
- Light Preload: Offers the lowest friction and heat generation, allowing for the highest operating speeds.
- Medium Preload: Provides a balanced compromise between speed and structural rigidity.
- Heavy Preload: Delivers maximum rigidity for heavy-duty, low-speed machining, but generates substantial heat at high RPM.
Additionally, we must choose between fixed preload (where the bearings are locked mechanically in place using precision spacers) and spring preload (constant pressure). Constant-pressure spring preloads are highly effective for ultra-high-speed grinding applications because they allow the bearing set to expand axially as it heats up, preventing thermal lockup.
Steel vs. Hybrid Ceramic Ball Bearings
One of the most impactful upgrades you can make to an industrial spindle is transitioning from standard all-steel bearings to hybrid ceramic ball bearings.
Standard super precision bearings utilize high-carbon chromium steel (such as 100Cr6) for both the races and the rolling elements. Hybrid ceramic bearings, however, pair ultra-hard silicon nitride ($Si3N4$) ceramic balls with high-performance steel races.
Performance Benefits of Hybrid Ceramic Bearings
According to the Precision Spindle Bearings Complete Guide, hybrid ceramic bearings offer massive advantages for modern high-speed machining:
- Lower Density: Silicon nitride balls are 60% lighter than steel balls. This drastically reduces the centrifugal force exerted by the balls against the outer raceway at high speeds, minimizing friction and wear.
- Reduced Thermal Expansion: Ceramic has a much lower coefficient of thermal expansion than steel. As the spindle warms up during operation, the ceramic balls do not expand as much, preventing preload spikes and thermal runaway.
- Higher RPM limits: Due to lower friction and lighter weight, hybrid bearings can achieve significantly higher limiting speeds — up to 100,000 RPM on grease and 160,000 RPM on oil-air systems.
- Electrical Insulation: Ceramic is naturally non-conductive, protecting the bearing raceways from electrical pitting caused by stray currents in motorized spindles.
For high-speed electric spindles, hybrid bearings have become the industry standard. They run cooler, last longer, and allow machine tools to operate at the cutting speeds required for advanced manufacturing.
Selecting and Mounting Machine Tool Spindle Bearings
Even the highest-grade bearing will fail prematurely if it is selected poorly or mounted incorrectly. Installing super precision bearings is an art form that requires extreme cleanliness, precise measuring tools, and a deep understanding of bearing arrangements.
When replacing bearings, we often use matched sets. These are engineered to distribute loads evenly. The most common mounting configurations include:
- DB (Back-to-Back): This configuration provides high radial and bending stiffness, making it the most common arrangement for spindles subjected to overhung loads.
- DF (Face-to-Face): Offers slightly lower bending stiffness but is more tolerant of minor housing misalignment and can accommodate thermal expansion more gracefully.
- DT (Tandem): Used when high axial load capacity is required in a single direction. DT pairs must be matched with another bearing or set to handle counter-forces.
Proper shaft and housing fits are critical during Spindle Bearing Assembly. If the fit on the shaft is too tight, the bearing’s internal clearance is reduced, which can cause excessive heat. If the fit in the housing is too loose, the bearing outer ring can spin, ruining the housing. For further details on sourcing matched precision components, you can explore the Machine Tool Spindle Bearings – usa roller chain catalog or consult a dedicated Machine Tool Spindle Bearing Supplier .
Upgrading Your Machine Tool Spindle Bearings for High-Speed Performance
If you are rebuilding a troublesome spindle, you don’t always have to stick to the original OEM specifications. Upgrades can significantly extend your spindle’s operating life:
- Sealed Bearings: Moving from open bearings to pre-greased, sealed bearings prevents coolant and particulate contamination, which is the leading cause of premature spindle failure.
- Robust Series Designs: Many modern bearing lines utilize smaller ball diameters to reduce centrifugal forces, allowing for higher operating speeds without sacrificing stiffness.
- High-Performance Materials: Advanced steels like Vacrodur offer up to 25 times longer nominal rating life under mixed friction conditions and up to 13 times longer under elastohydrodynamic (EHD) lubrication compared to standard 100Cr6 steel. You can read more about these advanced materials through the Spindle Bearings M-series | Schaeffler Group USA Inc. documentation.
Troubleshooting Spindle Bearing Failure and Maintenance
No bearing lasts forever, but premature Spindle Bearing Failure is almost always preventable. By monitoring your spindle’s health and executing proper maintenance, you can catch issues before they lead to catastrophic machine damage.
Common Signs of Spindle Bearing Wear
According to our Spindle Bearing Noise Complete Guide, a failing bearing will usually tell you it’s in trouble long before it stops spinning. Watch for these warning signs:
- High-Frequency Vibration: Using vibration analysis, we look for levels exceeding 0.5–2.0 mm/s RMS. Spikes in specific ball pass frequencies indicate raceway damage or ball wear.
- Temperature Spikes: Precision spindle bearings should ideally operate between 40°C and 60°C. Any temperature spike above 80°C indicates a serious issue, such as lubrication breakdown or a sudden preload increase.
- Dimensional Inaccuracy: If your machine is suddenly struggling to hold tolerances, or if you notice a degraded surface finish on your parts, radial or axial runout has likely exceeded acceptable limits (typically 1–3 µm).
For a deeper dive into diagnosing internal spindle components, take a look at our guide on Decoding Spindle Assemblies Your Go To Bearing Breakdown.
Proper Run-In and Lubrication Procedures
Proper Spindle Bearing Lubrication is critical. Precision spindles typically use either high-speed grease or an oil-air mist system.
When installing new bearings, executing a proper run-in procedure is mandatory. According to our Spindle Bearing Replacement Complete Guide, a run-in consists of a series of short cycles starting at a low RPM and gradually stepping up to the maximum operating speed. This allows the grease to distribute evenly throughout the bearing cavity and prevents localized overheating.
During any Spindle Bearing Replacement Procedure, cleanliness is paramount. The assembly should be completed in a dust-free environment with a relative humidity of 65% or lower. If you are performing the disassembly yourself, using a proper tool from our Spindle Bearing Puller Guide 2025 will help ensure you do not damage the precision-ground shaft or housing during Spindle Bearing Replacement.
Frequently Asked Questions about Spindle Bearings
What is the difference between P2 and P4 precision grades?
Precision grades dictate the dimensional and running tolerances of the bearing. A P2 grade bearing represents the pinnacle of super precision, offering roughly half the radial runout tolerances of a standard P4 bearing. While P4 bearings are highly accurate and suitable for most standard CNC spindles, P2 bearings are reserved for ultra-precision applications where sub-micron accuracy and minimal rotational vibration are mandatory.
Why do hybrid ceramic bearings run cooler than steel bearings?
Hybrid ceramic bearings run cooler because silicon nitride balls have a much lower coefficient of friction and are 60% lighter than steel balls. This reduction in mass minimizes the centrifugal forces acting on the outer ring at high RPM, which drastically reduces internal friction and heat generation. Additionally, ceramic does not expand as much as steel when exposed to heat, preventing thermal preload spikes.
How often should machine tool spindle bearings be lubricated?
The lubrication frequency depends entirely on the delivery system. Sealed-for-life grease bearings are pre-filled with a precise volume of grease (typically 15% to 30% of the free internal volume) and require no relubrication over their service life. For open bearings utilizing oil-air systems, lubrication is continuous, with minute droplets of oil delivered at regular intervals via compressed air.
Conclusion
Super precision machine tool spindle bearings are the unsung heroes of modern manufacturing. From maintaining sub-micron rotational accuracy to surviving blistering speeds up to 100,000+ RPM, these components dictate your machine tool’s ultimate capabilities.
When a spindle begins to vibrate, run hot, or lose accuracy, fast action is required to prevent catastrophic damage to your machine housing and shaft. At MZI Precision, we specialize in high-quality industrial manufacturing spindle repair and industrial manufacturing spindle rebuilding. Serving critical industries including aerospace, defense, and solar energy, we are committed to providing exceptional service and support for all your OEM rebuilt spindles.
