Don’t Let a Broken Spindle Break Your Spirit
Rebuild broken spindles the right way with this quick overview before we dive deep:

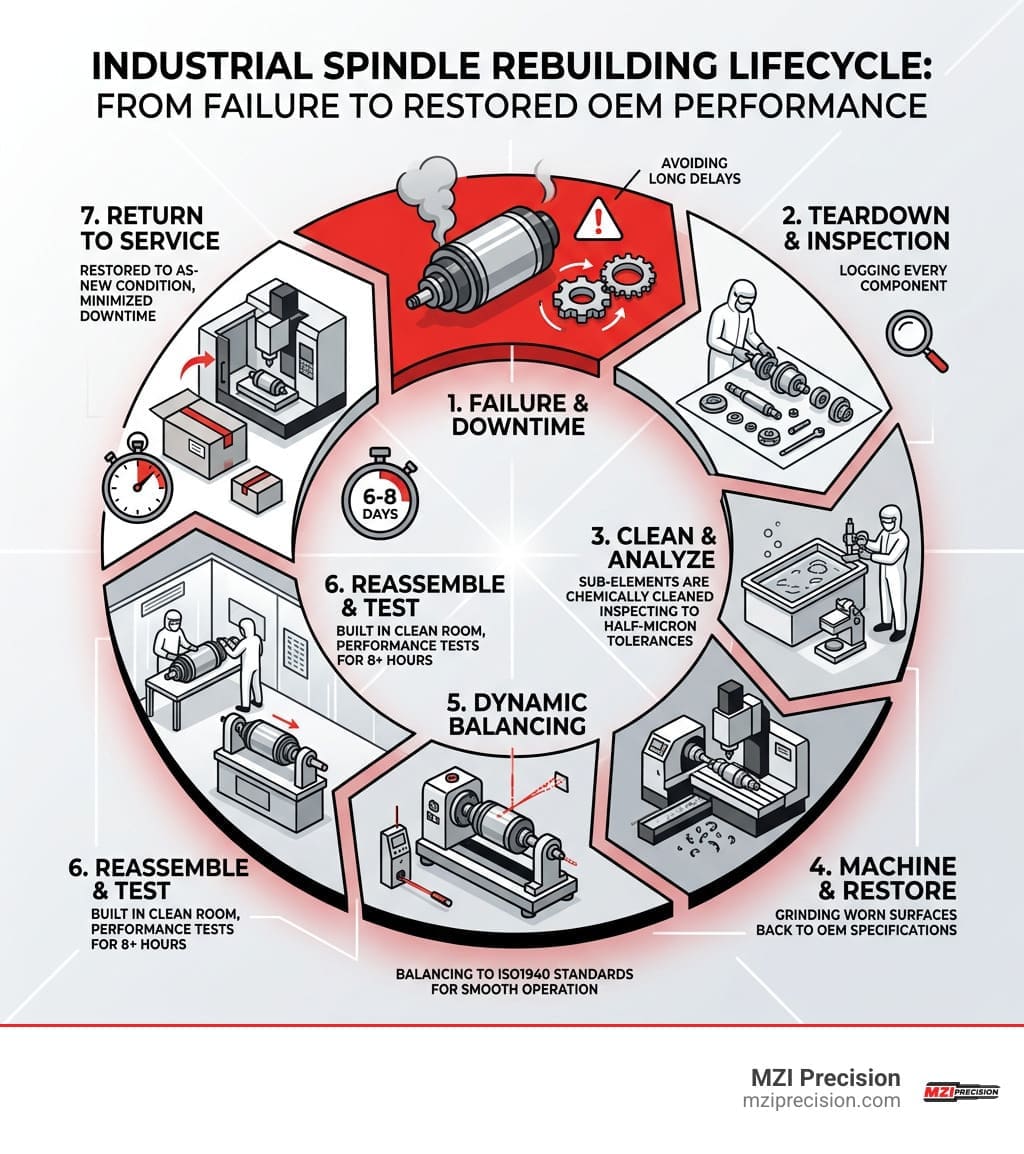

How to rebuild a broken industrial spindle (summary):
- Teardown & inspection – Disassemble the spindle and log every component
- Clean & analyze – Chemically clean parts and inspect to half-micron tolerances
- Machine & restore – Grind worn surfaces back to OEM specifications
- Dynamic balancing – Balance rotating components to ISO1940 standards
- Reassemble & test – Build in a clean room, then run performance tests for 8+ hours
- Return to service – Ship back with documentation and warranty
If you run CNC machines, grinders, or lathes in aerospace or precision manufacturing, you already know the feeling. One failed spindle and your entire production line stops cold.
The pain is real. A new replacement spindle can take up to 24 weeks to arrive. That’s nearly six months of downtime, lost contracts, and mounting costs.
Here’s the good news: rebuilding is almost always faster, cheaper, and smarter than replacing.
A professionally rebuilt spindle can be back in your hands in as little as 6 to 8 days – restored to the same OEM specifications it had when it was new. And at a fraction of the replacement cost.
This guide walks you through everything you need to know about the industrial spindle rebuilding process – from the moment something goes wrong to the moment your machine is running at full precision again.
Rebuild broken spindles word guide:
Common Causes of Industrial Spindle Failure
In the high-stakes world of industrial manufacturing, the spindle is the heart of the machine. Whether it is a high-speed unit reaching 60,000 RPM or a heavy-duty model designed for high-torque milling, failure is usually the result of a few common culprits. Understanding these can help you extend the life of your spindles and avoid unnecessary downtime.
Bearing Fatigue and Improper Lubrication
Bearings are often the first components to give out. Under normal conditions, a well-maintained spindle should last about 6,000 operational hours before needing a rebuild. However, poor lubrication—either too much or too little—can cause friction to skyrocket, leading to overheating and premature bearing failure. When we rebuild broken spindles, we often find that the bearing preload has changed due to thermal expansion, causing the entire assembly to seize or vibrate excessively.
Contamination
In a machine shop, the environment is filled with coolants, metal chips, and fine dust. If the sealing system or air purge fails, these contaminants can enter the spindle housing. Once inside, they act like sandpaper on precision surfaces. This is why we serve so many Spindle Rebuild Industries that operate in harsh environments; keeping the “guts” of the machine clean is a constant battle.
Machine Crashes and Mishandling
It happens to the best of us—a programming error or a tool change glitch leads to a machine crash. The sudden impact can bend shafts, crack housings, or “brinell” the bearings (creating permanent indentations in the races). Even dropping a spindle during a move can damage precision components. These events usually require an immediate Precision Spindle Rebuild to restore the accuracy required for aerospace or defense work.
Excessive Vibration and Tooling Imbalance
If your tooling isn’t balanced, the spindle has to work much harder. This creates excessive vibration that wears out the motor and bearings. Over time, this vibration can lead to fatigue in the metal itself, eventually resulting in a complete breakdown.
The Professional Process to Rebuild Broken Spindles
When a spindle arrives at our facility, we don’t just “fix” it; we remanufacture it. This is a highly technical process designed to get the unit back to its original performance levels.
Teardown and Component Logging
The first step is a meticulous teardown. Every single nut, bolt, and spacer is logged into a database. We document the condition of every part, often taking photos to share with you so you can see exactly where the failure occurred. This transparency is vital for understanding if the failure was due to normal wear or an underlying machine issue.
Chemical Cleaning and Geometric Inspection
Once disassembled, parts are chemically cleaned to remove all traces of grease and contaminants. Then comes the “detective work.” We perform a geometric inspection using instruments capable of measuring down to half a micron (.0000019 inch). We check for:
- Parallelism and roundness
- Run-out on the shaft and taper
- Size tolerances on bearing journals
Micron-Level Tolerances
Industrial spindles rely on extreme precision. If a bearing seat is off by even a few microns, the spindle will run hot and fail quickly. During the Precision Spindle Rebuild phase, we identify which components can be salvaged and which need to be replaced with high-quality OEM parts.
Step-by-Step Guide to Rebuild Broken Spindles
Restoring an industrial manufacturing spindle to its former performance requires specialized machinery and a lot of patience. Here is how we handle the heavy lifting:
- Shaft Restoration and Cylindrical Grinding: If the shaft is scarred or out of round, we use cylindrical grinding to restore the surface. This ensures that the new bearings will fit perfectly.
- Taper Correction: The taper is where the tool meets the spindle. If this interface is worn, you lose accuracy. We perform precision grinding to ensure the tool sits exactly where it should.
- Dynamic Balancing: This is perhaps the most critical step. We balance the entire rotating assemblyincluding the drawbar systemto ISO1940 standards. Proper balancing prevents the vibration that causes early failure.
- Machining to OEM Specs: Every Machine Tool Spindle Rebuild must adhere to the original manufacturer’s specifications. We use specialized tools and fixtures to ensure every dimension is spot-on.
- Upgrades: While we are in there, we often recommend upgrades. For example, switching to hybrid ceramic bearings can allow for higher speeds and better heat resistance than standard steel bearings.
Quality Control Standards to Rebuild Broken Spindles
You can’t build a precision instrument in a dirty shop. Our assembly happens in a temperature-controlled clean room to prevent even a single speck of dust from entering the bearing cavity.
- Bearing Preload: We carefully set the preload on the bearings. Too tight, and they burn up; too loose, and the spindle lacks rigidity.
- 8-Hour Performance Testing: Every CNC Spindle Rebuild undergoes a rigorous break-in period. We run the spindle for at least 8 hours, gradually increasing the speed while monitoring temperature and vibration.
- Thermal Monitoring and Vibration Analysis: We use advanced sensors to ensure the spindle stays within safe thermal limits. Vibration analysis tells us if the balancing was successful and if the bearings are seated correctly.
- Run-out Verification: Before the spindle leaves, we use precision test bars to ensure the run-out is less than two microns. This guarantees that when you put it back in your machine, it will cut with extreme accuracy.
Cost-Benefit Analysis: Rebuilding vs. Replacement
Is it worth it to rebuild broken spindles, or should you just buy new? For most industrial applications, the answer is clear.
| Feature | Rebuilding | New Replacement |
|---|---|---|
| Cost | $1,000 – $10,000+ | $15,000 – $50,000+ |
| Lead Time | 6 – 8 Days | Up to 24 Weeks |
| Performance | Meets/Exceeds OEM Specs | OEM Standard |
| Lifespan | 10 – 15 Years (Maintained) | 10 – 15 Years |
| ROI | High (Less Downtime) | Lower (High Initial Cost) |
The Lead Time Factor
In modern manufacturing, time is the most expensive commodity. Waiting 24 weeks for a new spindle can effectively kill a small machine shop or stall a major aerospace project. A Spindle Rebuild or Replace decision usually comes down to the fact that we can get you back up and running in about a week.
Cost Savings
The cost to rebuild broken spindles typically ranges from $1,000 to $10,000 depending on the complexity and parts required (like gripper assemblies which can cost $1,200 to $3,200). Compared to the cost of a brand-new unit, you are looking at savings of 50% to 80%. This allows you to reinvest those funds into other areas of your business.
Lifespan and Reliability
A rebuilt spindle isn’t a “temporary fix.” When done correctly, it has the same 10 to 15-year life expectancy as a new unit. By following Machine Tool Spindle Rebuild best practices, you are essentially resetting the clock on your equipment.
Frequently Asked Questions about Industrial Spindle Rebuilding
How long does a rebuilt industrial spindle last?
Under normal operating conditions and with a solid preventative maintenance schedule, a rebuilt spindle should last between 10 to 15 years, or roughly 6,000 operational hours. The key to longevity is clean lubrication and avoiding excessive mechanical stress.
What is the typical turnaround time for a spindle rebuild?
Our standard turnaround is 6 to 8 business days once the quote is approved. We also offer emergency services that can provide a same-day quote and a 1 to 3-day turnaround to minimize your production losses.
Can a spindle with a crashed shaft be saved?
Yes! In many cases, a crashed shaft can be restored through precision grinding and plating. Even if the damage looks severe, our remanufacturing process can often bring it back to OEM specifications. However, if the shaft is fractured or the housing is warped beyond repair, we will be honest with you about the need for a replacement.
What industries do you serve?
We provide expert services to industrial manufacturing operations that rely on high-precision machining and production equipment. Any facility that depends on high-accuracy CNC Spindle Rebuild work can benefit from our expertise.
Conclusion
At MZI Precision, we understand that a broken spindle is more than just a mechanical failure—it is a disruption to your livelihood. That is why we are committed to providing the best Spindle Rebuilders service in the United States.
Whether you are in Huntington Beach, Los Angeles, or anywhere else in California, our team of Spindle Rebuild Specialists is ready to help. We don’t just replace bearings; we restore your machine’s heart to OEM specifications, ensuring you have the precision and reliability you need to stay competitive.
Don’t let a long lead time for a new part break your spirit. Choose the faster, more cost-effective path to precision.
Ready to get back to work? Contact MZI Precision for Expert Spindle Repair Services today and let us help you get your machines running at peak performance again. We also recommend checking out our Complete AC Motor Repair Guide for more tips on maintaining your industrial equipment.
