The Fast and the Furious: Advanced High Speed Spindle Systems

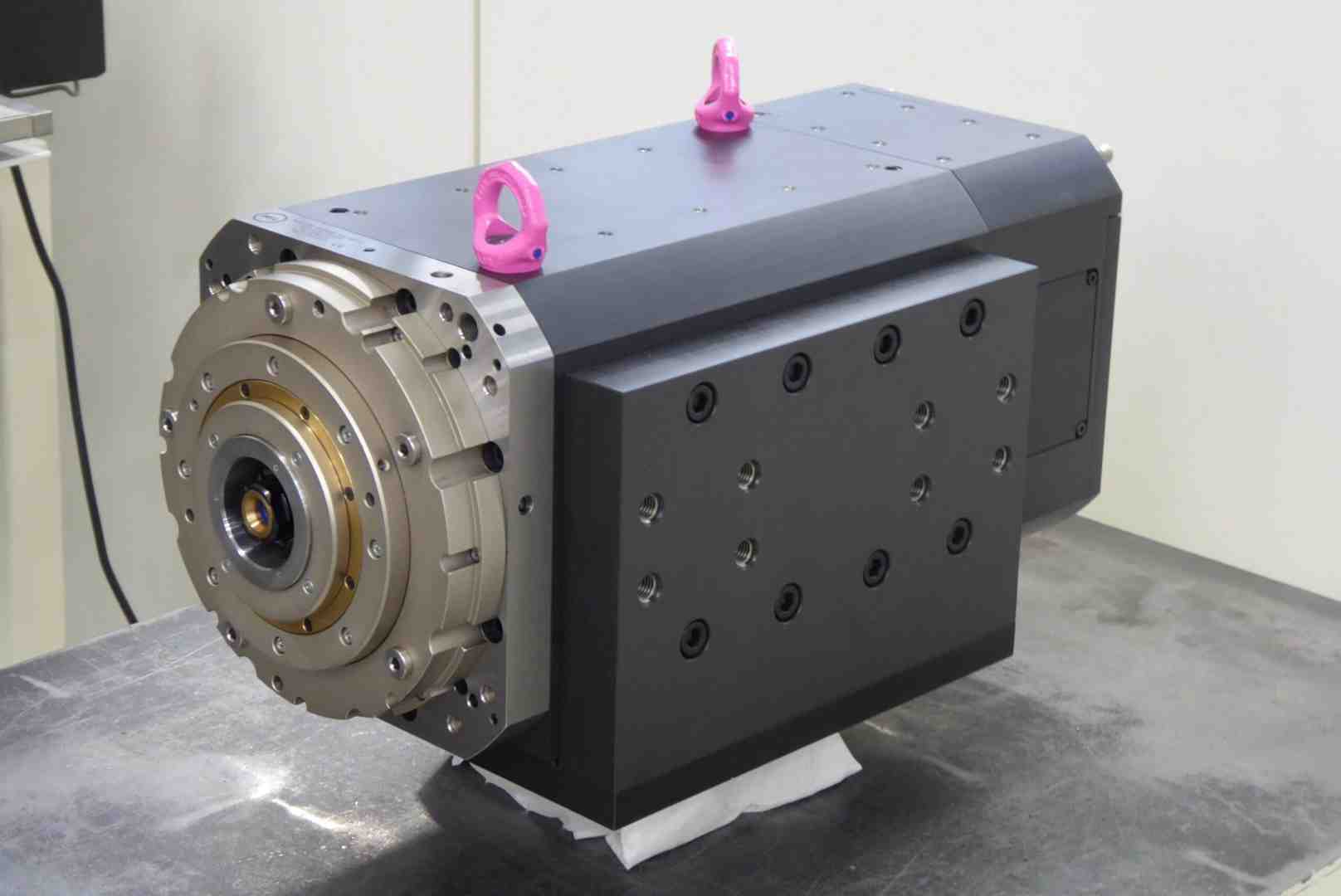

Why High-Speed Spindle Motors Are Redefining Precision Manufacturing
High-speed spindle motors are specialized rotating drive units used in industrial CNC machines — capable of reaching tens of thousands, or even hundreds of thousands, of RPM to enable faster cutting, finer surface finishes, and tighter tolerances than conventional spindles can achieve. According to the technical definition of high-speed machining, these systems are essential for maintaining the correct surface speeds for small-diameter tooling.
Here’s a quick breakdown of what sets them apart:
| Feature | Standard Spindle | High-Speed Spindle Motor |
|---|---|---|
| Typical speed range | 1,000 – 8,000 RPM | 20,000 – 250,000 RPM |
| Primary application | General machining | Precision micro-machining, grinding, milling |
| Bearing technology | Standard ball bearings | Hybrid ceramic or air bearings |
| Cooling method | Air or none | Water, oil-air, or sealing air |
| Tool interface | BT/ISO | HSK, ER collets, GMN standard |
| Power range | Varies | Up to 130 HP / 100 kW |
For manufacturers in demanding sectors like aerospace and defense, these aren’t optional upgrades — they’re essential infrastructure.
At speeds exceeding 100,000 RPM, even tiny inefficiencies in bearing design, thermal management, or balance become critical problems. A spindle running out of tolerance by just a single micron can mean a scrapped part, a broken micro-tool, or an unplanned production stoppage.
This guide covers everything you need to know: how high-speed spindle motors work, what cooling and bearing technologies matter most, which tool interfaces to use, and how to keep these precision systems running at peak performance.
Basic High-speed spindle motors vocab:
Engineering Excellence in High-speed spindle motors
When we talk about high-speed spindle motors, we aren’t just talking about a motor that “turns fast.” These are marvels of integrated engineering where the motor is often built directly into the spindle shaft. This “motor-spindle” or “built-in” design eliminates the need for belts or gears, which would simply disintegrate or create unbearable vibration at 60,000+ RPM.
The performance window for these units is staggering. Leading manufacturers offer small-diameter spindles that reach up to 170,000 RPM with power levels around 2.5 kW, while larger industrial units can provide massive power–up to 130 HP (100 kW)–while still maintaining speeds that would make a standard mill sweat.
Defining High-speed spindle motors
At their core, most modern high-speed spindle motors utilize asynchronous or synchronous AC motor technology. These motors are driven by frequency inverters (VFDs) that allow for stepless speed control. By adjusting the frequency (often reaching up to 1,333 Hz or higher), the operator can precisely dial in the RPM required for a specific micro-tool or material.
Unlike standard spindles that might rely on mechanical gear changes, these high-frequency systems offer a smooth power curve. This is vital for High Speed Cutting (HSC) and High Performance Cutting (HPC), where maintaining a constant surface footage is the difference between a perfect finish and a snapped end mill.
Power and Torque Dynamics
Understanding the power ratings of these motors is crucial for any shop foreman. You will often see two primary ratings:
- S1 Rating: This is the continuous power the motor can handle indefinitely without overheating. For example, a high-end grinding spindle might have an S1 rating of 420 W.
- S6-60% Rating: This represents the “peak” or intermittent power the motor can provide for short bursts (typically 6 minutes out of a 10-minute cycle). Some large-scale high-speed spindles can push up to 37 kW or 47 kW under these conditions.
Low-inertia designs are another hallmark of excellence here. By reducing the mass of the rotating components, these motors can accelerate to 24,000 RPM or 80,000 RPM in a heartbeat, significantly reducing cycle times in tapping and drilling operations.
Cooling and Bearing Technologies for Peak Performance
As speed increases, friction becomes the enemy. In a standard spindle, steel ball bearings are the norm. In a high-speed environment, those steel balls would expand due to heat, seize, and potentially cause a catastrophic failure.
To combat this, we utilize high precision spindle bearings featuring hybrid technology. These bearings use ceramic (silicon nitride) balls paired with steel races. Ceramic is lighter, harder, and has a much lower thermal expansion coefficient than steel, allowing for cooler operation at extreme velocities.
The Role of Air-Bearing Turbines in High-speed spindle motors
For the ultimate in precision, some high-speed spindle motors ditch physical bearings entirely in favor of air bearings. In these systems, the shaft literally floats on a thin film of pressurized air.
- Micron Accuracy: Because there is no physical contact, run-out is often kept within 1 um.
- Frictionless Rotation: No contact means no wear, leading to a much longer lifespan for the spindle internals.
- Ultra-Precision: These are the go-to for micro-diameter tools (under 1mm) where even the slightest vibration would break the tool. Speeds in these air-bearing turbine systems can reach 120,000 to 160,000 RPM with ease.
Thermal Management Systems
Heat is the byproduct of high-frequency electrical energy and mechanical rotation. Without sophisticated cooling, a high-speed spindle would quickly lose its tolerances.
- Water-Cooled Jackets: High-power spindles (5.5kW to 22kW and up) often use a liquid-cooled jacket. Water or a specialized coolant is circulated around the motor stator to whisk away heat.
- Air-Cooled Fans: For lighter-duty or more compact applications, electric fans (often 230V) provide constant airflow.
- Oil-Air Lubrication: This is a precision “micro-dose” system that injects a tiny drop of oil into a stream of compressed air, lubricating and cooling the bearings simultaneously.
- Sealing Air: To protect the delicate internals, “sealing air” creates a positive pressure environment inside the spindle, preventing dust, coolant, and metal chips from entering the bearing races.
Industrial Applications and Tooling Interfaces
Where do we actually use these screaming machines? High-speed spindle motors are the workhorses of modern precision industries. Whether it’s high precision grinding or micro-drilling PCB boards, these motors provide the necessary surface feet per minute (SFM) that small tools require to cut effectively.
Tool Holding Standards
You can’t just stick a standard drill chuck on a motor spinning at 80,000 RPM. The centrifugal forces would be dangerous. Instead, specialized interfaces are used:
- HSK-C and HSK-F: These are the gold standard for high speed. The HSK interface, defined by ISO 12164 standards, features a hollow shank that actually grips tighter as the spindle spins faster, thanks to centrifugal force acting on the internal clamping mechanism.
- ER Collets (ER11, ER20, ER25): Common in smaller CNC routers and engraving machines, these provide excellent concentricity and grip for small-diameter shanks.
- BT30/BT40: Often used in “Plug-N-Go” retrofit systems where a high-speed spindle is mounted into the main spindle of a larger machining center.
Industry-Specific Use Cases
We see these systems deployed across the most demanding sectors in the United States, particularly in our service areas like Huntington Beach and Los Angeles.
- Aerospace & Defense: Machining complex aluminum airframe components or specialized alloys for military hardware requires the high metal removal rates that only high-speed spindles can provide.
- Medical Devices: Creating tiny implants and surgical tools requires micro-milling and engraving with sub-micron precision.
- Die and Mold: Achieving a “mirror finish” on a hardened steel mold directly off the machine saves hundreds of hours of manual polishing. High-speed finishing with small ball-nose end mills is the only way to achieve this.
Maximizing Longevity: Maintenance and Precision Balancing
A high-speed spindle is a finely tuned instrument. If a guitar string is out of tune, it sounds bad; if a spindle is out of balance, it destroys itself. Vibration is the leading cause of premature bearing failure.
At MZI Precision, we emphasize that high-speed spindle balancing is not a “one and done” task. Even changing a tool holder can slightly shift the center of mass. Precision balancing ensures that the centrifugal forces are distributed evenly, protecting the hybrid bearings and ensuring a smooth surface finish on your parts.
Routine Maintenance Protocols
To keep your high-speed spindle motors in peak condition, we recommend a strict protocol:
- Lubrication Cycles: Whether it’s grease-for-life or an oil-air system, ensuring the lubricant is clean and flowing is paramount.
- Filter Inspections: In pneumatic or air-cooled systems, a clogged filter leads to overheating in minutes.
- Seal Integrity: Regularly check the air purge/sealing air pressure. If this fails, contaminants will migrate into the bearings.
- Run-out Checks: Periodically measure the run-out at the spindle nose. Anything exceeding 0.0002″ (5 um) usually indicates it’s time for a high-speed spindle repair.
Troubleshooting Common Failures
If your spindle starts making a high-pitched whine (different from its usual “scream”) or if you notice the housing is too hot to touch, stop the machine immediately.
- Thermal Expansion: If the cooling system fails, the shaft can grow in length, causing the tool to cut deeper than intended or crashing the bearings.
- Electrical Faults: Frequency inverters can sometimes struggle with “noise” or grounding issues, leading to erratic RPM or torque loss.
- Bearing Wear: Even the best ceramic bearings have a lifespan. Increased vibration or “chatter” marks on the workpiece are the first signs that a rebuild is necessary.
For more detailed technical steps, check out our high-speed spindle balancing guide.
Frequently Asked Questions about High-Speed Spindles
What is the difference between air-cooled and water-cooled spindles?
Air-cooled spindles use an internal or external fan to move air over the motor. They are easier to install and maintain but are generally louder and less efficient at removing heat during heavy-duty, continuous cycles. Water-cooled spindles use a radiator and pump system to circulate liquid. They are much quieter, more compact for their power rating, and maintain a very stable temperature, which is essential for long-cycle precision work.
How does high-speed machining improve tool life?
It sounds counterintuitive, but spinning faster can actually make tools last longer. Small-diameter carbide tools are designed to operate at specific surface speeds. When run too slowly, they “rub” rather than “cut,” which generates heat and causes the edge to dull or chip. High-speed spindle motors allow these tools to operate in their “sweet spot,” resulting in cleaner chips and less stress on the tool.
Can I retrofit a standard CNC machine with a high-speed spindle?
Yes! Many shops use “Plug-N-Go” or “spindle-on-spindle” systems. You can mount a compact high-speed motor (like a Nakanishi or SycoTec style unit) directly into your existing CAT40 or BT40 spindle taper. This allows you to perform micro-machining or high-speed engraving on a machine that otherwise tops out at 8,000 RPM.
Conclusion
The transition to high-speed spindle motors represents a massive leap in productivity. By reducing cycle times–sometimes by as much as 6 to 10 times–and improving tool life, these systems pay for themselves quickly in high-volume industrial environments.
However, with great speed comes the need for great precision. These aren’t “set and forget” components. They require expert balancing, clean environments, and proactive maintenance to thrive. At MZI Precision, we specialize in the repair and rebuilding of these complex systems, serving the aerospace, defense, and medical manufacturing sectors across the United States from our California facilities.
Whether you are looking to squeeze more efficiency out of your current CNC setup or need a complete overhaul of a failed unit, we are here to help. For more information on how we can keep your shop running at top speed, explore our spindle repair services or contact us today for a consultation.
