Quick Answer:
– Purpose of a Spindle: Vital component in machinery for precision tasks.
– Key Issues: Wear and Tear, Bearing Failures.
– Needed for Repair: Specialized knowledge, proper tools, and precision parts.
– Outcome: Restored efficiency and extended machinery life.
Is your spindle letting you down just when precision and efficiency matter the most? You’re not alone. Spindles are the heart of many industrial machines, from CNC devices to lathes, playing a pivotal role in manufacturing processes across sectors, especially in aerospace. When they falter, the ripple effect on productivity and output quality can be significant.
Understanding the spindle’s importance is simple: without it, machines cannot achieve the high-precision work required. Whether it’s machining complex aerospace components or simply ensuring smooth operational flow, every element of a spindle must work perfectly. Unfortunately, given their crucial role and constant use, spindles are prone to various forms of damage, including wear and tear and bearing failures.
Fixing a spindle isn’t just about repairing a piece of machinery; it’s about restoring efficiency and extending the lifespan of expensive industrial equipment. For companies in the aerospace industry and beyond, downtime means lost revenue and potentially missed deadlines. That’s where knowing the steps to a proper repair makes all the difference.
Our guide will ensure you understand not just the “how” but the “why” of spindle repair, preparing you to make informed decisions that keep your operations running smoothly.
Understanding Spindle Damage
Understanding the root causes of spindle damage is essential before embarking on a repair journey. It’s like diagnosing a patient before prescribing treatment. The most common culprits behind spindle issues are bearing failure and general wear and tear. Let’s break these down a bit more.
Common issues
Spindle problems often start small but can lead to major headaches if not addressed. These issues include:
- Unusual noises, such as grinding or screeching, signaling bearing issues or other internal problems.
- Excessive vibration, which might indicate worn components or imbalance.
- Decreased performance, including slowdowns or reduced precision, potentially pointing to overheating or motor alignment issues.
- Temperature increase in the spindle motor, suggesting overload or cooling system failure.
- Leaks and contamination, which can introduce foreign substances, causing further damage.
These symptoms are your spindle’s way of crying out for help. Ignoring them can lead to more severe problems, including complete spindle failure.
Bearing Failure
Bearings are the heart of the spindle, allowing it to rotate freely with minimal friction. Over time, bearings can degrade due to:
- Overloading, which puts too much pressure on the bearings.
- Improper lubrication, leading to increased friction and heat.
- Contamination, such as dust or metal shavings, which can get inside the bearings and cause damage.
When bearings fail, the spindle cannot operate smoothly, leading to decreased accuracy and potentially stopping production altogether.
Wear and Tear
Like any mechanical component, spindles suffer from wear and tear. This natural degradation can be accelerated by:
- Improper use, such as pushing the spindle beyond its design limits.
- Lack of maintenance, failing to regularly inspect and service the spindle.
- Environmental factors, like exposure to corrosive substances or extreme temperatures.
Regular wear and tear are inevitable, but with proper care and maintenance, the lifespan of a spindle can be significantly extended.
Understanding these issues is the first step toward effective spindle repair. Recognizing the signs of damage and knowing when to seek professional help can save you time and money in the long run. At MZI Precision, we emphasize the importance of early intervention and use our expertise to diagnose and repair spindle issues before they evolve into bigger problems. By addressing the common causes of spindle damage, we help keep your operations running smoothly and efficiently.
Preparing for Spindle Repair
Before diving into the nuts and bolts of spindle repair, it’s crucial to lay a solid foundation. This means thorough inspection, detailed analysis, and gathering the right tools. Let’s break it down.
Inspection
First things first, it’s all about understanding what we’re dealing with. At MZI Precision, we start with a comprehensive visual inspection. We’re on the lookout for obvious signs of wear and tear, contamination, and any damage that might have contributed to the spindle’s woes. It’s akin to a detective examining a crime scene; every detail can offer clues about what went wrong.
Analysis
After the visual inspection comes the deep dive. This is where the real detective work happens. We use advanced diagnostic tools to scrutinize every inch of the spindle. We’re talking about checking for runout, measuring size for precision, and assessing the spindle’s flatness and squareness. This meticulous examination helps us pinpoint the exact cause of failure. It’s a bit like putting together a complex puzzle – every piece of data helps us see the bigger picture more clearly.
Tools Needed
Now, let’s talk tools. For a successful spindle repair, having the right tools at your disposal is non-negotiable. This isn’t a job for your average garage toolkit. We’re talking precision instruments – micrometers, gauges, and specialized tools designed specifically for spindle repair. Plus, a clean room environment is essential for the final assembly to prevent any contamination.
- Micrometers and gauges for precise measurements
- Specialty tools tailored for spindle repair tasks
- A clean room for assembly to ensure contamination-free results
Safety First. Before we even pick up a tool, safety protocols are paramount. Proper protective gear and a clear understanding of the machinery’s safety mechanisms are a must. This ensures that not only is the spindle repaired to the highest standards but also that our technicians are safe throughout the process.
Preparing for spindle repair is about doing your homework. It’s a blend of careful inspection, detailed analysis, and gearing up with the right tools for the job. At MZI Precision, we take pride in this meticulous preparation process. It sets the stage for a successful repair, ensuring we can get your spindle – and your operations – back up and running with minimal downtime.

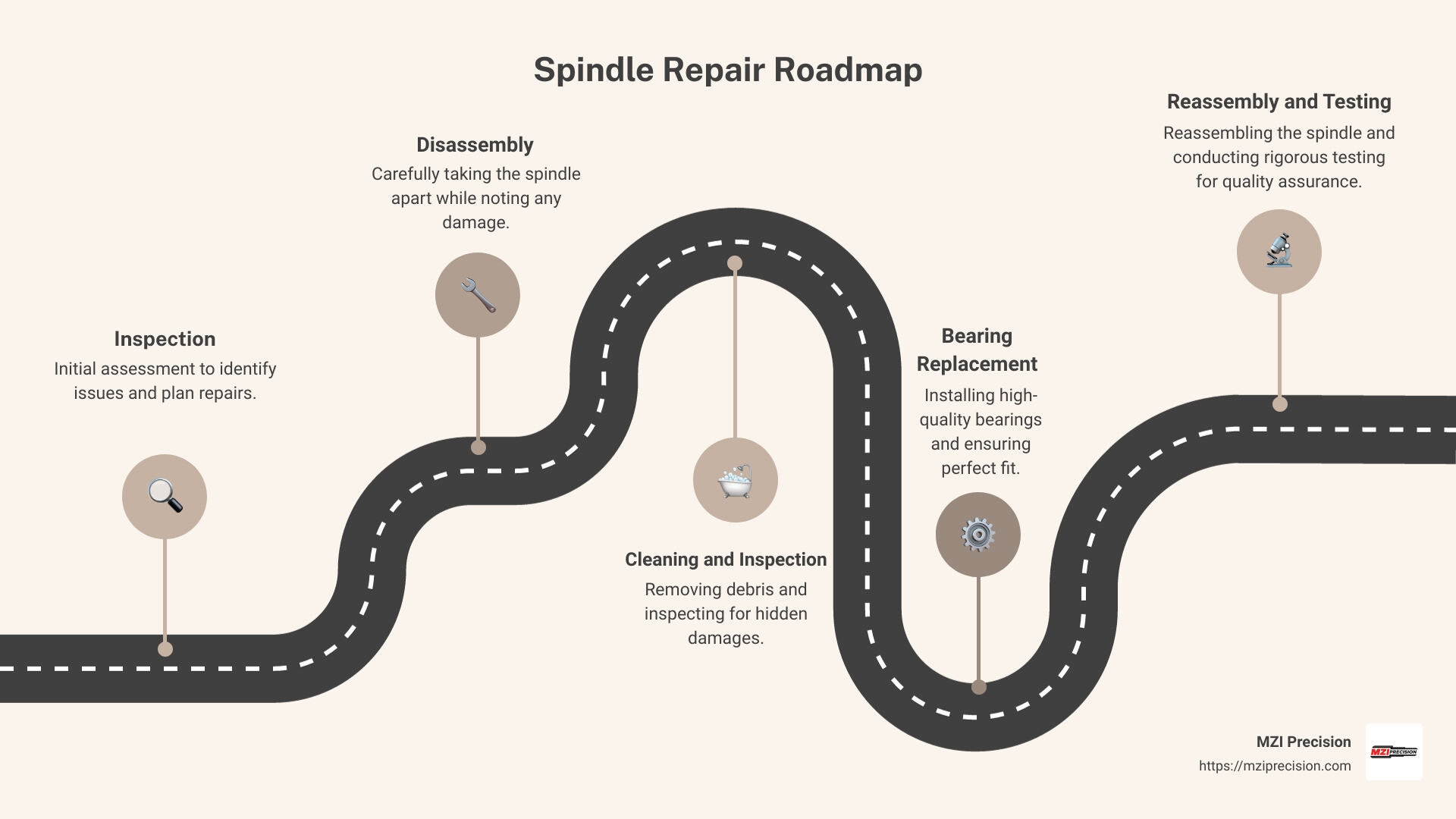

Step-by-Step Spindle Repair Process
Repairing a spindle is like performing surgery. It’s delicate, requires precision, and every step is crucial to the outcome. Here’s how we do it at MZI Precision, broken down into four key stages: Disassembly, Cleaning and Inspection, Bearing Replacement, and Reassembly and Testing.
Disassembly
Safety precautions and proper techniques are non-negotiable. We start by carefully disassembling the spindle unit. This step is about understanding how every piece fits together and ensuring that no additional damage occurs during the process. It’s a bit like dismantling a complex puzzle – each piece must be carefully removed and cataloged for reassembly.
Cleaning and Inspection
Once disassembled, each component undergoes a thorough cleaning to remove any debris, coolant, or contaminants that could impact performance. This stage is critical – imagine trying to find a small crack or wear in a part covered in grime; it’s nearly impossible. Post-cleaning, we inspect each part for signs of wear or damage. This meticulous inspection helps us catch issues that could lead to future failures.
Bearing Replacement
Bearings are often the heart of spindle issues. Choosing OEM parts is crucial for compatibility and performance. We opt for the best quality bearings, ensuring they match the specifications of your spindle to a tee. Installation is done with precision, ensuring no damage to the new bearings or spindle components. It’s a bit like performing a heart transplant – the fit and placement have to be perfect.
Reassembly and Testing
Reassembly is the reverse of disassembly, but with an added layer of complexity. Each component must be placed back with precision alignment. We follow stringent quality control measures throughout this process. Once the spindle is reassembled, it undergoes extensive testing. We check for vibration, temperature, and speed, ensuring everything operates within the specified limits. This step is akin to the first test drive after a car has been repaired – it tells us if everything has been fixed correctly.
This process is not just about fixing what’s broken. It’s about restoring your spindle to its optimal condition, ensuring it performs as well as (or better than) before. At MZI Precision, we’re committed to delivering this level of service, knowing the pivotal role spindles play in your operations.
Advanced Spindle Repair Techniques
When it comes to advanced spindle repair techniques, understanding the details and intricacies involved is crucial for ensuring the longevity and performance of your equipment. Let’s dive into the specifics of balancing, high-speed spindles, and arbor and moulder spindle repair.
Balancing
Importance
The balance of a spindle affects not only its performance but also the life of the spindle itself and the quality of work it produces. An unbalanced spindle can cause vibration, leading to premature wear, increased energy consumption, and poor quality finishes on machined parts.
Methods
Balancing is a precise process that involves adjusting the weight distribution of the spindle. This can be achieved through the addition of balancing weights or by removing material from specific areas. At MZI Precision, we use state-of-the-art computer-controlled balancing equipment to ensure that each rotating component, as well as the assembled unit, is perfectly balanced. This attention to detail is critical for high-speed operations and helps in extending the lifespan of the spindle.
High-Speed Spindles
Special Considerations
High-speed spindles require special attention due to the extreme forces they encounter during operation. The bearings, for instance, are subjected to significant stress and must be carefully selected and installed to ensure they can handle the speeds involved.
Performance Testing
After repair, high-speed spindles undergo rigorous performance testing to verify that they meet the required specifications. This includes testing for speed, vibration, and temperature to ensure that the spindle will perform optimally under the demanding conditions it will face in service.
Arbor and Moulder Spindle Repair
Specific Challenges
Arbor and moulder spindles present unique challenges due to their specific applications in woodworking. These spindles often encounter a range of materials and conditions that can lead to unique wear patterns and damage.
Repair vs. Replace
Deciding whether to repair or replace an arbor or moulder spindle depends on several factors, including the extent of the damage and the cost implications. At MZI Precision, we thoroughly inspect each spindle to determine the most cost-effective and efficient course of action. Our goal is to ensure that your spindle returns to you in an optimal condition, whether through repair or replacement.
In conclusion, advanced spindle repair techniques such as balancing, handling high-speed spindles, and addressing the specific needs of arbor and moulder spindles require a deep understanding of the mechanics involved and a commitment to quality. At MZI Precision, we leverage our expertise and state-of-the-art technology to address these challenges, ensuring your spindles are repaired to meet or exceed OEM standards. Our approach not only saves you time and money but also enhances the performance and reliability of your equipment.
Cost and Time Considerations
When it comes to repair spindle work, understanding the cost and time involved is crucial for planning and decision-making. Let’s break this down into simple terms.
Repair vs. Replacement
First, it’s important to ask: Should you repair or replace your spindle?
Repairing a spindle can be significantly more cost-effective than replacing it. Our experience at MZI Precision shows that, on average, the cost to repair a spindle is between 30%-45% of the price of a new OEM spindle. This makes repairing a practical and cost-efficient option, especially when considering the high quality of repairs we provide, which can often extend the spindle’s life beyond its original expectancy.
On the other hand, replacement is sometimes the only option, especially if the spindle is damaged beyond repair. While this is a more expensive route, it may be necessary to ensure your machinery operates at its best.
Cost Range
The cost of spindle repair can vary widely based on the extent of damage and the specific spindle model. For example, repairing a burned stator can range from $400 to $4,000, while replacing gripper assemblies might cost between $1,200 and $3,200. It’s also worth noting that high-quality, durable replacement parts may cost more upfront but can save money in the long run by extending the spindle’s lifespan.
At MZI Precision, we believe in transparency. We provide detailed quotes based on our failure analysis findings, ensuring you won’t face any hidden costs.
Lead times
Time is another critical factor. The lead time for delivering a new replacement spindle can be as long as 32 weeks, potentially bringing your production to a standstill. In contrast, rebuilding your machine tool spindle with us can usually be completed in less than two weeks, and in some cases, even a few days. This rapid turnaround time minimizes disruption to your operations and helps maintain your production schedules.
In conclusion, when considering the repair or replacement of a spindle, both cost and time are significant factors. At MZI Precision, we pride ourselves on offering cost-effective and timely solutions that keep your operations running smoothly. Our commitment to quality ensures that repairing your spindle with us is not just a quick fix but a strategic decision that benefits your machinery’s performance and your bottom line.
Frequently Asked Questions about Spindle Repair
In our journey to keep your machinery running at its best, we often encounter questions about spindle repair. Here, we’ll address some of the most common inquiries to help you understand the process and make informed decisions.
Can a spindle be repaired?
Absolutely. The ability to repair a spindle largely depends on the extent of the damage and the specific issues it faces. At MZI Precision, our technicians are adept at handling a range of repairs, from simple bearing replacements to more complex issues like correcting imbalances and repairing damages caused by wear or improper use. Utilizing OEM parts and adhering to rigorous standards, we ensure that your repaired spindle meets or surpasses its original performance specifications. Learn more about our repair services.
How much does it cost to replace a spindle?
It’s an investment. Replacing a spindle can be a significant expense, typically ranging between $14,000 to $24,000. This cost varies based on the spindle’s complexity, the machinery it’s used in, and the urgency of the replacement. Replacement lead times can extend up to 32 weeks, depending on the availability of parts. At MZI Precision, we strive to explore all repair options with you before considering replacement, aiming to provide a more cost-effective solution. Understanding the costs.
What is the process of spindle repair?
It’s thorough and detailed. Our spindle repair process is designed to restore your spindle to peak condition. The process includes:
- Inspection: A comprehensive examination to diagnose issues.
- Analysis: Identifying the root causes of the problem.
- Repair: Performing necessary repairs, which may involve part replacements, imbalance corrections, or machining damaged components.
- Balancing: Ensuring smooth operation by eliminating vibrations.
- Assembly: Precise reassembly to align all components correctly.
- Testing: Rigorous testing under operational conditions to confirm repair success.
- Quality Control: Continuous quality checks throughout the repair process.
Our state-of-the-art facility is equipped to manage every phase of the repair process, ensuring your spindle returns to you in optimal condition. Discover our repair process.
At MZI Precision, we understand the crucial role spindles play in your operations. Our commitment to excellence, combined with our extensive expertise, ensures that your spindle repairs are handled with the utmost care and precision, keeping your machinery operational and efficient.
Conclusion
In wrapping up, it’s clear that spindles are not just another component of your machinery; they are the heart of it. Their health and functionality can significantly impact your production line’s efficiency, precision, and reliability. That’s why understanding common spindle issues, knowing when to opt for professional repair, and choosing the right partner for this crucial service is paramount.
The journey from recognizing spindle damage to completing a repair involves a detailed process that requires expertise, precision equipment, and a commitment to quality. From initial inspection and disassembly through cleaning, bearing replacement, and final reassembly and testing, each step must be executed with precision to ensure the spindle not only returns to service but does so in a condition that meets or exceeds its original performance specifications.
