From Small to Super-Sized: How Multi-Spindle Screw Machines Get It Done

How does a multi spindle screw machine do large parts: 5x Ultimate

UNDERSTANDING MULTI-SPINDLE SCREW MACHINE CAPABILITIES

HOW DOES A MULTI SPINDLE SCREW MACHINE DO LARGE PARTS? Multi-spindle screw machines handle larger parts via scaled-up designs with increased rigidity, high-torque spindles, larger bar stock capacity (up to 51mm for bar work and 130mm for chucking), and robust construction that maintains precision with heavy materials and demanding alloys.

QUICK ANSWER – MULTI-SPINDLE MACHINES FOR LARGE PARTS:

  • Increased Capacity: Machines accommodate bar stock up to 51mm (2″) diameter and chucking up to 130mm (approximately 5″)
  • Improved Rigidity: Superior structural design supports the forces required for machining larger, heavier workpieces
  • High-Torque Spindles: Powerful spindles deliver the force needed to cut through tough alloys and larger material cross-sections
  • Advanced Controls: Modern CNC systems (like the Davenport Hybrid Machine) provide the precision and flexibility for complex large-part geometries
  • Multiple Operations: Simultaneous machining at 5-8 spindle stations divides complex operations across the drum rotation

When most people think of screw machines, they picture tiny fasteners and small precision components. That’s not the whole story.

Multi-spindle screw machines have evolved far beyond making screws. Today’s machines combine the efficiency of simultaneous multi-spindle operation with the robust construction needed for larger, more complex industrial components. They’re producing parts for aerospace, defense, and industrial equipment—components that demand both size and precision.

The key is understanding that these machines don’t just scale up—they’re engineered differently. With production levels 4 to 6 times higher than single-spindle machines and cycle times as short as 4 to 15 seconds, they’ve become essential for manufacturers who need both volume and versatility.

THE FUNDAMENTALS OF MULTI-SPINDLE MACHINING

Imagine a busy kitchen where a single chef prepares each dish from start to finish. Now picture that same kitchen with multiple chefs, each handling a specific part of several dishes simultaneously. That’s the difference between a single-spindle lathe and a multi-spindle screw machine.

A multi-spindle screw machine, also known as an automatic lathe machine, is fundamentally a type of lathe that features more than one working spindle. Unlike its single-spindle counterpart, which processes one workpiece at a time, a multi-spindle machine is designed for high-volume manufacturing. This sophisticated setup allows it to produce multiple workpieces concurrently, dramatically increasing output.

The evolution of automatic lathes transformed manufacturing. Originally, these machines were designed to efficiently produce basic fasteners like screws. However, modern multi-spindle machines have advanced to create custom precision parts of varying complexities and sizes. They achieve production levels that are often 4 to 6 times higher than single-spindle machines, making them indispensable for mass production. You can learn more about the history and mechanics of these incredible machines by exploring An overview of automatic lathes.

ANATOMY OF A MULTI-SPINDLE MACHINE

To understand how does a multi spindle screw machine do large parts, we must look at its components. These machines are engineered for relentless, high-speed production, with key components working in harmony for incredible efficiency:

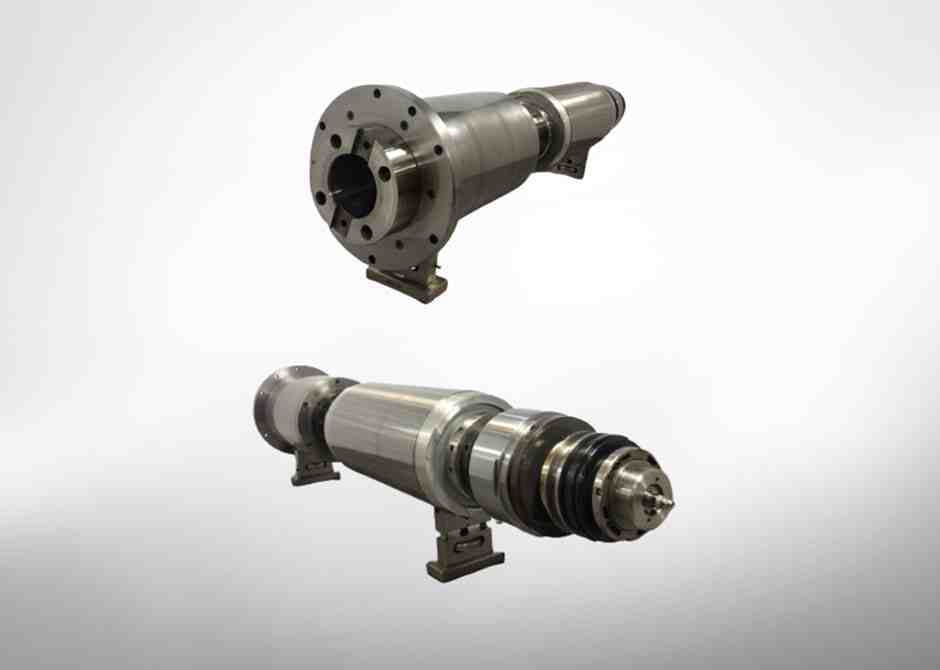

  • Spindles: At the heart of the machine are the multiple spindles, typically ranging from 5 to 8, though some can have up to 9. Each spindle holds an individual workpiece, usually a bar of raw material.
  • Revolving Drum: These spindles are mounted within a precision-machined revolving drum. This drum indexes, or rotates, to move each spindle to various working positions around the machine. Each rotation of the drum brings a new, completed part.
  • Tooling Stations: Corresponding to each spindle position, there are multiple tooling stations. These stations house the cutting tools that perform various operations on the workpiece as it rotates through.
  • Cross-Slides and End-Slides: Each non-cutoff station on multi-spindle machines typically features both cross-working and axial working capabilities. Cross-slides allow tools to move perpendicular to the workpiece, performing operations like turning, forming, and shaving. End-slides allow tools to move parallel to the workpiece, performing operations like drilling, boring, and threading.
  • Bar Feeder: For continuous operation, a bar feeder automatically supplies raw bar stock to each spindle. This ensures uninterrupted production and contributes to the machine’s high efficiency.
  • Control Systems: While traditionally cam-driven for precise mechanical control, modern multi-spindle machines increasingly incorporate advanced CNC (Computer Numerical Control) systems. Machines like the Davenport Hybrid Machine leverage CNC controls for superior rigidity and the ability to tackle tougher alloys and more demanding manufacturing challenges, offering greater flexibility and precision.

THE “DIVIDE AND CONQUER” PRINCIPLE OF MULTI-SPINDLE MACHINING

The secret sauce behind the multi-spindle screw machine’s phenomenal speed and efficiency lies in its “divide and conquer” approach. Instead of one tool performing all operations sequentially on a single part, these machines split the entire manufacturing process into smaller, manageable steps.

Here’s how this principle works:

  • Splitting Operations: The various turning operations—such as screwing, drilling, boring, turning, shaving, forming, reaming, and threading—are divided among the multiple spindles. Each spindle position is assigned a specific set of tasks.
  • Simultaneous Machining: As the revolving drum indexes, each workpiece moves from one station to the next. At each station, different tools simultaneously work on the part. This means that at any given moment, multiple operations are being performed on multiple parts in parallel.
  • Indexing Process: The revolving drum rotates, indexing each spindle to the next working position. A completed workpiece is ejected with each index of the machine’s revolving head. This unique indexing system means that while one part is being cut off and ejected, other parts are simultaneously undergoing various stages of machining.
  • Cycle Time Reduction: This simultaneous operation drastically reduces the overall cycle time per part. Instead of waiting for one operation to finish before the next begins, several operations are happening at once. This leads to incredibly fast cycle times, often between 4 and 15 seconds per part.
  • One Part Per Index: The ultimate goal is that with each index of the drum, a fully finished part is produced. This continuous flow of completed components is why multi-spindle machines are unparalleled for high-volume production.
  • Efficiency Principle: This overlapping of machining processes maximizes the machine’s utilization and minimizes idle time, resulting in a highly efficient production method. It’s a true symphony of synchronized machining, all working towards the rapid creation of precision parts.

HOW DOES A MULTI-SPINDLE SCREW MACHINE DO LARGE PARTS?

The question of how does a multi spindle screw machine do large parts often surprises those who associate them only with small, intricate components. While they excel at tiny parts, modern multi-spindle machines are engineered to handle substantial workpieces, thanks to advancements in design and capability.

It’s not just about making the machine bigger; it’s about a scaled-up design that incorporates robust construction, increased rigidity, and high-torque capacity spindles. These features allow the machines to process heavier materials and larger bar stock while maintaining the precision and speed they are known for. It’s a testament to their versatility that they’re no longer just for small parts, but can tackle significant industrial components.

UNDERSTANDING CAPACITY: BAR STOCK SIZE AND SPINDLE COUNT

When we talk about handling larger parts, capacity is key. Multi-spindle screw machines are built to accommodate impressive material dimensions:

  • Bar Stock Diameter: Our multi-spindle machines, for instance, can process bar stock sizes up to 51mm (2”) in diameter. Other models, like the Schutte S51PC, also boast a round bar capacity of ø 51 mm. This allows for the production of parts that are far from “small.”
  • Chucking Capacity: For parts that require secondary operations or are not fed directly from bar stock, multi-spindle machines can use chucking. Some models, such as the SC7-46 and SC9-46, allow for chucking up to a diameter of 130 mm (approximately 5.1 inches). The Davenport Chucker, designed for medium- and high-volume secondary operations, handles parts up to 2.25-in diameter.
  • Part Length Capacity: Beyond diameter, length is also a factor. Our multi-spindle machining facility can fabricate parts measuring up to 7″ in length.
  • Spindle Configurations: The number of spindles directly impacts the machine’s ability to divide operations and thus its overall efficiency. Common configurations include machines with 5, 6, or 8 spindles. The SC9-46, for example, is a 9-spindle platform, offering even greater operational segmentation. Each spindle configuration is chosen based on the complexity and volume requirements of the parts being manufactured.
  • Machine Footprint: While accommodating larger parts, the efficiency of multi-spindle machines means they can produce significant output within a relatively optimized footprint compared to the numerous single-spindle machines that would be required to match their throughput.

HOW THE DESIGN ENABLES MACHINING OF LARGER PARTS

The ability of multi-spindle screw machines to tackle larger components isn’t a happy accident; it’s the result of intentional engineering:

  • Robust Construction: These machines are built like tanks. Their heavy-duty frames and robust construction are designed to withstand the forces generated when machining larger, heavier workpieces and tougher materials. This inherent stability is crucial for maintaining precision.
  • Superior Machine Rigidity: Rigidity is paramount for accuracy, especially with larger parts. Modern multi-spindle machines, such as the Davenport Hybrid, feature superior rigidity. This structural integrity minimizes vibration and deflection, ensuring consistent quality even under demanding cutting conditions.
  • High-Power Spindles: To cut through larger cross-sections and harder materials, multi-spindle machines are equipped with high-power spindles. These spindles deliver the necessary torque and speed to efficiently remove material without compromising the tool or workpiece. The development of modern tools continually focuses on speed and precision, and the design of these spindles is critical. The importance of spindle design for speed and precision cannot be overstated in achieving reliable outcomes.
  • Advanced CNC Controls: While traditional multi-spindles were cam-driven, the integration of advanced CNC controls has revolutionized their capabilities. CNC systems offer unparalleled precision, flexibility, and the ability to handle complex geometries with ease. For larger parts, this means fine-tuning cutting parameters for optimal material removal and surface finish.
  • Handling Tougher Alloys: The combination of rigidity, power, and precise control allows these machines to confidently machine tough alloys and exotic metals that would challenge less robust equipment. This expands their application range significantly, making them suitable for high-demand industrial sectors.

A SYMPHONY OF OPERATIONS: WHAT MULTI-SPINDLE MACHINES CAN DO

The versatility of multi-spindle screw machines allows them to perform a vast array of operations, making them capable of fully machining complex parts in a single setup. This “symphony” of simultaneous operations is key to their efficiency, whether for small or large components.

Here’s a list of primary operations they can perform:

  • Turning: Shaping the outer diameter of the workpiece.
  • Drilling: Creating holes in the material.
  • Boring: Enlarging existing holes to precise dimensions.
  • Threading: Creating screw threads, either internal or external.
  • Milling: Creating flat surfaces, slots, or complex contours. This includes cross-milling and keyway milling.
  • Broaching: Creating non-round shapes, such as keyways or splines.
  • Cross-Drilling: Drilling holes perpendicular to the main axis of the workpiece.
  • Reaming: Finishing holes to a very precise diameter and smooth surface.
  • Shaving: A fine turning operation for extremely precise diameters and surface finishes.
  • Forming: Shaping the workpiece using a form tool that matches the desired profile.
  • Tapping: Creating internal threads using a tap.
  • Grooving: Cutting grooves into the workpiece, either internal or external.
  • Gear Hobbing: Cutting gear teeth.
  • Back-working: Operations performed on the cut-off end of the part, often using a secondary spindle.
  • Burnishing: Smoothing and hardening a surface by rolling a hard tool over it.
  • Stamping: Creating marks or features by pressing a die onto the surface.
  • Swaging: Reducing or changing the cross-section of a workpiece by hammering or pressing.
  • Flat Generation: Creating flat surfaces on a cylindrical part.
  • Thread Rolling: Forming threads by rolling the workpiece between dies, rather than cutting.
  • Chamfering: Beveling an edge.
  • Polygon Turning: Creating polygonal shapes on the outside of a part.
  • Off-center Drilling: Drilling holes that are not on the center axis.

With these extensive capabilities, modern multi-spindle machines, especially those with CNC controls, can handle highly complex geometries, often eliminating the need for secondary operations and streamlining the production process significantly.

THE CORE ADVANTAGES FOR HIGH-VOLUME PRODUCTION

For industrial manufacturers aiming for peak output and cost efficiency, multi-spindle screw machines are a game-changer. Their design inherently offers a suite of advantages that are hard to match with other machining methods, particularly for high-volume production of both small and large parts.

SPEED AND EFFICIENCY

The most striking benefit is undoubtedly the sheer speed. By performing multiple operations simultaneously across several spindles, these machines drastically reduce the time it takes to produce each part. We’re talking typical cycle times of 4 to 15 seconds per part. This means production levels can be 4 to 6 times higher than what a single-spindle machine can achieve. This efficiency translates directly into increased throughput and faster lead times for our clients.

COST-EFFECTIVENESS

When annual production volumes exceed 50,000 pieces, multi-spindle screw machines become an incredibly cost-effective option. The ability to complete parts in a single setup, with minimal human intervention, significantly reduces labor costs. The economies of scale achieved mean that the cost per part decreases substantially as production runs increase, making them ideal for long-term, high-volume contracts.

PRECISION AND CONSISTENCY

Despite their speed, these machines do not compromise on precision. They are engineered to hold tight tolerances and deliver consistent quality across thousands, even millions, of parts. This repeatability is critical for industries where component failure is not an option.

REDUCED LABOR COSTS

The high degree of automation inherent in multi-spindle machines means that a single operator can oversee the production of numerous parts. This dramatically reduces the labor input per part, contributing to overall cost savings.

SINGLE SETUP COMPLETION

Many complex parts can be fully machined in a single setup on a multi-spindle machine. This eliminates the need for transferring parts between different machines or for extensive secondary operations, which saves time, reduces handling errors, and improves overall efficiency.

BEST PRECISION AND TIGHT TOLERANCES

Precision is not just a buzzword; it’s a fundamental requirement in industrial manufacturing. Multi-spindle screw machines are renowned for their ability to deliver exceptional precision and maintain incredibly tight tolerances, which is crucial for the functionality and reliability of any manufactured component.

  • Holding Tight Tolerances: These machines are capable of holding tolerances as fine as ±.0005 inches (half a thousandth of an inch) and even .001 inches. This level of accuracy is achieved through robust machine construction, superior spindle design, and precise control systems.
  • Surface Finish Quality: The stability and precision of multi-spindle operations also contribute to an excellent surface finish quality, reducing the need for post-machining finishing processes.
  • Repeatability: For high-volume production, consistency across every single part is paramount. Multi-spindle machines excel at repeatability, ensuring that the first part off the line is virtually identical to the thousandth. This is vital for interchangeable parts and assembly processes.
  • Quality Control Process: To ensure these exacting standards are met, rigorous quality control processes are integrated throughout the manufacturing cycle. From initial design to final inspection, every stage is monitored to ensure parts meet precise specifications.
  • Reduced Part Handling: Because multi-spindle machines can complete numerous operations in a single setup, the need for manual part handling is significantly reduced. This minimizes the risk of human error or damage, further contributing to overall precision and consistency.

LIMITATIONS AND CONSIDERATIONS

While multi-spindle screw machines offer remarkable benefits, they also come with specific considerations that make them suitable for particular types of production:

  • Higher Initial Investment: The advanced technology, robust construction, and complex engineering of multi-spindle machines mean they represent a significant upfront capital investment compared to single-spindle alternatives.
  • Longer Setup Times: Setting up a multi-spindle machine for a new part can be a complex and time-consuming process. Programming multiple tools, optimizing operations across several spindles, and fine-tuning for precision requires expertise and dedicated time. This makes them less ideal for very small batch runs.
  • Best for High-Volume Runs: The cost-effectiveness of multi-spindle machines truly shines in high-volume production. They are generally considered a viable option when annual production volumes exceed 50,000 pieces, as the initial setup costs are amortized over a larger number of parts.
  • Part Complexity Limits: While capable of intricate operations, there are limits to the geometric complexity that can be achieved in a single setup. Extremely complex parts might still require specialized secondary operations or alternative machining methods.
  • Not Ideal for Prototyping: Due to the extensive setup time and cost, multi-spindle machines are typically not used for prototyping or very low-volume runs where flexibility and quick changeovers are prioritized.
  • Secondary Operation Needs: Multi-spindle screw machines are best suited for standard parts that do not require extensive secondary operations. While they can perform many operations, certain post-machining processes might still be necessary depending on the part’s final requirements.

APPLICATIONS AND MATERIAL CAPABILITIES

Multi-spindle screw machines are workhorses across a spectrum of industrial sectors, prized for their ability to transform raw materials into precision components. Their versatility extends not only to the types of operations they can perform but also to the diverse range of materials they can process, including those required for large, heavy-duty parts.

INDUSTRIES BENEFITING FROM MULTI-SPINDLE POWER

The high-volume, high-precision capabilities of multi-spindle screw machines make them indispensable in several key industries:

  • Aerospace Components: For critical components in aircraft manufacturing, where precision, material integrity, and high volumes are often required for fasteners, hydraulic fittings, and structural elements.
  • Defense Manufacturing: Producing robust and reliable parts for military equipment, often from tough alloys that demand high-strength machining.
  • Industrial Equipment: Manufacturing components for heavy machinery, pumps, valves, and other industrial applications where durability and consistent performance are essential.
  • Energy Sector Parts: Creating parts for power generation, oil and gas, and renewable energy systems that require high-strength materials and tight tolerances.
  • High-Volume Fittings and Connectors: Producing large quantities of standardized or custom fittings and connectors used across various industrial applications.

HOW A MULTI-SPINDLE SCREW MACHINE HANDLES LARGE PARTS MADE FROM DIVERSE MATERIALS

The robust design of multi-spindle machines, coupled with high-power spindles and advanced controls, allows them to handle a wide range of materials, including those typically used for larger, more demanding parts:

MATERIAL TYPE CHARACTERISTICS & APPLICATIONS FOR LARGE PARTS
Aluminum Lightweight, good strength-to-weight ratio, corrosion-resistant. Used for structural components where weight is a concern.
Stainless Steel Excellent corrosion resistance, high strength, and durability. Ideal for parts exposed to harsh environments or requiring hygienic properties.
Carbon Steel Versatile and cost-effective, offers good strength and hardness. Commonly used for general industrial components and structural parts.
Brass Excellent machinability, good electrical conductivity, corrosion-resistant. Used for connectors, valves, and fittings.
Copper High electrical and thermal conductivity, corrosion-resistant. Used for electrical components and heat exchangers.
Exotic Metals Materials like titanium alloys or other specialty alloys offer superior strength, heat resistance, or corrosion resistance for extreme applications.
Tough Alloys Modern machines, particularly those with CNC capabilities like the Davenport Hybrid, are designed to tackle the toughest alloys, ensuring they can meet stringent manufacturing demands for heavy-duty parts.

The ability to switch between these materials, often with minimal retooling, underscores the versatility of multi-spindle screw machines in meeting the diverse needs of modern industrial manufacturing.

FREQUENTLY ASKED QUESTIONS ABOUT MULTI-SPINDLE MACHINING

HOW FAST IS A MULTI-SPINDLE SCREW MACHINE?

Multi-spindle screw machines are champions of speed in the manufacturing world. Typical cycle times for producing a finished part range from an astonishing 4 to 15 seconds. This incredible speed is a direct result of their “divide and conquer” principle, where multiple operations occur simultaneously on different workpieces.

Several factors can influence the exact speed:

  • Part Complexity: Simpler parts with fewer operations will naturally have shorter cycle times.
  • Material Type: Harder materials require slower cutting speeds and feeds, which can slightly increase cycle time.
  • Machine Model: Different machine models and manufacturers (e.g., Davenport, Wickman, Schutte) have varying maximum speeds and indexing capabilities.

ARE MULTI-SPINDLE MACHINES BETTER THAN SINGLE-SPINDLE LATHES?

It’s not a matter of one being inherently “better” but rather which is better suited for a specific production scenario:

  • Production Volume: For high-volume, mass production, multi-spindle machines are unequivocally superior. They can yield production levels 4 to 6 times higher than a single-spindle machine, making them the go-to choice when thousands or millions of identical parts are needed. Single-spindle lathes are better for low-to-medium volume production and smaller batch runs.
  • Part Complexity: Both can produce complex parts. However, multi-spindle machines can often complete complex parts in a single setup due to simultaneous operations, whereas a single-spindle machine would require sequential operations, taking much longer.
  • Cost Per Part: For high volumes, the cost per part on a multi-spindle machine is significantly lower due to reduced cycle times and automation. For low volumes, the higher initial investment and setup time of a multi-spindle machine make the single-spindle lathe more economical.
  • Flexibility: Single-spindle lathes generally offer more flexibility for quick changeovers between different part designs and are better for prototyping or small, varied batches. Multi-spindle machines require more extensive setup for new parts but offer immense efficiency once configured.

If you need to produce a massive quantity of parts consistently and quickly, a multi-spindle machine is the powerhouse you need.

CAN MULTI-SPINDLE MACHINES PRODUCE COMPLEX PARTS?

Absolutely! Modern multi-spindle machines are fully capable of producing complex parts, often in a single setup. Their design and technological advancements enable this complexity through:

  • Simultaneous Operations: The ability to perform numerous operations concurrently (turning, drilling, boring, threading, milling, etc.) means intricate features can be added in stages without moving the part to another machine.
  • Multiple Tooling Stations: With up to 14 tools machining bars simultaneously, multi-spindle machines can incorporate a wide array of features, from simple holes to intricate contours.
  • Cross-Milling and Drilling: Many machines are equipped with cross-working capabilities, allowing tools to approach the workpiece from different angles to create features like cross-holes, slots, and flats.
  • Back-Working Capabilities: Secondary or pick-off spindles can perform operations on the cut-off end of the part, adding further complexity and eliminating the need for a separate machine.
  • CNC Flexibility for Complex Geometries: The integration of CNC controls in modern multi-spindle machines provides unprecedented flexibility. This allows for precise control over tool paths and movements, making it possible to create highly complex geometries with tight tolerances that were once only achievable on multi-axis CNC machining centers.

CONCLUSION: THE POWERHOUSE FOR MODERN MANUFACTURING

We’ve explored the intricate world of multi-spindle screw machines, uncovering how these industrial powerhouses are engineered to tackle far more than just small fasteners. From their fundamental “divide and conquer” principle, enabling simultaneous operations and lightning-fast cycle times, to their robust construction and advanced controls, we’ve seen how they efficiently produce both small and large parts.

The key to how does a multi spindle screw machine do large parts lies in their scaled-up design, offering increased bar stock and chucking capacities, superior rigidity, and high-torque spindles capable of processing tough alloys. This versatility, combined with their best speed, precision, and cost-effectiveness for high-volume runs, makes them indispensable in modern industrial manufacturing. For industries like aerospace, defense, industrial equipment, and energy, these machines are not just an option but a strategic advantage.

As manufacturing continues to evolve, the multi-spindle screw machine remains at the forefront, adapting to new materials and increasing demands for precision and efficiency. It stands as a testament to engineering ingenuity, continuing to shape industrial components.

For expert industrial manufacturing spindle repair and rebuilding services that keep your machines running at peak performance, trust the team at MZI Precision. We understand the critical role these components play in your production line.

Learn more about our spindle parts and services.
