Precision in Spindle Torque Measurement
Spindle torque measurement is crucial for ensuring the efficiency and reliability of your industrial manufacturing processes. This accurate measurement impacts product quality, tool life, and overall operational efficiency. Here, we present a brief overview to address the basic questions upfront.
Quick Facts on Spindle Torque Measurement:
– Direct Methods: Clamp-on torque cells and surface-mounted telemetry
– Indirect Methods: Electrical power meters and Prony brakes
– Applications: Aerospace, medical and dental, plastics, and more
Understanding spindle torque helps manufacturers maintain precision, reduce downtime, and ensure the longevity of their equipment. In industries like aerospace, where 10-nanometer precision is essential, accurate torque measurement can make a significant difference.
With spindle torque measurement, you can avoid unwanted vibrations, weak points in driveline systems, and other mechanical failures that compromise efficiency. Reliable and precise measurement is not just a technical requirement but a critical aspect of maintaining high standards in industrial manufacturing.
Relevant articles related to spindle torque measurement:
– CNC spindle repair
– spindle bearing assembly
Understanding Spindle Torque
Spindle torque is a key factor in the performance of your CNC machinery. It’s essential to understand what it is and why it matters.
Definition
Torque is the rotational equivalent of linear force. In simple terms, it’s a measure of how much force is acting on an object to cause it to rotate. When it comes to spindles, torque determines the spindle’s ability to turn the cutting tool or workpiece.
Unit of Measurement
Torque is typically measured in newton-meters (Nm) or inch-pounds (in-lb). These units quantify the rotational force applied at a certain distance from the pivot point (the spindle).
Newton-Meters
A newton-meter is the force of one newton applied at a distance of one meter from the pivot point. For example, if you apply a force of 10 newtons at a distance of 1 meter from the spindle, the torque would be 10 Nm.
Force and Moment Arm
Torque is calculated using the formula:
[ \text{Torque} = \text{Force} \times \text{Distance} ]
Where:
– Force (F) is the amount of push or pull applied.
– Distance (r) is the length of the moment arm, which is the distance from the pivot point to the point where the force is applied.
For instance, if you apply a force of 5 newtons at a distance of 2 meters from the spindle, the torque would be:
[ \text{Torque} = 5 \text{ N} \times 2 \text{ m} = 10 \text{ Nm} ]
This relationship helps in understanding how different forces and distances affect the spindle’s torque.
Practical Example
Imagine you’re using a CNC spindle to machine a part. If the spindle is applying a force of 50 newtons at a distance of 0.1 meters (10 cm) from the pivot, the resulting torque would be:
[ \text{Torque} = 50 \text{ N} \times 0.1 \text{ m} = 5 \text{ Nm} ]
Understanding this helps in setting up your machinery correctly to ensure optimal performance.
Importance in Industrial Manufacturing
In industries like aerospace and medical device manufacturing, precise torque measurement is critical. It ensures the cutting tools perform efficiently without causing damage to the workpiece or the machine. Accurate torque measurement can lead to better product quality, longer tool life, and reduced operational costs.
In summary, spindle torque is the rotational force that drives the cutting tool or workpiece, measured in newton-meters or inch-pounds. Understanding the relationship between force and moment arm is essential for precise torque measurement and efficient industrial manufacturing.
Next, we’ll explore the various techniques for measuring spindle torque, including electrical power meters, clamp-on torque cells, and surface-mount telemetry systems.

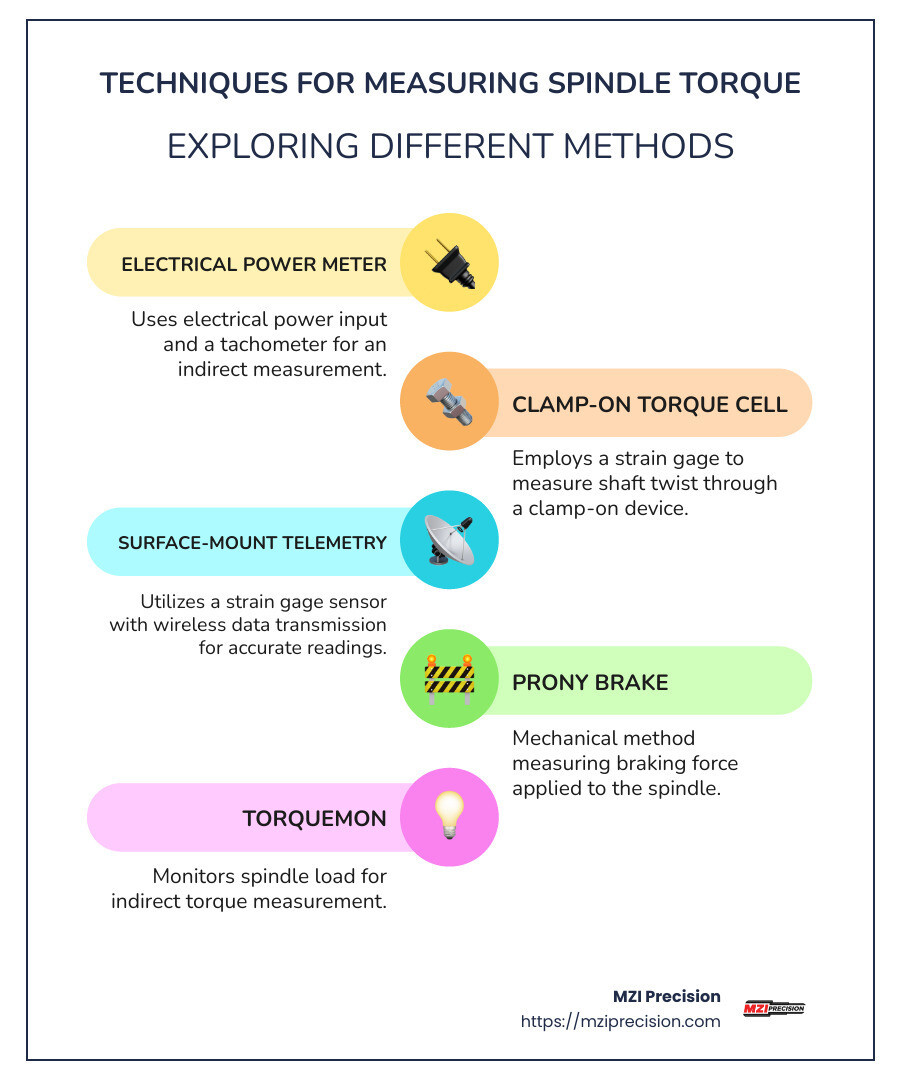

Techniques for Measuring Spindle Torque
Understanding how to measure spindle torque is crucial for maintaining the performance and efficiency of industrial CNC machinery. Here are three common techniques used to measure spindle torque, each with its own advantages and limitations.
Electrical Power Meter Method
The Electrical Power Meter Method is a straightforward way to estimate the torque on the output shaft of an electric motor. Here’s how it works:
- Measure Electrical Power Input: Use a power meter to measure the current and voltage in the line driving the motor.
- Calculate Power Input: The power meter calculates the electrical power input.
- Estimate Torque: Knowing the shaft speed (measured with a tachometer) and the motor efficiency (specified by the manufacturer), you can convert the electrical power input to an estimated torque value.
This method is considered an indirect measurement because it estimates torque based on electrical power rather than measuring it directly.
Pros:
– Inexpensive and easy to install.
– Suitable for applications where a “gross” torque measurement is sufficient.
Cons:
– Poor accuracy due to variations in motor efficiency.
– Not suitable for fast-changing torque conditions.
– Only valid for drivelines with an electric motor.
Clamp-on Torque Cell Method
The Clamp-on Torque Cell Method involves physically clamping a sensor (usually a strain gage) onto the shaft. The sensor measures the strain or “twist” on the shaft and converts it into a torque measurement through a set of calculations based on the shaft’s geometry and properties.
Pros:
– Direct measurement of torque.
– Can be used without modifying the shaft.
Cons:
– High degree of uncertainty due to stack-up of mechanical components and environmental variations.
– Bulky and requires significant shaft area for installation.
– Installation can be complex and time-consuming.
Surface-Mount Torque Telemetry
The Surface-Mount Torque Telemetry system uses a strain gage sensor directly mounted to the surface of the shaft. This sensor measures the twist on the shaft and transmits the data wirelessly via telemetry.
Pros:
– High accuracy due to direct measurement and proximity to the load.
– Wireless data transmission eliminates issues like signal noise and component wear associated with slip rings.
– Reduced profile allows use in space-constrained applications.
Cons:
– Requires field installation of the strain gage, which can be challenging without proper training.
– Installation can take several hours per shaft.
In summary, each technique for measuring spindle torque has its own set of benefits and drawbacks. The choice of method depends on factors like accuracy requirements, installation complexity, and the specific application in industrial manufacturing. Next, we’ll look at the tools used for measuring spindle torque, including rotary torque sensors and Prony brakes.
Tools for Measuring Spindle Torque
Rotary Torque Sensors
Rotary Torque Sensors are essential for accurate spindle torque measurement in rotating shafts. These sensors can use slip rings, wireless telemetry, or rotary transformers to transfer power and data.
- Slip Rings: These are mechanical devices that allow the transmission of electrical signals and power to and from the rotating shaft. While effective, they can wear out over time and introduce noise into the signal.
- Wireless Telemetry: This method uses radio waves to transmit data from the rotating sensor to a stationary receiver. It eliminates the wear and noise issues associated with slip rings, making it ideal for long-term use.
- Rotary Transformers: These are used to inductively transfer power and signals between stationary and rotating parts. They offer a contactless solution, reducing maintenance needs.
Rotary torque sensors are often used in conjunction with encoders to measure rotational angle or speed, providing comprehensive data for performance analysis.
Prony Brake
A Prony Brake is a simple yet effective tool for mechanical torque measurement. It consists of a brake that applies a controlled frictional force to the rotating spindle.
- Braking Force: By tightening the brake around the spindle, you can measure the force required to slow down or stop the rotation. This force, combined with the radius at which it is applied, allows for direct torque calculation.
- Mechanical Measurement: Unlike electronic methods, the Prony Brake offers a purely mechanical way to measure torque. This can be advantageous in environments where electronic interference is a concern.
Using a Prony Brake is straightforward and can be a cost-effective solution for applications where high precision is not critical.
TorqueMon
TorqueMon is a sophisticated tool designed for indirect torque measurement through spindle load analysis. It uses the back-EMF (Electromotive Force) of the motor to gauge the load on the spindle.
- Spindle Load: TorqueMon measures the electrical characteristics of the motor, such as current and voltage, to infer the mechanical load on the spindle. This method is particularly useful for monitoring and diagnosing spindle performance in real-time.
- Indirect Torque Measurement: By analyzing the spindle load rather than directly measuring torque, TorqueMon provides valuable insights into the operational efficiency and health of the spindle.
TorqueMon is ideal for applications requiring continuous monitoring and predictive maintenance, helping to prevent unexpected downtime and extend the lifespan of the spindle.
By leveraging these tools, industries can achieve accurate and reliable spindle torque measurement, ensuring optimal performance and efficiency in their manufacturing processes.
Next, we’ll explore how to calculate spindle torque using basic formulas and practical applications.
Calculating Spindle Torque
Basic Formula
To calculate spindle torque, you need to understand the relationship between power, speed, and torque. The basic formula is:
[ \text{Torque (Nm)} = \frac{\text{Power (W)}}{\text{Speed (RPM)} \times 2\pi / 60} ]
In simple terms, torque is the rotational force produced by the spindle. It’s measured in Newton-meters (Nm).
Power is the rate at which work is done, measured in watts (W).
Speed is how fast the spindle rotates, measured in revolutions per minute (RPM).
Practical Application
Let’s walk through a real-world example to make this clearer.
Example Calculation
Imagine you have a spindle motor with the following specs:
– Power: 5.5 kW (5500 W)
– Speed: 3000 RPM
First, convert the power from kilowatts to watts (if needed):
[ 5.5 \text{ kW} = 5500 \text{ W} ]
Next, use the formula:
[ \text{Torque} = \frac{5500}{3000 \times 2\pi / 60} ]
[ \text{Torque} = \frac{5500}{314.16} ]
[ \text{Torque} \approx 17.5 \text{ Nm} ]
So, the spindle torque is approximately 17.5 Nm.
RPM Measurement
Accurate RPM measurement is crucial for calculating spindle torque. You can measure RPM using a tachometer.
Steps:
1. Warm up the spindle: Run the spindle to its operating temperature.
2. Use the tachometer: Place the tachometer near the spindle to get an accurate RPM reading.
3. Record the RPM: Note down the RPM value for use in torque calculations.
Torque Calculation in Real Scenarios
In industrial settings, torque calculations help in various applications, such as:
- Monitoring Load: Ensuring the spindle isn’t overloaded, which can prevent damage.
- Optimizing Performance: Adjusting machine settings for maximum efficiency.
- Predictive Maintenance: Identifying potential issues before they lead to machine failure.
For example, in a manufacturing plant, regular torque measurements can help detect wear and tear on spindle components. If the torque value deviates from the norm, it could indicate a problem, prompting maintenance before a breakdown occurs.
By understanding and applying these principles, you can ensure your spindle operates efficiently and reliably, minimizing downtime and maximizing productivity.
Next, we’ll address some frequently asked questions to further clarify spindle torque measurement.
Frequently Asked Questions about Spindle Torque Measurement
How to calculate spindle torque?
Calculating spindle torque involves understanding the interplay between power, speed, and torque. The formula to calculate torque is:
[ \text{Torque (Nm)} = \frac{\text{Power (W)}}{\text{Speed (RPM)} \times 2\pi / 60} ]
Let’s break down an example to make this clearer.
Example Calculation:
Suppose you have a spindle motor with:
– Power: 5.5 kW (5500 W)
– Speed: 3000 RPM
First, convert the power from kilowatts to watts:
[ 5.5 \text{ kW} = 5500 \text{ W} ]
Next, apply the formula:
[ \text{Torque} = \frac{5500}{3000 \times 2\pi / 60} ]
[ \text{Torque} = \frac{5500}{314.16} ]
[ \text{Torque} \approx 17.5 \text{ Nm} ]
So, the spindle torque is approximately 17.5 Nm.
How do you measure torque on a rotating shaft?
Measuring torque on a rotating shaft can be done using different methods and tools:
-
Rotary Torque Sensors: These sensors are attached to the rotating shaft to measure torque directly. They can use slip rings or wireless telemetry to transmit data.
-
Slip Rings: Slip rings provide a way to transfer the torque measurement from the rotating shaft to stationary data acquisition systems. However, they can introduce noise and require maintenance.
-
Wireless Telemetry: This method uses wireless signals to transmit data, avoiding the drawbacks of slip rings. It is more reliable and requires less maintenance.
What is the unit of torque in spindle?
The unit of torque is the Newton-meter (Nm). Torque is a measure of the rotational force applied to the spindle. It is calculated as the product of force and the moment arm (the distance from the point of force application to the axis of rotation).
In summary, torque is defined by:
[ \text{Torque (Nm)} = \text{Force (N)} \times \text{Moment Arm (m)} ]
Understanding these units and methods is crucial for accurate spindle torque measurement, ensuring optimal performance and longevity of your industrial manufacturing spindles.
Conclusion
In summary, accurately measuring spindle torque is essential for optimizing the performance and longevity of your industrial manufacturing spindles. Whether you’re using rotary torque sensors, clamp-on torque cells, or surface-mount telemetry systems, each method has its own advantages and trade-offs. Choosing the right technique depends on your specific application needs, such as accuracy, space constraints, and long-term maintenance considerations.
Accurate torque measurement is not just a technical necessity; it’s a crucial factor that can significantly impact the quality of your manufacturing processes. For example, incorrect torque measurements can lead to uneven wear on tools, inconsistent product dimensions, and even machine downtime. Accurate measurements help you avoid these issues, ensuring that your operations run smoothly and efficiently.
At MZI Precision, we bring our expertise in spindle repair and rebuilding to help you achieve the highest levels of precision and reliability. Our commitment to exceptional service and support means we are always ready to assist you with your spindle needs, whether it’s routine maintenance, emergency repairs, or advanced torque measurement solutions.
For more information on how we can assist with your spindle repair and rebuilding needs, visit our Spindle Repair Service page. We’re here to ensure your manufacturing processes are as efficient and accurate as possible.
By focusing on precise measurement and expert care, we help you maintain the performance and longevity of your industrial manufacturing spindles, supporting a wide range of industries from aerospace to medical and beyond.
