Understanding Spindle Motors: How They Work and Why They Matter

Why Understanding Spindle Motors is Crucial for Your Manufacturing Operations

When it comes to CNC machining, how does a spindle motor work is a common question and a vital one to understand for anyone in industrial manufacturing. The spindle motor is the heart of your CNC machine, turning tools or workpieces for cutting, drilling, and milling operations. Here’s a quick breakdown:

  • Spindle Motor: This component converts electrical energy into mechanical motion, driving the cutting tool.
  • High Speeds: Spindle motors can operate at extremely high speeds for precision and efficiency.
  • Magnetic Fields & Rotors: Utilizing rotating magnetic fields, spindle motors generate the necessary torque to perform intricate tasks with high accuracy.

Spindle motors are indispensable in many industries, including aerospace, medical devices, and heavy machinery. They offer high speed, precision, and reliability, which are crucial for maintaining productivity and reducing downtime.

Key Takeaways

  • Purpose: Converts electrical energy to mechanical motion.
  • Components: Rotor, stator, magnetic fields.
  • Industries: Aerospace, medical devices, heavy machinery.

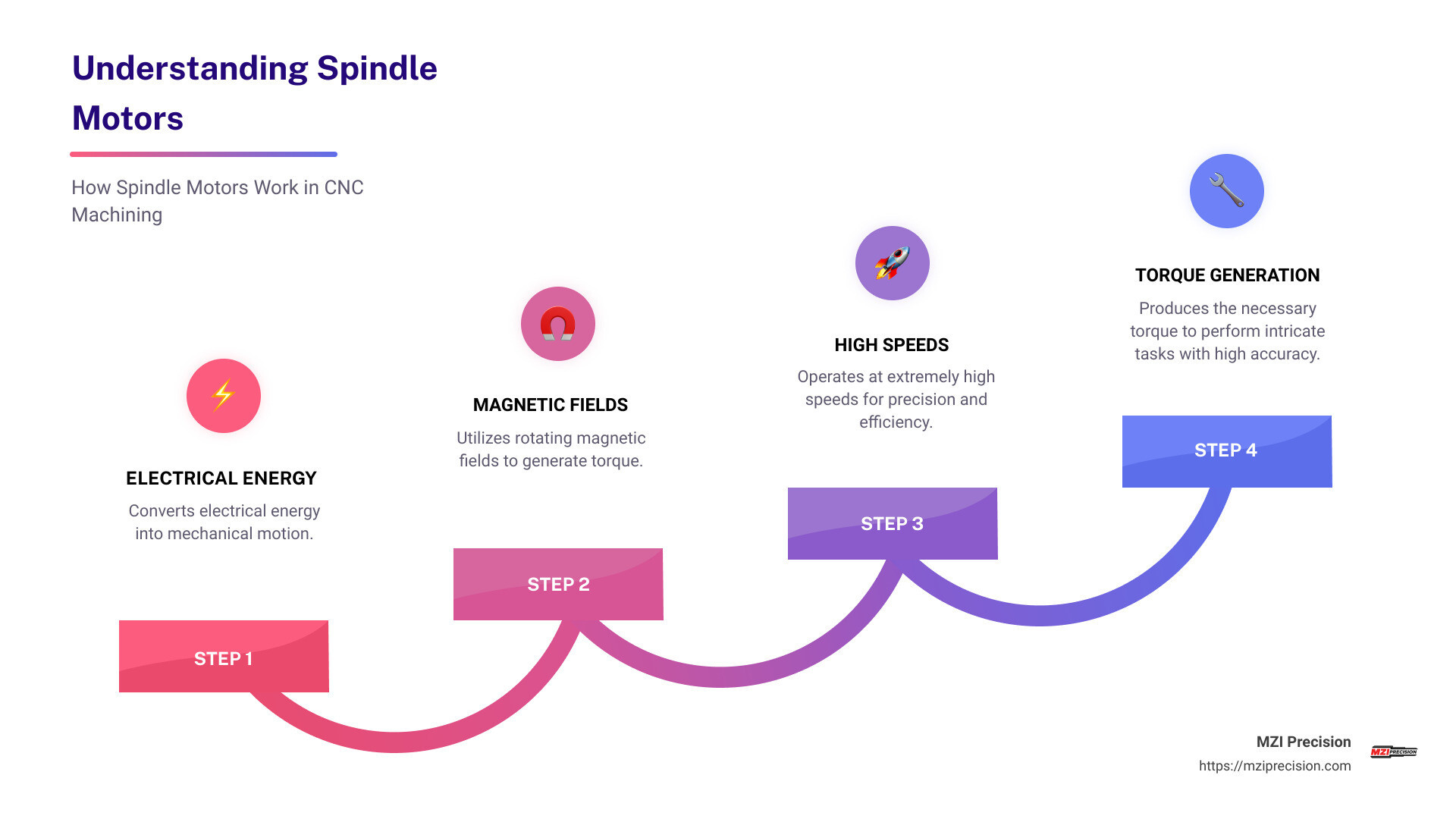

How Spindle Motors Work - how does a spindle motor work infographic step-infographic-4-steps

What is a Spindle Motor?

A spindle motor is a critical component in CNC (Computer Numerical Control) machines, enabling precise and efficient machining. These motors convert electrical energy into mechanical motion, allowing tools to cut, drill, and shape materials with high accuracy.

Components of a Spindle Motor

A spindle motor consists of several key parts:

  • Spindle: This is the rotating axis of the machine, which holds the cutting tool or workpiece.
  • Motor: Provides the necessary power to the spindle for rotation.
  • Stator: The stationary part of the motor, containing coils of wire.
  • Rotor: The rotating part, usually a permanent magnet or a magnetic component.
  • Bearings: Ensure smooth and precise rotation.
  • Cooling System: Often includes fans or liquid cooling to manage heat generated during operation.

How Spindle Motors Work

When electrical current flows through the coils in the stator, it creates a magnetic field. This field interacts with the rotor’s magnetic component, causing it to rotate. The rotation of the rotor spins the spindle, which in turn drives the cutting tool or workpiece.

Spindle Motor Components - how does a spindle motor work

Key Components:
Rotor: Rotates to generate motion.
Stator: Remains stationary, creating the magnetic field.
Bearings: Provide stability and precision.

Role in CNC Machines

In CNC machines, spindle motors are crucial for various tasks, including:

  • Cutting: Removing material from a workpiece.
  • Drilling: Creating holes with high precision.
  • Milling: Shaping materials into desired forms.

These motors must operate at high speeds and with great accuracy to achieve the fine finishes required in industries like aerospace and medical device manufacturing.

Importance of Precision and Speed

Spindle motors are designed to handle high-speed rotations, often reaching up to 60,000 RPMs in some models. This high speed is essential for operations that need extreme precision and smooth finishes.

Example: In the medical device industry, spindle motors are used to create intricate components with tight tolerances, ensuring the reliability and functionality of the final product.

Understanding how spindle motors work and their components can help you appreciate their role in modern manufacturing and why they’re indispensable in achieving high-quality results.

How Does a Spindle Motor Work?

The Role of the Rotor and Stator

A spindle motor operates on the principles of electromagnetism. Its core components are the rotor (the rotating part) and the stator (the stationary part). Let’s break down their roles:

  • Rotor: This is the part that spins. It often contains permanent magnets or is made from magnetic material.
  • Stator: Surrounding the rotor, the stator has windings of wire. When electrical current flows through these windings, it creates a magnetic field.

How It Works: When an electrical current is applied to the stator windings, it generates a magnetic field. This field interacts with the rotor, causing it to spin. The interaction between the magnetic fields of the rotor and stator generates torque, which is the force that makes the rotor turn. This spinning action is what drives the spindle, allowing it to perform high-speed, precise operations.

Types of Spindle Motors

There are two main types of spindle motors used in industrial manufacturing: AC induction motors and brushless DC motors. Each type has unique characteristics and applications.

AC Induction Motors

  • How They Work: These motors use alternating current (AC) to create a rotating magnetic field in the stator. This field induces a current in the rotor, which then creates its own magnetic field and starts spinning.
  • Advantages: AC induction motors are known for their ruggedness and reliability. They can handle high speeds and significant loads, making them ideal for heavy-duty industrial applications.
  • Applications: Commonly used in manufacturing processes that require continuous operation and high torque, such as metal cutting and drilling.

Brushless DC Motors

  • How They Work: These motors use direct current (DC) and permanent magnets in the rotor. The stator contains the windings, and electronic controllers switch the current to different windings, creating a rotating magnetic field.
  • Advantages: Brushless DC motors have fewer moving parts, which reduces friction and wear. This leads to increased reliability and longer lifespan. They are also more efficient and can achieve higher speeds with greater precision.
  • Applications: Often found in high-end applications that demand precision and efficiency, such as aerospace and medical device manufacturing.

Differences: The main differences between AC induction motors and brushless DC motors lie in their power sources and efficiency. AC induction motors are more robust and better suited for heavy-duty tasks, while brushless DC motors excel in precision and efficiency.

Understanding the types and workings of spindle motors helps in selecting the right motor for your specific industrial needs, ensuring optimal performance and durability.

Advantages of Using Spindle Motors

Spindle motors are the backbone of many industrial applications, offering several advantages that make them indispensable. Let’s explore these benefits in detail.

Increased Speed

CNC spindle motors can reach impressive speeds, sometimes up to 60,000 RPM. This high speed translates to faster machining times, which boosts productivity. For example, in woodworking, a high-speed spindle motor can cut through materials quickly, reducing cycle times and boosting output.

Increased Torque

These motors also provide higher torque, allowing for heavier cuts without sacrificing speed or accuracy. This means you can work with a wider range of materials, from metals to plastics, without compromising on performance. More torque means more power, which is crucial for heavy-duty applications.

Decreased Vibration

One of the standout features of spindle motors is their ability to minimize vibration. Thanks to precision bearings and advanced rotor design, these motors produce less vibration. This leads to improved surface finish and increased accuracy, which is essential for industries like aerospace and medical devices.

Improved Reliability

Spindle motors are designed to be rugged and reliable, making them ideal for demanding industrial applications. Their robust construction ensures they can handle routine wear and tear without breaking down. This improved reliability leads to decreased downtime and increased productivity.

Enhanced Productivity

With higher speeds and torque, spindle motors significantly boost productivity. Faster machining times and the ability to handle a variety of materials mean you can complete more tasks in less time. This efficiency is a game-changer for any manufacturing setup.

Better Surface Finish

The combination of high speed, torque, and reduced vibration results in a superior surface finish. This is crucial for industries where precision and aesthetics are important, such as optical and medical device manufacturing. A better surface finish not only improves the quality of the product but also reduces the need for secondary finishing processes.

By leveraging these advantages, spindle motors can greatly enhance your manufacturing process. Next, let’s dive into the different types of CNC spindle motors and their specific applications.

Types of CNC Spindle Motors

AC Induction Motors

AC induction motors are the workhorses of CNC machines. They use alternating current (AC) to generate a magnetic field in the stator windings. This magnetic field interacts with the rotor, creating torque.

Why Choose AC Induction Motors?

  • Rugged and Reliable: These motors are built to last. Their robust design makes them ideal for heavy-duty industrial applications.
  • High Efficiency: They can handle continuous operation without overheating, thanks to their efficient cooling systems.
  • Cost-Effective: Generally, AC induction motors are less expensive than other types of spindle motors, making them a popular choice for many manufacturers.

Applications: You’ll find AC induction motors in industries that require high durability and reliability, such as aerospace and automotive manufacturing.

Brushless DC Motors

Brushless DC motors are the high-precision, high-performance option for CNC machines. Unlike AC induction motors, they use direct current (DC) to generate a magnetic field in the stator windings. The rotor contains permanent magnets, which interact with the magnetic field to create torque.

Why Choose Brushless DC Motors?

  • Reduced Friction: No brushes mean less friction, which results in less wear and tear. This extends the motor’s lifespan.
  • Increased Reliability: The absence of brushes also means fewer components that can fail, making these motors more reliable.
  • High Precision: These motors offer superior speed control and accuracy, making them ideal for high-end applications.

Applications: Brushless DC motors are commonly used in medical device manufacturing and other industries where precision and reliability are paramount.

Integral Motor Spindle

An integral motor spindle combines the motor and spindle into a single, compact unit. This design reduces the number of components, which can decrease maintenance needs and improve reliability.


  • Compact Design: Saves space and simplifies the machine setup.
  • High Precision: Integrated design allows for better control and accuracy.

Applications: Ideal for high-precision tasks in industries like optical manufacturing.

Belt-Driven Spindle

A belt-driven spindle uses a belt to connect the motor to the spindle. This design allows for easy adjustments of speed and torque by changing the belt’s size or tension.


  • Flexibility: Easily adjust speeds and torques for different tasks.
  • Cost-Effective: Generally less expensive to maintain and repair.

Applications: Suitable for a variety of tasks, from light-duty to heavy-duty applications.

High-Speed Spindles

High-speed spindles are designed to operate at very high speeds, often exceeding 60,000 RPM. These spindles are crucial for applications that require high precision and smooth finishes.


  • Increased Productivity: High speeds mean faster machining times.
  • Superior Surface Finish: Reduced vibration leads to smoother surfaces.

Applications: Commonly used in industries like dental and medical device manufacturing, where precision and surface finish are critical.

By understanding the different types of CNC spindle motors, you can make an informed decision that best suits your manufacturing needs.

Next, let’s explore the various applications of spindle motors in different industries.

Applications of Spindle Motors in Various Industries

Spindle motors are vital components across numerous industries due to their ability to provide high precision, speed, and efficiency. Let’s dive into some of the key sectors where spindle motors play a crucial role:


Precision is paramount in the aerospace industry. Spindle motors are used to manufacture intricate components like engine parts and control mechanisms. For example, the actuators behind the mirror segments in the James Webb Space Telescope rely on spindle motors for 10-nanometer precision in linear actuation.


Speed and precision are critical in automotive manufacturing. Spindle motors help produce essential parts such as engines and transmission systems. High-speed capabilities reduce production times, enabling manufacturers to meet market demands efficiently. CNC lathes equipped with these motors can quickly and accurately produce complex engine components.


Durability and reliability are key in agriculture. Spindle motors are used in machinery for planting, harvesting, and processing crops. Their robust construction ensures they can withstand harsh conditions and operate efficiently, leading to increased productivity and reduced downtime.

Medical and Dental

High precision is essential for medical and dental tools. Spindle motors are used to create surgical instruments and dental implants. For instance, the exacting precision of these motors ensures that medical devices meet stringent standards, impacting the quality of patient care.

Office Equipment

Efficiency and reliability are important for office equipment. Spindle motors are found in printers, copiers, and scanners. Their ability to operate quietly and efficiently makes them ideal for environments where noise and reliability are concerns.


Robustness and precision are crucial in the oil and gas industry. Spindle motors are used in drilling equipment and machinery for refining processes. Their ability to operate under extreme conditions ensures that operations run smoothly and safely.


Accuracy is critical in the optical industry. Spindle motors are used to manufacture lenses and other optical components. Their high precision ensures that each component meets the required specifications, impacting the performance of optical devices.


Efficiency and precision are key in plastics manufacturing. Spindle motors are used in injection molding machines and other equipment to shape plastic parts. Their ability to operate at high speeds and with great accuracy ensures that products are manufactured efficiently and to high standards.

Solar Energy

Reliability and efficiency are important in the solar industry. Spindle motors are used in the production of solar panels and other components. Their ability to operate efficiently ensures that solar energy systems are produced to meet growing demand.

In each of these industries, spindle motors are not just tools; they are critical components that ensure high standards of modern manufacturing are met. Their versatility and precision make them indispensable in sectors where quality and accuracy are paramount.

Next, let’s explore how to choose the right spindle motor for your specific needs.

How to Choose the Right Spindle Motor

Choosing the right spindle motor can feel overwhelming, but breaking it down into key factors like power requirements, build quality, and price comparison can simplify the process.

Power Requirements

First, determine the power requirements of the spindle motor based on your application.

  • Light-duty applications: If you’re working with materials like wood or soft plastics, you won’t need as much power. A motor with lower power ratings will suffice.
  • Heavy-duty applications: For tougher materials like metal, you’ll need a motor with higher power ratings to handle the increased load.

Motor power is critical. Ensure the motor you choose can provide the necessary torque and speed for your specific tasks.

Build Quality

Build quality is another crucial factor to consider. A high-quality spindle motor will consist of durable materials and offer superior performance.

  • Look for motors with high-quality materials like robust metals and advanced composites that ensure longevity.
  • Check if the manufacturer offers a warranty on the product. A warranty can provide peace of mind and indicate the manufacturer’s confidence in the motor’s durability.

A well-built motor will not only last longer but also maintain its performance over time.

Price Comparison

Finally, comparing prices helps you get the best value for your money. However, don’t just look at the price tag; consider the features and specifications of each motor.

  • Features: Make sure the motor has the features you need, such as speed control, cooling systems, or integrated sensors.
  • Specifications: Compare the specifications like power, torque, and speed to ensure they meet your requirements.

By evaluating these factors, you can find a spindle motor that fits your budget while still delivering the performance and reliability you need.

In conclusion, choosing the right spindle motor involves understanding your power requirements, ensuring build quality, and making a thorough price comparison. Each of these factors will help you find the perfect motor for your CNC machine, whether you’re working on light-duty or heavy-duty applications.

Frequently Asked Questions about Spindle Motors

How does a spindle motor work?

A spindle motor is a key component in CNC machines, providing the rotation needed to cut, drill, or mill materials. Here’s a simplified breakdown of how a spindle motor works:

  1. Electric Motors: Spindle motors use electric power to generate motion. This can be from alternating current (AC) or direct current (DC).

  2. Rotor and Stator: The motor consists of two main parts: the rotor (the rotating part) and the stator (the stationary part). The stator has coils of wire that create a magnetic field when electric current flows through them.

  3. Magnetic Field: The interaction between the magnetic field of the stator and the rotor generates torque, causing the rotor to spin.

  4. Precision Bearings: These bearings support the spinning rotor and ensure smooth, high-speed rotation with minimal friction.

  5. High Speeds and Accuracy: The spindle motor is designed to reach high speeds and maintain precision, which is crucial for tasks like milling and drilling.

A spindle motor converts electrical energy into mechanical motion with high precision and speed, making it indispensable in industrial manufacturing.

What is the difference between a spindle motor and a servo motor?

While both spindle motors and servo motors are used in CNC machines, they serve different purposes and operate differently:

  • Spindle Motor: Primarily used for rotating cutting tools at high speeds. It focuses on delivering high torque and maintaining speed, crucial for cutting, drilling, and milling.

  • Servo Motor: Designed for precise control of angular position, speed, and acceleration. It uses feedback systems to adjust and correct its position, making it ideal for applications requiring high precision, such as robotic arms.

Key Differences:
Purpose: Spindle motors are for high-speed rotation; servo motors are for precise position control.
Feedback System: Servo motors have built-in feedback systems for accuracy; spindle motors generally do not.
Applications: Spindle motors are used in cutting and milling; servo motors are used in precise positioning tasks.

Is a spindle motor AC or DC?

Spindle motors can be either AC or DC, depending on the application and requirements:

  • AC Spindle Motors: Common in industrial applications due to their durability and ability to handle high power levels. They use alternating current to generate motion and are often found in heavy-duty CNC machines.

  • DC Spindle Motors: Often used in high-precision applications. They use direct current and can offer finer control over speed and torque. Brushless DC motors, in particular, are popular for their efficiency and reduced maintenance needs.

In summary, both AC and DC spindle motors are used in CNC machines, with the choice depending on specific needs like power, precision, and application type.


In summary, spindle motors are the heart of many CNC machines, providing the precision and power necessary for various industrial applications. They work by converting electrical energy into mechanical motion, using components like the rotor and stator to generate torque and achieve high speeds with remarkable accuracy.

Choosing the right spindle motor involves considering power requirements, build quality, and price. Whether you need an AC induction motor for rugged, heavy-duty tasks or a brushless DC motor for high-precision applications, understanding these factors will help you make an informed decision.
