The Heart of Precision Machining: Understanding CNC Spindle Assembly
CNC machine spindle assembly is the rotating component that holds and drives cutting tools in computer numerical control (CNC) machines. It’s often called the heart of the machine for good reason – without a properly functioning spindle, even the most advanced CNC machine is useless.
Quick Reference: CNC Spindle Assembly Basics
| Component | Function | Common Issues |
|---|---|---|
| Bearings | Support shaft rotation | Wear, contamination |
| Shaft | Holds cutting tools | Runout, imbalance |
| Housing | Contains components | Thermal expansion |
| Drawbar | Secures tools | Loss of clamping force |
| Seals | Prevent contamination | Coolant ingress |
The spindle assembly transforms the motor’s power into the precise cutting motion needed for machining operations. Whether you’re operating a milling machine, lathe, or router, the spindle’s performance directly impacts your finished product’s quality, accuracy, and surface finish.
As one industry expert notes, “External contamination is the leading cause of premature spindle failure.” This highlights why understanding spindle assembly is crucial for manufacturing professionals – proper assembly and maintenance can dramatically extend spindle life and machine productivity.
A typical CNC spindle contains hundreds of individual parts working together, with tolerances often measured in microns. The primary components include the drive system (belt-driven, direct-drive, or gear-driven), bearing system, housing, shaft, seals, and drawbar mechanism.
Modern spindle assemblies have evolved significantly, with high-speed options reaching up to 60,000 RPM for integral motor designs, while conventional belt-driven versions typically operate up to 15,000 RPM. The right choice depends on your specific manufacturing needs, materials, and precision requirements.
Cnc machine spindle assembly terms simplified:
– CNC spindle bearing preload
– grinding spindle
– maximum spindle speed in cnc machine

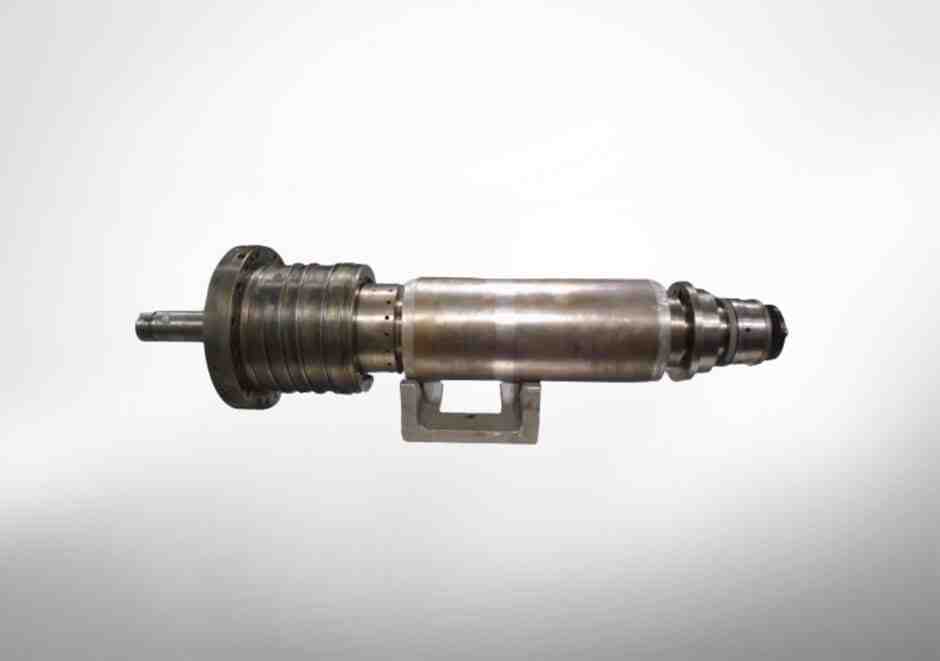

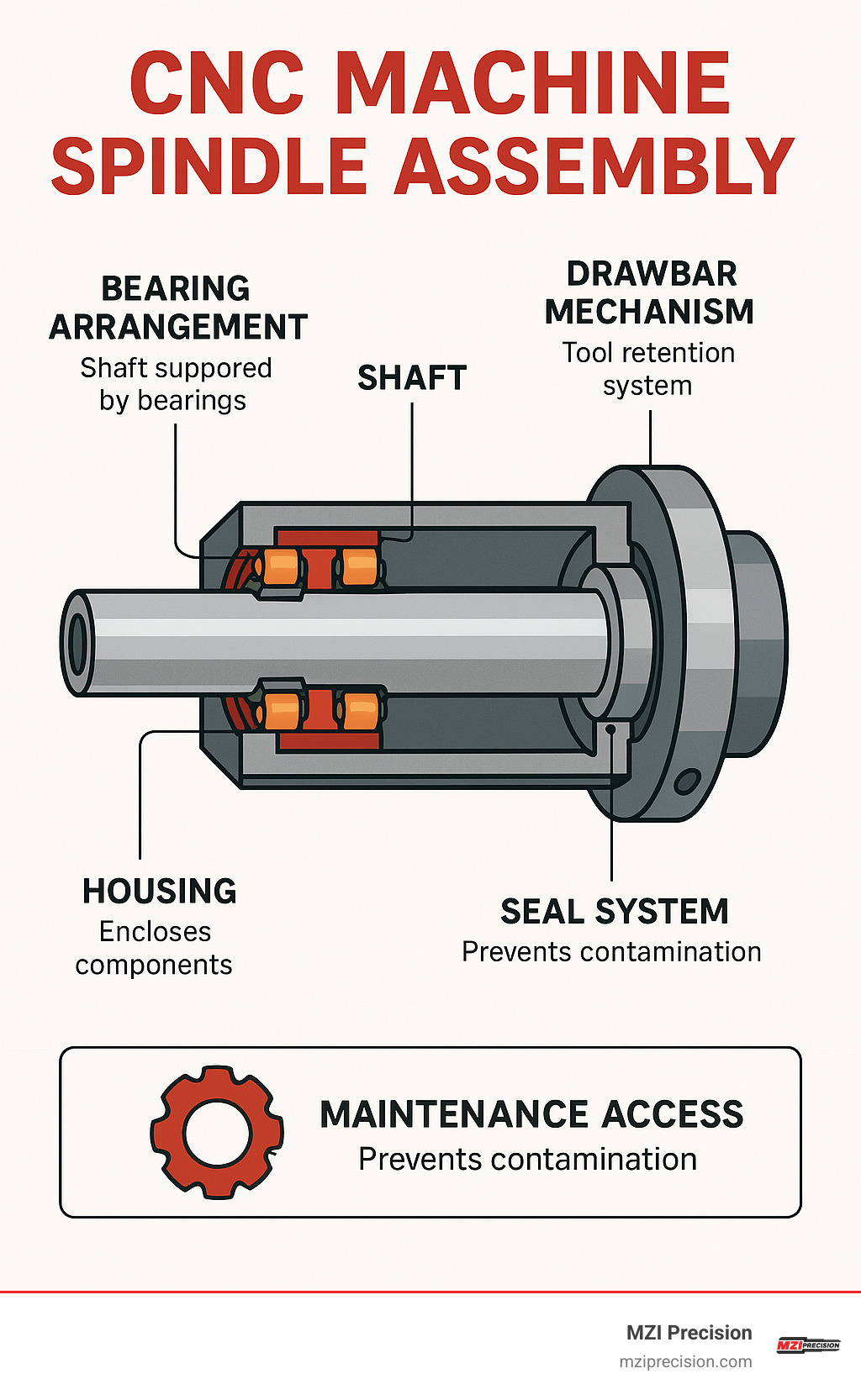

Anatomy of a CNC Machine Spindle Assembly
The CNC machine spindle assembly is truly the beating heart of any precision machining system. Think of it as a finely-tuned orchestra where every component plays a crucial role in creating that perfect harmony of power and precision. Let’s take a closer look at what makes these remarkable systems tick.
Core Components Explained
Bearings are the unsung heroes of any spindle assembly. These hardworking components shoulder the burden of supporting the rotating shaft while keeping friction to an absolute minimum. In high-precision machining, angular contact bearings typically work in carefully arranged sets, handling both axial and radial forces with impressive grace.
While angular contact bearings shine in high-speed applications, their cousins – roller bearings – step up when stiffness and heavy-duty load capacity are needed. Many modern spindles now feature ceramic hybrid bearings, which cleverly combine steel races with ceramic balls. This marriage of materials significantly reduces heat and friction while giving your spindle a much longer lifespan.
Bearing preload might sound technical, but it’s actually a fascinating concept. It’s essentially an axial force applied during assembly that eliminates any wiggle room between bearing components. As one experienced technician put it, “Finding the perfect preload is like Goldilocks – not too tight, not too loose, but just right.” Too little preload invites play and vibration; too much generates excessive heat that can dramatically shorten bearing life.
The shaft serves as the spindle’s backbone – typically hollow and featuring a precision-machined taper at one end to accommodate the tool holding system. These shafts undergo extensive hardening and balancing to maintain rock-solid accuracy even when spinning at mind-boggling speeds under heavy cutting forces. The shaft’s taper style (common types include R8, BT30, and HSK) determines which tool holders will be compatible with your system.
The housing does far more than just contain all these precision parts. A well-designed housing provides crucial structural support while often incorporating cooling jackets, lubrication pathways, and air passages. The housing’s design significantly impacts how well the spindle dampens vibration and manages heat. Depending on your machine’s architecture, you might encounter block-style housings or flange-mounted cartridge designs.
Internal Subsystems & Their Roles in cnc machine spindle assembly
The drawbar mechanism is the unsung hero that keeps your cutting tools securely in place with consistent, reliable force. This clever system typically includes a spring stack (often using Belleville washers), a drawbar shaft, a gripper mechanism, and a release system powered by hydraulics or pneumatics.
In professional-grade spindles, drawbar pull force can reach an impressive 3000 N or more, ensuring your tools stay firmly in place even during aggressive cutting operations. The spring stack faces the challenging job of maintaining consistent force despite thermal cycles and countless tool changes.
Lubrication channels serve as the spindle’s lifelines. These precision-engineered pathways deliver just the right amount of oil or grease exactly where it’s needed. Some cutting-edge high-speed spindles employ sophisticated oil-air mist systems that provide precisely metered lubrication to minimize heat generation while maximizing protection.
Sealing systems might not be glamorous, but they’re absolutely critical for spindle longevity. As industry veterans will tell you, “external contamination is the leading cause of premature spindle failure.” Two main sealing approaches exist in modern spindles:
- Contact seals (lip seals) that physically touch the shaft
- Non-contact labyrinth seals that create maze-like paths to block contaminants
Many high-performance spindles take belt-and-suspenders approach by combining labyrinth seals with positive internal air pressure. This clever design prevents coolant and chip infiltration without generating friction heat – truly the best of both worlds.
Understanding these components isn’t just academic – it’s practical knowledge that helps machine operators and maintenance teams maximize uptime and precision. When these elements work in harmony, the result is the kind of exceptional machining performance that keeps manufacturers competitive in today’s demanding marketplace.
Spindle Designs & Drive Systems
The world of CNC machine spindle assembly offers a variety of designs, each with its own personality and strengths. Think of these different configurations as specialized tools in your workshop – each one perfect for specific jobs.
Cartridge vs. Self-Contained vs. Fabricated Assemblies
Cartridge Spindles are the quick-change artists of the spindle world. They’re designed as complete, modular units that can be swapped out in a few hours, getting your machine back to making chips while the original spindle takes a trip to the rebuild shop.
“I love working with cartridge designs,” says one of our technicians at MZI Precision. “When a customer’s production line is down, we can often get them a replacement unit installed while we take their original back to our clean room for a proper rebuild.” This modular approach has become the gold standard in modern VMCs precisely because it minimizes costly downtime.
Self-Contained Spindles bring everything to the party – motor, bearings, and all drive components in one tidy package. These units shine in smaller CNC applications and retrofits where simplicity matters. A typical trim router used in hobby CNC machines might offer 1.25 HP with speeds from 10,000 to 30,000 RPM, making them versatile performers for lighter-duty applications.
Fabricated Spindles are the old-school approach, built directly into the machine’s cast housing. While they offer exceptional rigidity that’s hard to beat, they’re the most challenging to service. When these spindles need attention, the repair typically happens right on the shop floor rather than in a clean room environment. You’ll find these mostly in legacy equipment or specialized machines where the integrated design offers specific advantages.
Drive Architecture Impact on cnc machine spindle assembly Performance
How your spindle connects to its power source dramatically shapes its performance profile. It’s like choosing between a sports car, an SUV, or a pickup truck – each has its sweet spot.
Belt-Driven Spindles are the workhorses of the machine shop. Using pulleys and belts to transfer power from an external motor, they deliver impressive torque at lower speeds – perfect for powering through tough materials. They’re cost-effective and offer easy speed adjustments by swapping pulleys, though you’ll need to keep an eye on belt condition and tension to maintain peak performance.
Direct-Drive/Inline Spindles eliminate the middleman by coupling the motor directly to the spindle shaft. This direct connection reduces vibration and power loss while providing excellent speed control. These systems really shine in high-precision applications where smooth operation matters. Modern options range from 8,100 RPM workhorses to 20,000 RPM precision performers, covering most manufacturing needs.
Integral Motor Spindles take the direct-drive concept even further by building the motor’s rotor and stator right into the spindle assembly. This integrated approach enables blistering speeds up to 60,000 RPM, though it requires sophisticated cooling systems to manage the heat. While more expensive, these spindles offer best performance for high-speed machining applications where time is money.
| Drive Type | Max RPM | Torque Characteristics | Best Applications |
|---|---|---|---|
| Belt Drive | 15,000 | High torque at low RPM | General machining, heavy cutting |
| Direct Drive | 20,000+ | Linear torque curve | High-speed finishing, aerospace |
| Gear Drive | 6,000 | Maximum torque | Heavy roughing, tough materials |
The electronics controlling your spindle have evolved dramatically too. Modern vector drives can push spindles to 150% of their continuous power rating for 15 minutes and 200% for brief 3-minute bursts – perfect for those challenging cuts that need extra oomph. Some systems even feature on-the-fly wye/delta switching, optimizing the torque curve across the RPM range without any mechanical changes.
When selecting the right CNC machine spindle assembly for your application, consider both your immediate needs and future growth. The perfect spindle balances speed, power, precision and reliability in a way that matches your specific manufacturing challenges.
Latest research on spindle components
Performance Factors & Selection Criteria
Choosing the right CNC machine spindle assembly is a bit like finding the perfect dance partner for your machining operations – it needs to match your rhythm, style, and goals. Let’s explore what makes a spindle the right fit for your specific needs.
Speed range, torque capacity, taper standards, and precision factors all play crucial roles in determining which spindle will deliver the performance you need. The best spindle for your application balances these elements against your production requirements and budget constraints.
How Taper Choices Shape Tool Compatibility
The spindle taper is where your cutting tools connect to the machine – and this critical interface dramatically impacts your operations.
R8 Taper is like that reliable old friend who’s always there when you need them. Common in smaller mills and retrofitted manual machines, R8 offers widely available, affordable tooling. While dependable, it lacks the quick-change capabilities and rigidity that modern manufacturing often demands.
BT30/BT40/BT50 tapers are the workhorses of the VMC world. The number tells you the flange diameter in millimeters – bigger numbers for heavier cutting. These ISO-standard tapers offer excellent rigidity and work seamlessly with automatic tool changers, making them perfect for production environments.
HSK (Hollow Shank Taper) is the high-performance athlete of the taper world. Unlike traditional tapers that only contact at the outer cone, HSK tooling also contacts the spindle face. This dual-contact design maintains impressive rigidity even at high speeds when centrifugal forces try to pull things apart.
Your drawbar system needs to match your taper choice. For example, a typical BT30 assembly uses a stack of 114 Belleville washers to generate around 3000 N of clamping force, while the release mechanism needs about 4500 N of pneumatic or hydraulic pressure to overcome this and change tools.
Bearing & Housing Decisions for High-Precision Cuts
Bearing selection is where art meets science in spindle design. Angular contact ball bearings shine in high-speed applications thanks to their lower friction and heat generation. When you’re dealing with heavier loads and need maximum rigidity, roller bearings might be your go-to despite their lower speed capabilities.
Some cutting-edge spindle designs feature two forward bearings with a substantial spacer between them. This clever arrangement improves radial stability and lets you make heavy cuts in tough materials without breaking a sweat (though your spindle might!).
The housing material and design matters more than you might think. Aluminum housings keep things light and are easier to machine, but they sometimes lack the rock-solid rigidity and thermal stability that steel provides. The best manufacturers finish housing bores and outer diameters in a single operation, ensuring perfect alignment that reduces bearing heat and extends spindle life.
When it comes to precision specifications, quality matters. High-end spindles typically offer runout tolerances of 0.01 mm (10 microns) or less. After a professional rebuild from specialists like MZI Precision, you can achieve radial runout of just 2 microns and axial runout of 1 micron – that’s hair-splitting precision that ensures flawless machining results.
Thermal management is the unsung hero of spindle performance. As speeds increase, so does heat – your spindle’s worst enemy. Effective cooling options include:
Air cooling offers simplicity but has limited heat-fighting capacity. Liquid cooling provides superior thermal management for non-stop operations. Many high-performance spindles feature cooling jackets built directly into the housing, while pressurized designs prevent contamination from entering in the first place.
Selecting the right spindle isn’t just about maximum speed or power – it’s about finding the perfect balance of features that align with your specific machining challenges and production goals.
Lifecycle: Assembly, Maintenance & Failure Diagnosis
Proper assembly, maintenance, and timely diagnosis of issues are essential for maximizing the lifespan and performance of your CNC machine spindle assembly.
Step-By-Step Spindle Assembly Checklist
Bringing a spindle to life requires the delicate touch of a surgeon and the precision of a watchmaker. The assembly process isn’t just about putting parts together—it’s about creating harmony between components that will operate at incredible speeds.
When we assemble spindles at MZI Precision, we start with meticulous preparation and inspection. Every component gets examined under bright lights, with calipers in hand, ensuring dimensions are spot-on. Bearings receive special attention—even microscopic damage can cascade into major failures down the road.
The bearing installation phase is where the magic begins. Those tiny steel or ceramic balls need perfect positioning, with paired angular contact bearings arranged so their laser-etched marks face opposite directions. This seemingly small detail can dramatically reduce runout. The preload—that delicate balance of pressure—must be custom to the specific application, neither too tight nor too loose.
When assembling the shaft, balance is everything. A professionally balanced shaft (to G1 tolerance) is like a perfectly tuned musical instrument—it hums rather than vibrates. Seals and spacers need to be installed in the correct sequence, like chapters in a story, each building upon the last.
The housing assembly brings everything together. Those precisely machined lubrication channels and cooling jackets aren’t just passages—they’re lifelines that will keep your spindle healthy for years. When the bearing assembly slides into the housing with that satisfying interference fit, you know you’re creating something that will endure.
“A properly assembled drawbar mechanism is like a firm handshake,” our lead technician often says. The spring stack needs just the right preload, creating the perfect balance between holding tools securely and allowing for quick changes.
The journey concludes with a break-in run, gradually increasing speeds while monitoring temperature and vibration—like taking a new car for a test drive before hitting the highway. As one spindle repair specialist notes, “Reassembly of spindle components should occur in a sterilized environment.” This clean-room approach prevents contamination that could lead to premature failure.
Warning Signs of Wear & How to Act Fast
Your spindle talks to you—you just need to know how to listen. Those unusual noises aren’t just annoying; they’re messages. A high-pitched whine might indicate bearing preload issues, while a grinding sound suggests contamination or bearing damage. That irregular knocking? Your shaft might be imbalanced or damaged.
Vibration changes are like fever in humans—a sign something’s wrong inside. Modern vibration analysis tools can pinpoint exactly which bearing is failing, often weeks or months before catastrophic failure. It’s like having X-ray vision into your spindle’s health.
Keep an eye on those temperature readings. A sudden spike isn’t just a number—it’s a cry for help from overheating bearings or failing lubrication systems. Many shops now use infrared temperature guns to quickly check spindle temperatures during routine maintenance walks.
Your machined parts tell stories too. When surface finishes deteriorate or dimensional accuracy drifts, your spindle is leaving clues about its condition on every part it produces. These quality issues often appear before catastrophic failure, giving you a chance to act.
If tools become loose during cutting or pull out entirely, your drawbar mechanism may be failing. Regular testing of pull force ensures your tools stay exactly where they belong—firmly in the spindle.
“Most issues with machine spindles arise out of human error,” notes one industry expert. This highlights why proper training and operation procedures are as important as the mechanical components themselves.
Best Practices for Safe Operation & Long Life
Think of your spindle as an Olympic athlete—it performs at its best when properly trained, fed, and cared for. Contamination control is your first line of defense. Using positive air pressure in the spindle housing creates an invisible shield against coolant and debris. Direct your coolant toward the tool, not the spindle itself. Those labyrinth seals with positive air pressure aren’t just fancy engineering—they’re bodyguards protecting your investment.
Tool management might seem basic, but it’s fundamental. Using balanced tool holders appropriate for your operating speeds reduces stress on bearings. Always inspect pull studs before installation—a tiny nick can cause major problems. And yes, that warm-up procedure matters! Jumping straight to high speeds is like asking someone to run a marathon without stretching.
Lubrication is the lifeblood of your spindle. Automatic lubrication systems ensure consistent delivery of the right amount at the right time. Using the wrong lubricant is like putting diesel in a gasoline engine—technically it’s fuel, but disaster awaits. When servicing your spindle, purge those lubrication lines completely—old lubricant can contaminate the new.
Your spindle doesn’t exist in isolation—the environment around it matters too. Clean, filtered air for pneumatic systems, controlled humidity and temperature, and a clean workspace all contribute to spindle longevity. Those little details add up to big differences in performance and lifespan.

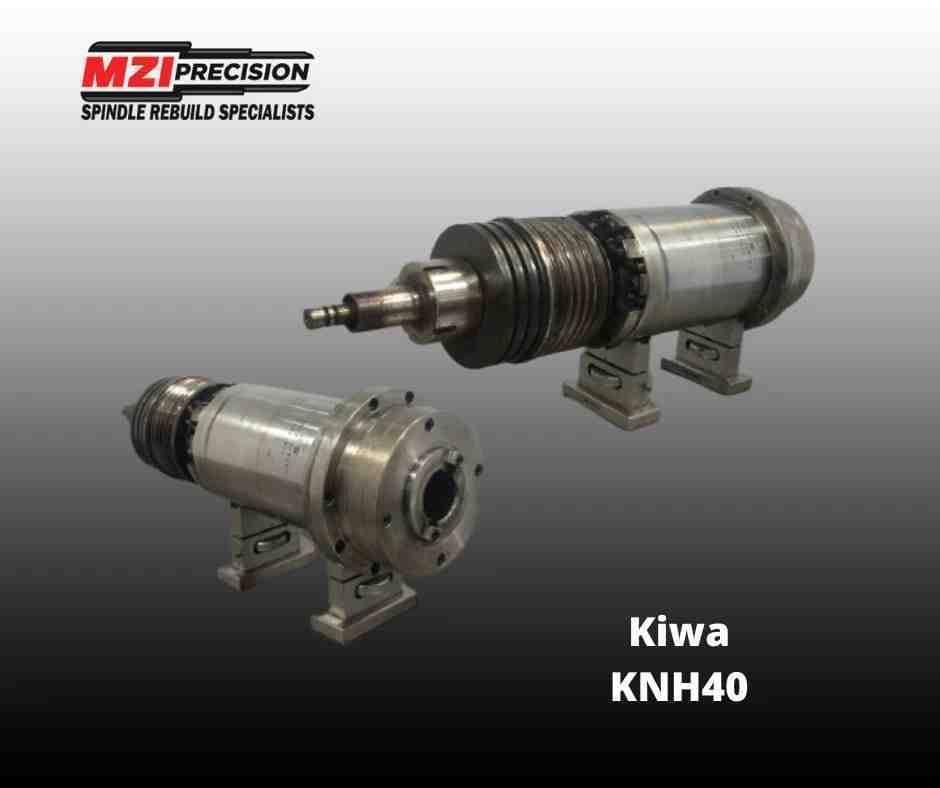

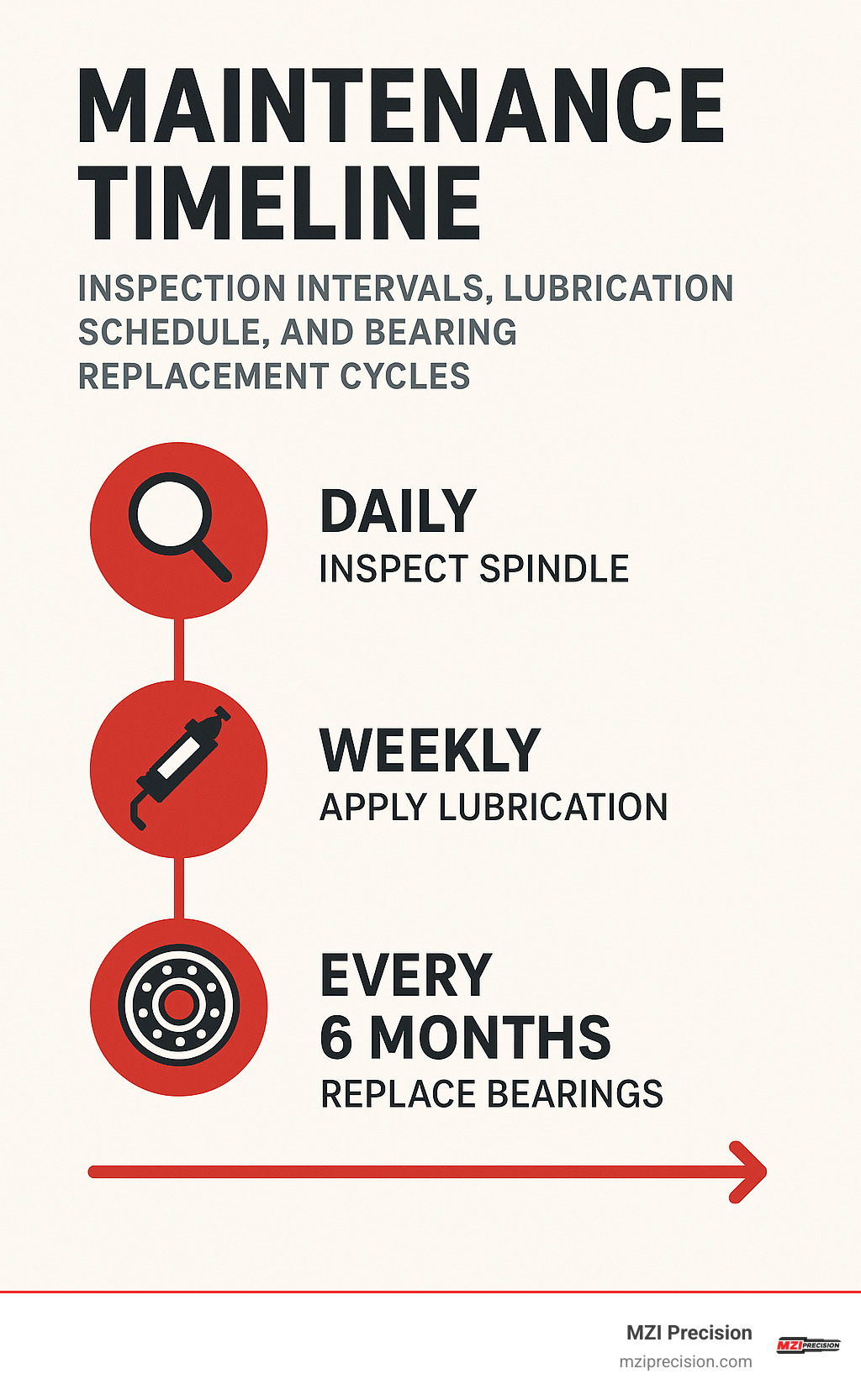

A thoughtful preventive maintenance schedule transforms spindle care from reactive to proactive. Regular vibration analysis can catch issues before they become failures. Professional inspections based on operating hours provide peace of mind. Documenting performance metrics over time helps identify gradual changes that might otherwise go unnoticed.
At MZI Precision, we’ve seen properly maintained spindles outlast their neglected counterparts by 30-50%. That’s not just longer life—it’s more production, better part quality, and significantly lower overall costs. A well-maintained CNC machine spindle assembly isn’t just a component; it’s a competitive advantage.
Innovations & Future Trends in Industrial Spindles
The world of CNC machine spindle assembly continues to evolve with new technologies enhancing performance, monitoring capabilities, and reliability.
Smart Sensors and IoT Integration: Modern spindles increasingly incorporate embedded sensors that monitor critical parameters in real-time:
– Temperature sensors at critical bearing locations
– Vibration sensors that detect developing issues
– Load sensors that measure cutting forces
– Position encoders for precise speed and position control
These sensors connect to machine control systems and even cloud platforms, enabling predictive maintenance and performance optimization. As one industry expert notes, “Integrated sensor systems and IoT-enabled ‘smart spindles’ are changing predictive maintenance.”
Advanced Materials: Ceramic hybrid bearings are becoming standard in high-performance spindles, offering:
– Reduced friction and heat generation
– Longer service life
– Higher possible speeds
– Better performance under marginal lubrication
Thermal Management Innovations: Next-generation cooling technologies include:
– Microjet cooling systems that target specific heat sources
– Phase-change cooling materials
– Integrated thermal sensors with adaptive cooling control
Air Turbine Spindles: These pneumatic spindles offer unique advantages for certain applications:
– Speeds up to 90,000 RPM
– Only two moving parts (turbine and ceramic bearings)
– No heat generation
– Constant high speeds under load
– No duty cycle limitations
Electronics & Software Inside Tomorrow’s cnc machine spindle assembly
The integration of advanced electronics and software is revolutionizing spindle performance and monitoring:
Vector Drive Systems: These sophisticated control systems allow:
– Pushing spindles to 150% of continuous power rating for 15 minutes
– Reaching 200% of continuous power for 3 minutes
– Optimizing torque across the entire RPM range
On-the-fly Wye/Delta Switching: This technology optimizes motor performance without mechanical intervention, providing ideal torque characteristics throughout the speed range.
Closed-Loop Feedback Systems: Advanced encoders and control algorithms enable:
– Real-time compensation for thermal growth
– Automatic adjustment for tool wear
– Precise speed control even under varying loads
Cloud-Based Monitoring Platforms: These systems collect data from multiple spindles to:
– Identify patterns predicting failure
– Optimize maintenance scheduling
– Benchmark performance across machine fleets
– Generate detailed health reports
Digital Twins: Some manufacturers are creating digital models of spindles that simulate performance and predict maintenance needs based on actual operating conditions.
At MZI Precision, we’re investing in these technologies to provide our customers with the most advanced spindle rebuilding services available, ensuring maximum uptime and performance.
Frequently Asked Questions about CNC Spindle Assemblies
What are the most common causes of premature spindle failure?
Let’s face it – spindles don’t last forever, but they shouldn’t fail before their time either. The number one culprit behind early spindle deaths? External contamination. When coolant, metal chips, and workshop debris sneak past your spindle’s defenses, they wreak havoc on those precision bearings.
Think of your CNC machine spindle assembly like an Olympic athlete – it needs clean conditions to perform at its best. At MZI Precision, we’ve seen countless spindles damaged by what I call the “dirty five”:
Improper lubrication tops our list after contamination. Too little lubricant causes friction and heat, while too much creates hydraulic resistance. And using the wrong type? That’s like putting diesel in a gasoline engine.
Imbalanced tooling creates vibration that pounds your bearings with every rotation. At high speeds, even minor imbalances become destructive forces.
Then there’s the dreaded crash damage – those heart-stopping moments when tool meets fixture in ways they shouldn’t. Even minor collisions can bend shafts microscopically, creating problems that grow over time.
Electrical issues and thermal stress round out our common culprits. Power problems can damage motor components, while rapid heating and cooling cycles create dimensional changes that compromise precision.
The good news? Most of these failures are preventable with proper maintenance and operation practices.
How often should bearings be replaced in a high-speed spindle?
This question reminds me of asking how often to change your car’s oil – it depends on how you drive! For spindle bearings, replacement intervals aren’t one-size-fits-all.
In busy production environments where spindles rarely rest, bearings typically show wear signs after 3-5 years. With excellent maintenance practices and gentler use, many CNC machine spindle assemblies can go 5-10 years before needing new bearings.
Rather than watching the calendar, smart shop managers monitor spindle condition. Most manufacturers suggest professional inspections every 2,000-5,000 operating hours – roughly equivalent to 1-2 years in a typical shop.
The best approach combines time-based maintenance with condition monitoring. At MZI Precision, we use vibration analysis to detect bearing wear patterns long before they cause catastrophic failures. This predictive approach allows you to schedule maintenance during planned downtime rather than suffering emergency breakdowns.
High-speed spindles operating above 15,000 RPM typically need more frequent attention than their slower counterparts. It’s like comparing highway miles to city driving – higher speeds create different wear patterns.
Can I retrofit a gear-drive spindle with a direct-drive cartridge?
Yes, you absolutely can teach an old machine new tricks! Many older gear-drive spindles can be upgraded with modern direct-drive cartridge systems. It’s like swapping an old engine for a newer, more efficient model – same car, better performance.
Before jumping into a retrofit, consider these five factors:
First, control compatibility – your existing CNC control must support the speed and feedback requirements of the new spindle. Some older controls need updates or replacements to handle modern direct-drive systems.
Second, check the mounting interface. The physical connection between machine and spindle must accommodate your new cartridge design, sometimes requiring adaptation plates or modifications.
Third, evaluate power requirements. Direct-drive spindles often need different electrical connections and cooling systems than their gear-driven predecessors.
Fourth, consider your tooling compatibility. If your retrofit includes a taper change (say, from CAT40 to HSK), you’ll need to account for tooling investments.
Finally, run a thorough cost-benefit analysis. A well-planned retrofit can breathe new life into older machines, but the investment needs to make sense for your production needs.
At MZI Precision, we’ve helped many manufacturers steer these upgrades successfully. The right retrofit can dramatically improve precision, speed, and reliability while extending machine life by years.
Conclusion
The CNC machine spindle assembly truly is the heart of precision machining. Throughout this guide, we’ve seen how these remarkable components blend sophisticated engineering, precision parts, and cutting-edge electronics to deliver the performance that modern manufacturing demands.
When you understand the inner workings of spindle design, assembly, and maintenance, you’re empowered to make smarter decisions about your equipment. Whether you’re selecting the perfect spindle for a specific application, implementing preventive maintenance practices, or recognizing those early warning signs before a catastrophic failure, knowledge is your most valuable tool.
As we look to the future, manufacturing continues its relentless march toward higher precision, greater speeds, and increasingly intelligent systems. In this evolution, cnc machine spindle assembly technology remains at the forefront of innovation. The integration of IoT sensors that monitor performance in real-time, advanced ceramic-hybrid materials that extend service life, and sophisticated control systems all promise even greater capabilities in the years ahead.
At MZI Precision, we’re passionate about staying ahead of these technological curves. Our team of spindle specialists works with manufacturers across diverse industries – from aerospace to agriculture, automotive to defense – providing the expertise needed to keep production running smoothly. With our convenient locations in Huntington Beach and Los Angeles, California, we deliver comprehensive spindle services that minimize downtime and maximize productivity.
We understand that every hour of downtime translates directly to lost revenue. That’s why we’ve built our reputation on fast, reliable service that gets your machines back into production quickly. Whether you’re facing an emergency repair situation, planning preventive maintenance, or simply need expert guidance on spindle selection, our friendly team is ready to help with clear, straightforward advice.
The decision to repair, rebuild, or replace a failing spindle isn’t always straightforward, but with MZI Precision as your partner, you’ll have the information and support needed to make the right call for your specific situation. Our rebuild process restores spindles to like-new condition, often with improvements that improve performance beyond original specifications.
