How to identify spindle part number: 3 Easy Steps

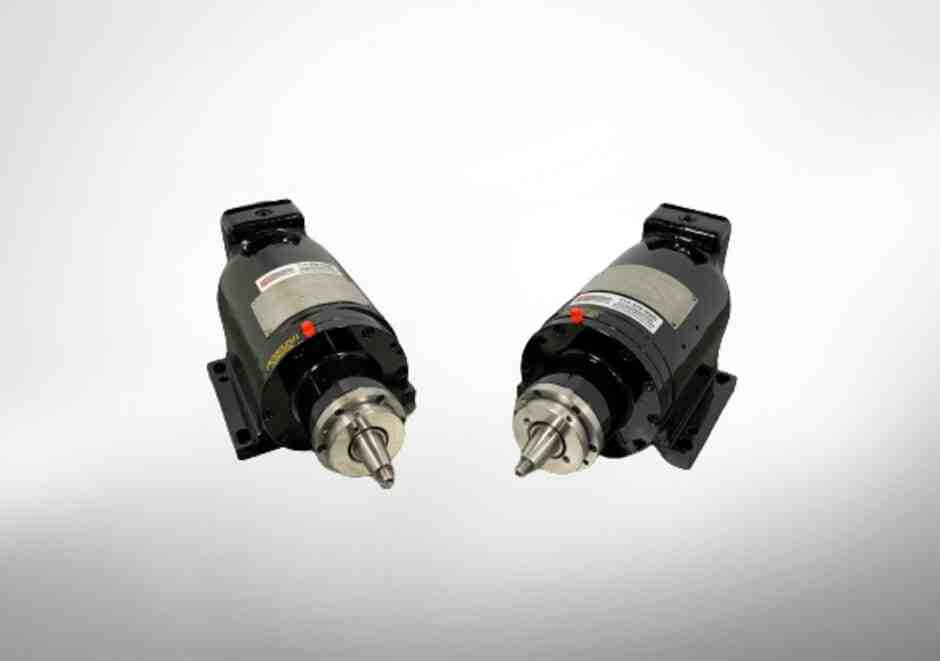

Why Identifying Your Spindle Part Number Matters

How to identify spindle part number is a critical skill for any manufacturing operation that relies on precision machining. Whether you’re dealing with a Haas, Mazak, Okuma, or any other industrial CNC machine, knowing your spindle’s exact part number is essential for ordering the right replacement parts, ensuring accurate repairs, and minimizing costly downtime.

Quick Answer: Three Main Methods to Identify Your Spindle Part Number

Direct Inspection – Check the spindle housing, motor label, or nameplate for stamped or engraved numbers
Measurement – Use digital calipers to measure critical dimensions like pilot diameter, bolt circle, and taper type
Component Analysis – Remove bearings or other components and cross-reference their part numbers to determine spindle specifications

When a spindle fails in an aerospace manufacturing facility, every minute of downtime translates to significant production losses. The challenge often begins before the repair even starts: identifying the correct spindle part number. Without this crucial information, you risk ordering wrong components, extending repair times, and compounding costs.

This guide focuses exclusively on industrial manufacturing spindles—the high-precision rotating assemblies found in CNC mills, lathes, grinders, and machining centers. We’ll walk you through proven methods to pinpoint your spindle’s identification, from reading manufacturer labels to taking precise measurements when markings have worn away.

The good news? You don’t need to be a spindle engineer to figure this out. With the right approach and a few basic tools, you can accurately identify your spindle and get your machine back to producing parts.

FIRST STEPS: DIRECT SPINDLE IDENTIFICATION

Sometimes, the simplest solution is the best: looking directly at the spindle or its associated documentation. Many industrial manufacturing spindles, particularly those from reputable OEMs, will have their part numbers clearly marked. This is our first port of call when trying to identify spindle part number.

Before we even touch a measuring tool, we always start by checking the machine’s original equipment manufacturer (OEM) documentation. This includes machine manuals, service records, and any technical drawings that came with the equipment. These documents often list the exact part numbers for major components, including the spindle assembly. If you’re lucky, the information you need will be right there, saving you a lot of guesswork!

Next, we physically inspect the spindle itself. Manufacturers often stamp, engrave, or attach a serial number tag directly onto the spindle housing or its components. Look for a small metal plate, a laser-etched code, or even raised casting numbers. These tags typically contain vital information such as the manufacturer’s name, model number, serial number, and, most importantly, the part number. Sometimes, the part number might be part of a larger serial number. We’ve seen many cases where a quick glance at a well-preserved tag gives us all the information we need.

While we can’t recommend specific external guides that might compete with our services, we encourage you to consult general spindle reference guides or the manufacturer’s own technical resources if your internal documentation is missing. These resources often provide diagrams and common part number formats that can help in your search.

CASTING NUMBERS VS. SERVICE PART NUMBERS

When you’re inspecting a spindle, you might come across various numbers. It’s crucial to understand the difference between a “casting number” and a “service part number.” They are not always the same, and misunderstanding them can lead to ordering the wrong part.

Casting numbers are typically molded directly into the metal component during the manufacturing process. These numbers often represent a sub-assembly or a specific raw component used to create the final part. They are primarily for internal tracking during the manufacturing process. For example, a single casting might be used in multiple different final spindle assemblies, each with its own unique service part number.

Service part numbers, on the other hand, are the official numbers used for ordering a complete, finished product or assembly. These are the numbers you’ll find in parts catalogs and manuals. They identify the specific part that is ready to be installed in your machine.

The reason these numbers can differ is straightforward: a manufacturer might make design changes, upgrades, or consolidate components over time. A casting number might remain constant for a basic component, while the finished service part number changes to reflect modifications or assembly variations. This is especially common with older machinery where parts books might not have been updated to reflect every minor change.

Therefore, while a casting number can provide clues, we always aim to find the service part number for accurate replacement or repair.

READING THE SPINDLE AND MOTOR LABELS

Beyond the main spindle body, the spindle motor is another key area to check for identification labels. The motor often has its own nameplate with valuable information that can indirectly help us identify the spindle assembly or provide essential details for motor-related repairs.

A typical spindle motor label will display:

Manufacturer Name: Common industrial spindle motor brands include HPB, HiGen, and Yaskawa.
Model Number: Identifies the specific motor model.
Serial Number: Unique to that particular motor unit.
Electrical Specifications: Voltage, amperage, RPM, and other critical electrical data.

Sometimes, these labels are easily visible. Other times, they might be obscured by protective covers or junction boxes (JBOX). For example, on some industrial CNC machines, you might need to access the JBOX to view the spindle motor label.

Here’s a general guide for accessing a spindle motor label if it’s hidden, keeping in mind that specific procedures may vary by machine and model:

Safety First: Always ensure the machine is powered off and locked out according to your facility’s safety protocols before attempting any work.
Locate the JBOX: The JBOX is usually a metal or plastic enclosure attached to the spindle motor, housing electrical connections.
Unbolt the Cover: Carefully unbolt and remove the JBOX cover.
Disconnect Terminals (if necessary): You might need to remove nuts securing the terminal block to lift it slightly, providing better access to the label. Be gentle and note the wiring configuration if you need to disconnect anything.
Remove Securing Screws: The JBOX itself might be secured to the motor with screws. Remove these.
Lift and Inspect: Gently lift the JBOX away from the motor to reveal the label, which is often located on the motor casing underneath.
Record Information: Take clear photos and write down all visible information, especially the brand name, model, and serial number.
Reassemble Carefully: Ensure all components are reinstalled correctly, and all screws and nuts are tightened to manufacturer specifications.

Identifying the motor brand and model can be a crucial step in troubleshooting or ordering parts, as it helps us understand the power and control aspects of the spindle system.

HOW TO IDENTIFY SPINDLE PART NUMBER THROUGH MEASUREMENT

What happens when there’s no legible part number, no accessible label, and no documentation? Don’t despair! This is where our trusty measurement tools come into play. We can often infer the spindle’s size and type by taking precise measurements of its critical dimensions. This method is particularly invaluable when dealing with older machines or spindles where markings have simply worn away over time.

Our primary tools for this task are:

Digital Calipers: These are indispensable for accurate diameter and length measurements. Their digital display makes reading precise dimensions straightforward.
Flexible Tape Measure: Useful for measuring circumferences, which can then be converted to diameters.

When a direct part number is elusive, we focus on the physical characteristics that define a spindle’s interface with other components, such as bearings, chucks, or tool holders. These measurements, when compared against industry standards, allow us to pinpoint the correct size and type. For example, by measuring the bearing locations, we can determine the inner diameter (ID) of the bearings, which directly corresponds to the spindle diameter at those points.

MEASURING FOR COMMON SPINDLE NOSE TYPES

Industrial manufacturing spindles come in various standardized configurations, primarily to ensure interchangeability with chucks and other workholding devices. The most common spindle nose types we encounter are:

D1 Camlock
A1/A2 Short Taper
L Type Long Taper

These types adhere to international standards such as DIN (Deutsches Institut für Normung) and ISO (International Organization for Standardization), ensuring consistent dimensions across manufacturers. Knowing which type you have is the first step, and then taking specific measurements helps us determine the exact size within that type.

IDENTIFYING D1 CAMLOCK SPINDLES

D1 Camlock spindles are easily recognizable by their camlock pins that secure the chuck. To identify the specific D1 size, we need to take a few key measurements:

Pilot Diameter (B): This is the critical diameter of the central boss that pilots the chuck. It’s essential for centering the chuck accurately.
Bolt Circle Diameter (F): Measure the diameter of the circle on which the centers of the camlock pin holes lie.
Hole Diameter (E): Measure the diameter of the camlock pin holes themselves.

Once we have these measurements, we compare them to a standardized chart. For instance, a D1-3 spindle will have a pilot diameter (B) around 2.1250 inches, a bolt circle diameter (F) of approximately 2.7820 inches, and hole diameters (E) of about 0.5937 inches. Larger sizes like D1-4, D1-5, and so on, will have progressively larger dimensions for these features. Precise measurements are key to avoid errors.

IDENTIFYING A1/A2 SHORT TAPER SPINDLES

A1/A2 Short Taper spindles are characterized by a short, steep taper and bolt holes for securing the chuck. They are specified by standards like DIN 55026 and ISO 702/I. To identify these, we focus on:

Pilot Diameter (B): Similar to Camlock, this is the diameter of the central pilot.
Bolt Circle Diameters (F1 & F2): A1/A2 spindles can have one or two bolt circles. F1 is the main bolt circle, and F2 (if present) is typically smaller.
Hole Diameters (E1 & E2): The diameters of the bolt holes.
Number of Bolt Circles: This is important for distinguishing between A1 and A2 mounts. A1 mounts typically have two bolt circles, while A2 mounts have one. A crucial point to remember is that A2 mount chucks can be installed on either A2 or A1 spindle noses, but A1 mount chucks can only be installed on A1 spindle noses.

For example, an A-4 spindle might have a pilot diameter (B) around 2.5005 inches and a main bolt circle diameter (F1) of 3.2500 inches, with threaded holes (E1 & E2) often being 7/16-14 UNC-3B. We carefully compare our measurements to detailed specification tables to determine the exact A-size.

IDENTIFYING L TYPE LONG TAPER SPINDLES

L Type Long Taper spindles, sometimes called L Type Long Taper Key Drive spindles, feature a long, gentle taper and are secured by a large threaded nut on the spindle nose, often with a keyway for torque transmission. These are identified by:

Pilot Diameter (A): The diameter at the largest end of the taper.
Spindle Length (C): The overall length of the tapered section.
Thread Size (B): The diameter and pitch of the external thread on the spindle nose, which typically secures a drawbar nut or chuck.

These spindles are less common on modern CNC equipment but are still found on many traditional lathes. An L0 spindle, for instance, typically has a pilot diameter (A) of 3.250 inches, a length (C) of 2 3/8 inches, and a thread size (B) of 4 1/2″ – 6″. The presence of a key drive feature also helps confirm this type. Accurate measurement of these three parameters is essential for correct identification.

USING ASSOCIATED COMPONENTS TO FIND YOUR SPINDLE SIZE

When direct identification fails, and even precise measurements of the spindle nose aren’t enough to definitively identify spindle part number, we turn to an indirect but highly effective method: examining associated components, particularly the bearings. The bearings are the heart of the spindle, and their part numbers directly correspond to the spindle’s journal diameters.

This approach is an excellent fallback strategy. Spindle bearings are manufactured to very tight tolerances and often have industry-standard part numbers stamped directly on them. By identifying these bearing numbers, we can cross-reference them to determine the exact size and specifications of the spindle journals they fit. This method is especially useful if the spindle itself is still installed in the machine, but you can access and remove the bearings.

HOW TO IDENTIFY SPINDLE PART NUMBER FROM BEARINGS

Identifying your spindle’s size from its bearings is a common and reliable practice. Here’s how we approach it:

Safe Bearing Removal: This is critical. Depending on your spindle design, bearings may be pressed on or held in place by retaining nuts. Always consult your machine’s service manual for the correct procedure for safe and damage-free bearing removal. If you’re unsure, it’s always best to consult with a professional.
Locate the Bearing ID Number: Once the bearings are safely removed, carefully inspect them. Most industrial bearings have their identification numbers, sometimes called “bearing ID numbers,” stamped, etched, or laser-marked on one of their races (the inner or outer ring). These numbers can sometimes be small or obscured by grease or wear, so good lighting and a magnifying glass are your friends here.
Record and Cross-Reference: Carefully write down the full bearing part number. This number is your golden ticket. You can then use this number to look up the bearing’s specifications, including its inner diameter (ID). The inner diameter of the bearing is the exact diameter of the spindle journal it fits. This directly tells you the spindle size at that location.

Many industrial spindles, especially those with tapered journals, use two different-sized bearings – an inner bearing and an outer bearing. Make sure to identify the part numbers for both if applicable.

COMMON INDUSTRY BEARING NUMBERS AND SPINDLE SIZES

The bearing industry uses standardized part numbers that directly correlate to specific dimensions, including the inner diameter. By knowing these common part numbers, we can quickly deduce the spindle journal size. While a comprehensive list would be extensive, here are some examples of common bearing part numbers and their corresponding spindle journal diameters:

Spindle Journal Diameter (Fractional)	Spindle Journal Diameter (Decimal)	Common Industry Bearing Part Number
¾”	0.75”	LM11949
1”	1.00”	L44643
1 1/16”	1.0625”	L44649
1 ¼”	1.25”	LM67048 or 15123
1 ⅜”	1.375”	L68149
1 ¾”	1.75”	25580

This table illustrates how a bearing part number, such as “L68149,” immediately tells us that the spindle journal it fits is 1 ⅜” (1.375 inches) in diameter. These standard numbers are invaluable when trying to identify spindle part number or size indirectly. For tapered spindles, you’ll likely have two different bearing numbers, corresponding to two different journal diameters on the spindle.

FREQUENTLY ASKED QUESTIONS ABOUT SPINDLE IDENTIFICATION

We often get asked similar questions regarding spindle identification. Here are some of the most common ones we encounter:

WHAT’S THE EASIEST WAY TO DETERMINE MY SPINDLE TYPE AND SIZE IF THE PART NUMBER IS GONE?

If the part number is completely gone or unreadable, the easiest and most reliable way to determine your spindle type and size is through direct measurement. First, safely remove any attached chuck or adapter plate from the spindle nose. Then, use a high-precision digital caliper to measure the critical dimensions of the spindle nose. This includes the pilot diameter, bolt circle diameters, hole diameters, and thread sizes, depending on whether it’s a D1 Camlock, A1/A2 Short Taper, or L Type Long Taper spindle. Compare these measurements against standardized charts for these common spindle nose types. This hands-on approach bypasses the need for a visible part number and relies on the universal dimensions of industrial standards.

HOW DO I IDENTIFY THE SPINDLE PART NUMBER IF IT’S WORN OR UNREADABLE?

When the part number is worn, obscured, or completely unreadable, direct identification isn’t possible. In such cases, we must rely on indirect methods. As discussed, two primary approaches are effective:

Precise Measurement: Use a digital caliper to measure the spindle’s critical dimensions, such as bearing journal diameters, pilot diameter, bolt circle, and taper angles. These measurements can be cross-referenced with manufacturer specifications or industry standards to determine the spindle’s size and type.
Component Analysis (Bearings): Safely remove the spindle bearings. Most industrial bearings have their part numbers stamped on them. Once you have these bearing ID numbers, you can look up their specifications, particularly their inner diameter (ID). This bearing ID directly correlates to the diameter of the spindle journal they fit, effectively telling you the spindle’s size.

Combining these indirect methods often provides enough information to accurately identify the spindle or its necessary specifications for repair or replacement.

DOES THE SPINDLE MOTOR BRAND HELP IDENTIFY THE SPINDLE PART NUMBER?

Identifying the spindle motor brand, such as HPB, HiGen, or Yaskawa, is incredibly helpful for specifying the motor component itself and for any motor-related troubleshooting or repair. However, it’s important to understand that the mechanical spindle assembly typically has a separate part number from the motor. While the motor drives the spindle, they are distinct components, often sourced from different manufacturers or assembled as separate units by the machine builder.

So, while knowing the motor brand is vital for motor repairs, it usually won’t directly provide the part number for the mechanical spindle shaft, housing, or bearing system. For a complete picture of the spindle assembly, you’ll need both the motor’s identification and the mechanical spindle’s part number, which you’d find through direct inspection or measurement of the spindle itself.

CONCLUSION

Successfully identifying your spindle part number is more than just a technical task; it’s a critical step in maintaining the efficiency and longevity of your industrial manufacturing operations. We’ve explored various methods, from the straightforward direct inspection of labels and documentation to the meticulous process of taking measurements and analyzing associated components like bearings. Each method has its place, and often, a combination of approaches is needed to pinpoint that elusive part number.

The importance of precision cannot be overstated. An incorrectly identified spindle or part can lead to costly delays, improper repairs, and further damage to your valuable machinery. While these how-to guides empower you with actionable steps, there are times when the complexity of a spindle, the severity of wear, or the lack of clear information warrants expert intervention.

That’s where MZI Precision comes in. With extensive expertise in OEM rebuilt spindles and a deep understanding of various industrial manufacturing spindle types, we are equipped to handle even the most challenging identification and repair scenarios. We serve a wide range of industries, including aerospace, agriculture, automotive, defense/military, and solar energy, right here in the United States, including our locations in California. Our commitment is to provide exceptional service and support, ensuring your spindles are repaired accurately and efficiently, minimizing your downtime.

Don’t let an unidentified spindle bring your production to a halt. When in doubt, or when you need expert assistance, we’re here to help.
