How to check spindle runout is crucial knowledge for anyone in the field of industrial manufacturing. Don’t have time to dive into the details? Here’s a quick rundown:
- Use a dial test indicator: Check the measurement at multiple points along the tool.
- Use a magnetic holder: This ensures stability during your assessment.
- Measure along the spindle taper: This helps identify specific inaccuracies.
Understanding spindle runout is vital for maintaining tool life and ensuring precision in manufacturing. This common issue refers to the deviation from the ideal axis when your spindle rotates. Even the smallest amount of runout can lead to significant problems like uneven wear and reduced lifespan of cutting tools. As the saying goes, “It’s always less expensive to rebuild or repair a running spindle near the end of its life than to repair one that’s catastrophically failed.”
For industries like aerospace, maintaining efficient and precise machinery is critical. When spindle runout goes unchecked, it can significantly affect productivity and precision. We will explore how to diagnose and mitigate spindle runout, ensuring that your machines—and business—run smoothly.
Understanding Spindle Runout
Spindle runout is a critical factor in industrial manufacturing, especially for those aiming to maintain precision and extend tool life. But what exactly is spindle runout? Simply put, it’s the deviation from the ideal axis of rotation. When a spindle doesn’t rotate perfectly, it can lead to uneven wear, tool breakage, and reduced efficiency.
Circular Runout vs. Total Runout

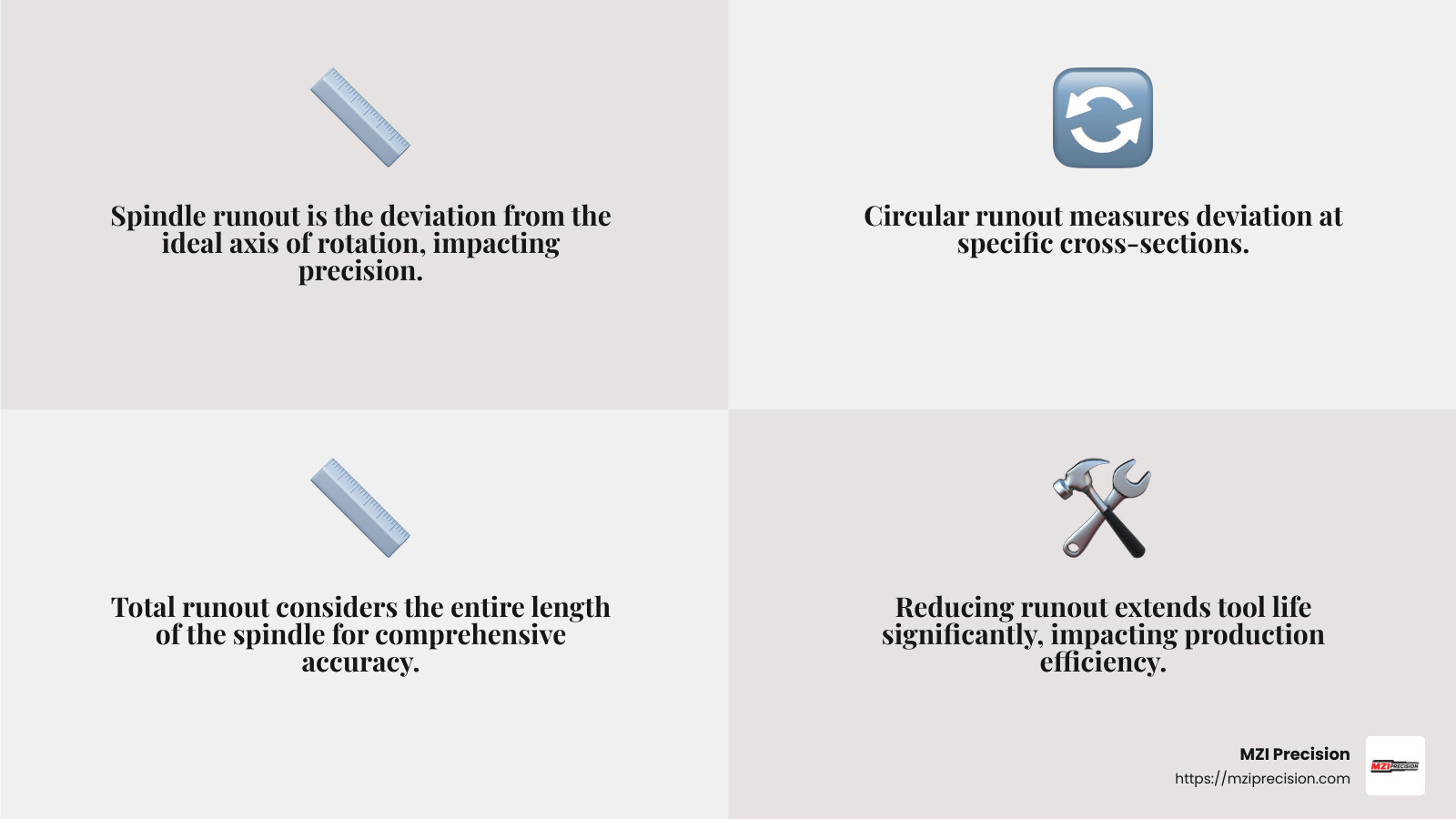

To understand spindle runout, we need to look at two key types: circular runout and total runout. These are concepts rooted in Geometric Dimensioning and Tolerancing (GD&T), which is the science of defining allowable errors in manufacturing.
Circular Runout measures the deviation at specific circular cross-sections of a part. Imagine slicing a cylinder like a loaf of bread and checking each slice for wobble. This type of runout is crucial when you need precision at particular points along the spindle.
Total Runout, on the other hand, considers the entire length of the spindle. It’s like running your hand along the whole loaf to feel for any irregularities. Total runout gives a more comprehensive view of the spindle’s accuracy.
The Role of GD&T
GD&T plays a significant role in defining and controlling spindle runout. It provides a standardized language for specifying the geometry of parts and their allowable variations. By using GD&T, manufacturers can ensure that components fit together as intended, reducing errors and improving overall quality.
In industrial manufacturing, understanding these concepts is essential. For instance, a toolholder with excessive runout can add to the chipload, leading to premature tool wear. As noted by experts, reducing runout even by a tiny fraction can significantly extend tool life.
By mastering the concepts of circular and total runout, along with GD&T, manufacturers can better diagnose and mitigate spindle runout issues. This not only improves precision but also optimizes the lifespan and performance of cutting tools.
Next, we’ll dig into the practical steps of measuring spindle runout, helping you take control of your machinery’s accuracy and efficiency.
How to Check Spindle Runout
Checking spindle runout is essential for ensuring precision in industrial manufacturing. Let’s explore the methods and tools used to measure and identify sources of spindle runout.
Measuring Spindle Runout
Dial Test Indicator and Magnetic Holder
To measure spindle runout, you’ll need a dial test indicator and a magnetic holder. These tools help you detect deviations from the ideal axis of rotation in a spindle.
-
Set Up the Indicator: Attach the dial test indicator to a magnetic holder. Position it so that the indicator’s tip touches the spindle surface you want to measure.
-
Rotate the Spindle: Carefully rotate the spindle by hand. Watch the dial to see how much it moves. This movement indicates the Total Indicated Runout (TIR).
-
Record the Measurements: Note the highest and lowest readings on the dial. The difference between these readings is your runout measurement.
Using a dial test indicator and magnetic holder is a straightforward way to measure spindle runout. It helps you determine if the spindle is rotating accurately or if adjustments are needed.
Identifying Runout Sources
Spindle Taper, Toolholder, and ER Collet Chuck
Runout can originate from several sources in the spindle assembly. Identifying these sources helps in troubleshooting and reducing runout.
-
Spindle Taper: This is the interior surface where the toolholder fits. Any imperfections here can cause runout. You can measure it by placing a precision dowel in the spindle and using the dial test indicator.
-
Toolholder: Runout might also come from the toolholder itself. To check this, insert a precision dowel into the toolholder and measure the runout. If the toolholder is the culprit, consider a replacement or a thorough cleaning.
-
ER Collet Chuck: This is another area to inspect. Measure the runout with no collet installed to isolate the toolholder’s runout. ER collet chucks typically have less runout compared to other holders, like drill chucks.
Toolholder Runout, Collet Runout, and Endmill Geometry
Each component can contribute to the overall runout:
-
Toolholder Runout: Ensure the toolholder is free from burrs and debris. Even minor imperfections can lead to significant runout.
-
Collet Runout: Collets should be inspected for wear and damage. A worn collet can introduce additional runout.
-
Endmill Geometry: Sometimes, the endmill itself might be off-center due to manufacturing defects. Use a precision gauge pin for accurate measurement.
By understanding and measuring these components, you can better diagnose and reduce spindle runout. This not only improves machining accuracy but also extends the life of your cutting tools.
Next, we will explore the impact of runout on tool life and how it can affect your manufacturing processes.
Impact of Runout on Tool Life
When it comes to industrial manufacturing, spindle runout is more than just a minor inconvenience—it can significantly affect tool life and machining efficiency. Let’s break down how runout impacts your tools and what you can do about it.
Chipload and Tool Breakage
Runout is essentially the wobbling of the tool as it spins, which means the tool is not cutting evenly. This leads to an uneven chipload, or the amount of material removed per tooth of the cutter.
Imagine you’re slicing bread with a dull knife. Some parts of the knife cut deeper than others, leaving uneven slices. Similarly, when runout occurs, some flutes of the tool take bigger bites than others. This uneven chipload can cause:
- Increased Stress on Tools: Uneven cutting leads to increased stress on certain parts of the tool, causing premature wear and tear.
- Tool Breakage: Smaller cutters are particularly vulnerable. If the chipload exceeds the tool’s capacity, it can break, leading to downtime and increased costs.
Big Kaiser Case Study

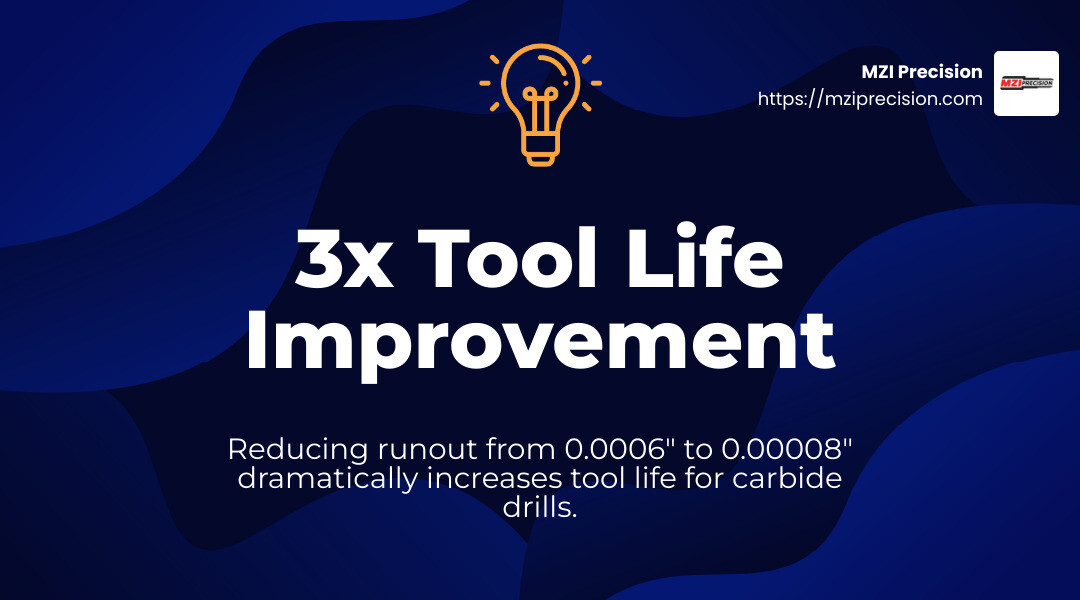

A notable study by Big Kaiser highlights the dramatic impact of reducing runout. By minimizing runout from 0.0006″ to a mere 0.00008″, they achieved a threefold increase in tool life for carbide drills.
This case study underscores the importance of precision in spindle alignment. Even tiny improvements can lead to significant gains in tool longevity and performance.
The Domino Effect
Runout doesn’t just affect the tool itself—it has a cascading effect on the entire machining process. Here’s how:
- Inconsistent Cuts: With uneven chiploads, the surface finish of the material suffers, leading to additional finishing work.
- Increased Vibrations: Runout causes vibrations, which further degrade tool performance and can lead to inaccuracies in the final product.
- Higher Costs: More frequent tool replacements and additional machining time increase operational costs.
By understanding the impact of runout on tool life, you can take proactive steps to minimize it. This not only saves money but also improves the quality and precision of your manufacturing processes.
Next, we’ll look at some practical tips to improve spindle runout and keep your tools in top shape.
Tips to Improve Spindle Runout
Spindle runout can be a silent productivity killer in industrial manufacturing. But don’t worry; there are practical steps you can take to improve it. Let’s explore some actionable tips.
Clocking Toolholders
One effective method to reduce spindle runout is clocking toolholders. This involves aligning the toolholder’s highest runout point opposite the spindle’s highest runout point. Here’s how you can do it:
- Identify Maximum Runout Points: Use a dial test indicator to find the maximum runout point on both the spindle and the toolholder.
- Mark the Points: Mark these points with a Sharpie for easy reference.
- Align Oppositely: When inserting the toolholder, align its mark opposite the spindle’s mark. This helps in canceling out some of the runout.
By clocking toolholders, you create a more balanced system, which can significantly reduce runout.
Cleanliness is Key
Cleanliness is crucial in maintaining low runout levels. Dirt and debris can cause misalignment and increase runout. Regularly clean:
- Spindle Tapers: Ensure no dirt or debris is present before mounting toolholders.
- Toolholders: Keep them free from contaminants that could affect alignment.
A clean setup reduces friction and wear, leading to more accurate machining.
Manage Tool Stickout
The length of the tool sticking out from the holder, known as tool stickout, affects runout. Here’s why:
- Shorter Stickout: Reduces leverage and vibration, minimizing runout.
- Longer Stickout: Increases the chance of runout due to added leverage.
Always aim for the shortest possible tool stickout for the job to maintain precision.
Spindle Orientation and Drive Dogs
Spindle orientation isn’t just for aligning drive dogs with toolholder notches; it’s also about consistency. As Dave Decaussin of Fadal notes, consistent spindle positioning ensures runout remains predictable. This predictability allows for compensation in machining processes.
- Drive Dogs: Ensure they align correctly to maintain consistent toolholder positioning.
Retention Knobs
Don’t overlook retention knobs; they play a vital role in securing the toolholder. Worn or poorly manufactured knobs can introduce additional runout. Regularly inspect and replace them to ensure a firm, aligned grip.
By focusing on these areas, you can significantly reduce spindle runout, leading to better tool life and improved machining accuracy. Next, we’ll answer some frequently asked questions about spindle runout to further improve your understanding.
Frequently Asked Questions about Spindle Runout
Understanding spindle runout is crucial for maintaining precision in industrial manufacturing. Here, we’ll address some common questions to help you get a clearer picture.
What is the acceptable runout of a spindle?
In industrial manufacturing, tolerance control is key. The acceptable runout of a spindle varies depending on the specific application and the precision required. Generally, for high-precision tasks, runout should be as minimal as possible, often within a few tenths of a thousandth of an inch. Using a dial gauge can help measure this accurately. Regular checks ensure that your spindle operates within these acceptable limits, maintaining the quality of your machining work.
How do you test for runout?
Testing for spindle runout involves a few straightforward steps:
- Insert a Precision Test Bar: Begin by inserting a precision test bar into the spindle.
- Use a Dial Indicator: Attach an indicator to measure the Total Indicated Runout (TIR).
- Rotate the Spindle: As you rotate the spindle, watch the dial indicator. Any deviation in the reading indicates runout.
Regularly testing for runout ensures your spindle remains within acceptable parameters, reducing the risk of tool wear and improving machining accuracy.
What is spindle runout?
Spindle runout refers to the inaccuracies that cause a tool or workpiece to deviate from the ideal rotational axis. This deviation, or axis deviation, can lead to machining inaccuracies, affecting the quality of the finished product. Runout is typically caused by factors such as misaligned components or imperfections in the spindle or toolholder. Understanding and controlling spindle runout is essential for precise and efficient industrial manufacturing operations.
By addressing these key questions, you can better manage spindle runout, ensuring optimal performance and accuracy in your machining processes.
