A Comprehensive Guide to Machine Tool Spindle Design

Overview & Importance of Spindle Design

When you’re in the aerospace industry or any other sector that relies heavily on machining, knowing about spindle design is crucial. Simply put, the spindle is the heart of a machine tool. It holds and rotates the cutting tool or workpiece at high speeds. The design of a spindle affects not only how well your machine operates but also the quality of your products and the efficiency of your production.

  • Speed: How fast the spindle can rotate.
  • Accuracy: The precision of the rotation and cutting.
  • Reliability: How consistently the spindle performs over time.
  • Cost: Initial investment and maintenance over the spindle’s life.

Choosing the right spindle design comes down to understanding the demands of your specific application, whether it’s high-speed drilling, heavy-duty milling, or another machining process.

In short, the better the spindle design, the better your machine tool performs. Good spindle design means achieving optimal speed and accuracy while ensuring reliability and keeping costs in check.

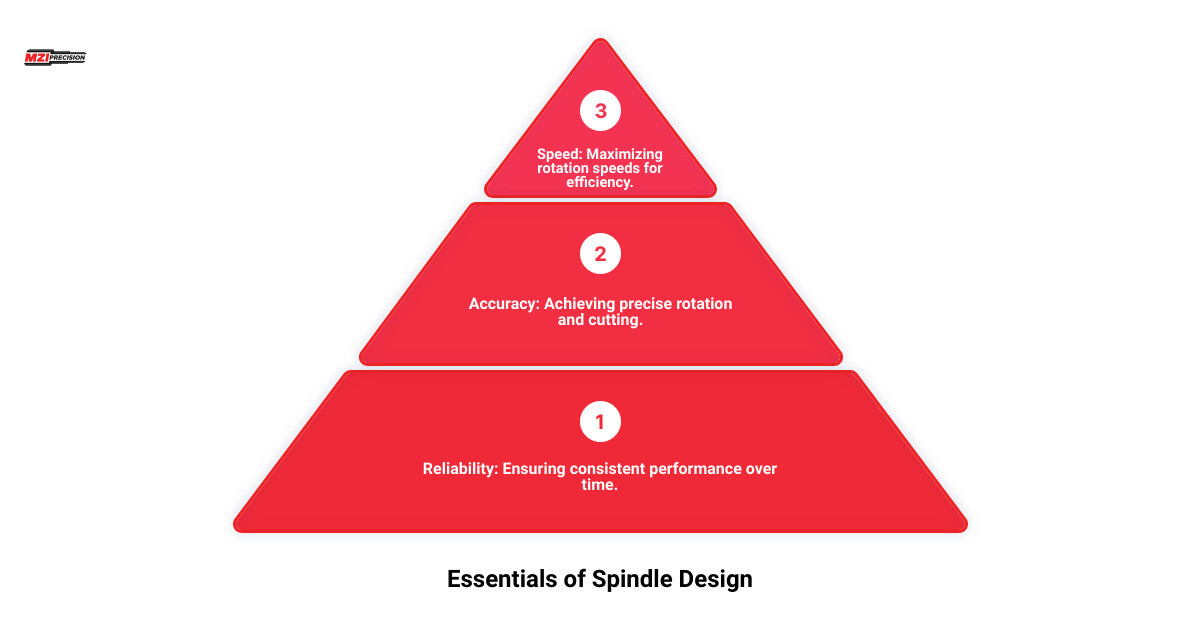

Detailed infographic on spindle design showing types of spindles, their features, benefits, and applications - machine tool spindle design infographic 3_stage_pyramid

By selecting the appropriate spindle design, businesses in manufacturing, especially within the aerospace industry, can significantly improve their operations’ efficiency and output quality. MZI Precision stands ready to support you with expert spindle repair and rebuilding services, ensuring that your machining tools perform at their highest level.

Understanding Spindle Design

When we dive into machine tool spindle design, we’re looking at the heart of the machine. It’s what makes the cut, shapes the piece, and ultimately determines the quality of your work. Let’s break it down into simpler parts: materials, geometry, construction, purpose, and how these factors play into high-speed, accuracy, reliability, and minimizing costs.

Materials

The choice of material for a spindle impacts its strength, durability, and performance. High-grade steel is often used for its toughness and ability to withstand the high-speed rotations without deforming. In some cases, ceramics or special alloys might be chosen for their lightweight properties or resistance to heat and wear.

Geometry

The shape and size of a spindle are not random. They are carefully calculated to match the needs of the machine and the work it will do. A spindle’s geometry affects its balance, speed capabilities, and how much load it can handle. The goal is to design a spindle that minimizes vibration and maximizes precision.

Construction

How a spindle is put together matters a lot. This includes how bearings are fitted, how the spindle is connected to the motor (directly or via a belt), and how tools are held in place. Each of these elements needs to work seamlessly together to produce a spindle that operates smoothly at high speeds and under heavy loads.

Purpose

The main job of a spindle is to hold and rotate the cutting tool or the workpiece at the required speed and precision. But that’s not all. Spindles also need to transfer power efficiently, withstand operational stresses, and sometimes even cool the tool or workpiece during operation.

High-speed

For a spindle to operate at high speeds, it needs to be exceptionally well-balanced and supported by precise bearings. High-speed operations demand spindles that can maintain accuracy without generating excessive heat or vibration.

Accuracy

The precision of a spindle affects the accuracy of the machining process. Factors like bearing quality, spindle alignment, and tool holding capability all play into how accurately a spindle can position and move the tool or workpiece.

Reliability

Downtime is costly. That’s why reliability is a key consideration in spindle design. Choosing the right materials, construction methods, and maintenance strategies can help ensure that a spindle keeps running smoothly for as long as possible.

Minimizing Costs

Designing a spindle isn’t just about achieving the best performance. It’s also about doing so at a reasonable cost. This means selecting materials and construction methods that provide the best balance of performance and price. It also means designing spindles that are easy to maintain and repair, to reduce downtime and extend their useful life.

machine tool spindle assembly - machine tool spindle design

In summary, machine tool spindle design is a complex balancing act. It requires a deep understanding of materials science, mechanical engineering, and the specific needs of the machining tasks the spindle will perform. Getting it right can make a huge difference in the efficiency, quality, and cost-effectiveness of manufacturing operations. And when you need help with spindle repair or rebuilding, MZI Precision is here to support you every step of the way.

Let’s now look into the different types of spindles and how to choose the right one for your application.

Types of Spindles

In machine tool spindle design, choosing the right type of spindle is key to achieving the best performance for your specific application. Let’s dive into the four main types of spindles: belt-driven, direct-drive, hydraulic, and pneumatic. We’ll explore their costs, motor types, wear and replacement considerations, speed limitations, and more.

Belt-driven Spindles

Cost: Belt-driven spindles are generally the most cost-effective option. They are simpler in design and use standard motors, which keeps the initial investment lower.

Motor Types: These spindles can work with a variety of motor types, giving you flexibility in choosing the right motor based on your application’s power and speed requirements.

Wear and Replacement: The belts and pulleys in these spindles are subject to wear over time and will require periodic replacement. This is a key consideration for maintenance planning.

Speed Limitations: Belt-driven spindles have lower maximum speeds compared to direct-drive spindles. This might limit their use in high-speed applications.

Direct-drive Spindles

Gearbox Connection: Direct-drive spindles are connected to the motor via a gearbox, eliminating the need for belts. This design can handle higher speeds and offers more precision.

Durability and Maintenance: With fewer moving parts than belt-driven spindles, direct-drive spindles are more durable and require less maintenance, making them a more reliable choice for demanding applications.

Speed Capabilities: These spindles can achieve higher speeds and are better suited for high-speed machining tasks, offering greater productivity and efficiency.

Hydraulic Spindles

Hydraulic Fluid: Hydraulic spindles use hydraulic fluid to transfer power, which allows for smooth and precise control over spindle speed and torque.

Cost and Durability: While typically more expensive than belt-driven or direct-drive spindles, hydraulic spindles offer superior durability and performance, especially in applications requiring high torque.

Speed Achievements: These spindles can achieve high speeds and maintain them consistently, making them ideal for applications requiring both power and precision.

Pneumatic Spindles

Compressed Air: Pneumatic spindles use compressed air to operate, which can be a cost-effective power source in many industrial environments.

Cost-effectiveness: Generally less expensive than hydraulic spindles, pneumatic spindles offer a good balance of cost and performance for certain applications.

Speed Potential: While they can achieve high speeds, pneumatic spindles may not offer the same level of torque and precision as hydraulic spindles. However, they are well-suited for light-duty applications where high speed is more critical than high torque.


Selecting the right spindle involves considering your specific needs, including the speed, torque, power, stiffness, and cost considerations of your application. Each type of spindle has its unique advantages and limitations, so understanding these will help you make an informed decision. And remember, when it comes to spindle repair or customization, MZI Precision is here to help you find the perfect solution for your machining needs.

Key Components of a Spindle Assembly

When we dive into the heart of machine tool spindle design, we find several critical components that ensure everything works smoothly. Let’s break these down into easier bits:

Rotating Shaft

This is the core of the spindle, literally. It’s the part that spins, doing the heavy lifting by holding and turning the tool or workpiece. Think of it as the main character in the story of machining.

Internal/External Motor

Motors are what give the shaft its spin. An internal motor is tucked inside the spindle, making the design compact and suited for high-speed operations. An external motor, on the other hand, sits outside and drives the spindle via belts or gears. It’s typically used when more torque is needed.

Bearing System

Bearings are the unsung heroes. They support the rotating shaft, allowing it to spin freely with minimal friction. Properly chosen bearings are vital for high precision and longevity of the spindle.

Housing

The housing is like the protective shell. It holds all the other parts together and can provide additional features like lubrication channels and cooling jackets. It also plays a crucial role in dampening vibrations – keeping everything steady.

Drawbar Mechanism

Imagine you need to hold onto something really tightly and not let go. That’s what the drawbar does for the tool attached to the spindle. It’s a clamping mechanism ensuring the tool doesn’t fly off while spinning.

Drive System

This includes the gears, belts, or direct connections that transfer power from the motor to the spindle shaft. The choice here affects the spindle’s speed and torque capabilities.

Lubrication

Just like any moving part, spindles need lubrication to reduce wear and tear. This can be done through grease, oil, or even air-oil mist systems. Proper lubrication is key to a spindle’s health and performance.

Cooling Jackets

Things can get pretty hot when you’re machining at high speeds. Cooling jackets help manage the temperature, keeping the spindle at optimal performance levels and preventing overheating.

Vibration Dampening

Vibrations can be a big problem, causing noise and reducing the quality of your work. The spindle’s design often includes features to reduce these vibrations, ensuring smoother operations.

In summary, each component in a spindle assembly has a specific role that contributes to the overall performance of a machine tool. From the heart-pounding action of the rotating shaft to the silent strength of the bearing system, and the protective embrace of the housing – every part matters. And when it comes to ensuring these components work harmoniously, MZI Precision stands ready to lend their expertise, whether you’re in need of a repair or looking to build a spindle from scratch. With a deep understanding of machine tool spindle design, they’re your go-to for keeping your machining operations running at peak performance.

Moving forward, let’s explore how these components come together to meet the demands of modern machining in the next section.

Trends in Machine-Tool Spindle Design

The world of machine-tool spindle design is evolving rapidly, driven by several key trends. These changes are reshaping how spindles are made and used, impacting everything from their design and functionality to their integration into broader manufacturing systems. Let’s dive into these trends.

Globalization and Standardization

As the machine-tool industry becomes more global, manufacturers are pushing for standardized components and systems. This makes it easier to sell and service machines worldwide. For spindle design, this means a move towards designs that can be easily adapted or used in different types of machinery, regardless of where they are being operated.

Productivity and Flexibility

There’s a constant drive to boost productivity. This means spindles that can operate at higher speeds, with greater power density, and without sacrificing accuracy. Flexibility is also crucial. Modern spindles are being designed to handle a variety of operations – from drilling to milling to grinding – without needing significant downtime for changes.

Multipurpose Operations and High-speed Operations

Multipurpose functionality is becoming a standard expectation. Spindles that support multipurpose operations reduce the need for multiple machines, saving both space and cost. Alongside this, there’s a push for high-speed operations. Spindles capable of running over 20,000 rpm, and in some cases, up to 40,000 rpm, are on the rise. This is particularly important for industries like aerospace and automotive, where precision and efficiency are key.

SKF Developments

Companies like SKF are at the forefront of spindle innovation. They’ve invested heavily in developing technology that pushes the boundaries of spindle performance. This includes everything from high-precision bearings to advanced lubrication systems, all designed to enhance speed, accuracy, and reliability.

Motorized Spindle Units

Motorized spindle units are becoming the go-to for high-performance machine tools. These units integrate the motor directly with the spindle, leading to better dynamic behavior, higher torque, and higher speeds. This design simplifies the spindle assembly and reduces the overall footprint.

High Precision Bearings and Lubrication Systems

Bearings are critical for spindle performance. High precision bearings are now being designed to withstand the demands of high-speed operations, minimizing wear and tear and extending the lifespan of the spindle. Advanced lubrication systems ensure these bearings operate smoothly, reducing the risk of overheating and failure.

Spindle Monitoring

Lastly, spindle monitoring technology is becoming more sophisticated. Sensors and diagnostic tools are being integrated into spindles, allowing for real-time monitoring of performance. This can predict failures before they happen, reducing downtime and maintenance costs.

In conclusion, the trends in machine-tool spindle design are clear: more speed, more flexibility, and more intelligence. As these trends continue to evolve, they will define the future of machining, making it faster, more efficient, and more adaptable to the changing needs of industries worldwide. With companies like MZI Precision leading the way in spindle repair and rebuilding, machine tools can stay at the cutting edge of these developments, ensuring optimal performance and longevity.

Moving forward, selecting the right spindle for your application will be crucial to leveraging these trends for your manufacturing success.

Selecting the Right Spindle for Your Application

Choosing the perfect spindle for your machine tool isn’t just about picking the most powerful or the fastest option. It’s about understanding your specific needs and finding a spindle that meets them precisely. Let’s break down what you need to consider.

Application Needs

First, think about what you’re using the spindle for. Are you cutting metal, woodworking, or working with another material? The material impacts the type of spindle you need. For example, metal cutting requires a spindle that can handle high torque and power, while woodworking might need a spindle with high speed but less torque.

Speed Requirements

How fast does your spindle need to spin? High-speed operations need spindles that can maintain accuracy at those speeds. Higher speeds can mean more wear and tear, so balance is key.

Torque and Power

Torque is the force the spindle uses to turn your tool. More torque means more cutting power, especially for tough materials. But, more power usually means a bigger, more expensive spindle. Think about how much power you really need for your tasks.

Stiffness

The stiffness of a spindle affects its ability to cut accurately. A more rigid spindle can handle harder materials and more precise cuts. This is crucial for high-quality, detailed work.

Cost Considerations

Budget is always a factor. Higher performance often comes with a higher price tag. Consider the cost of the spindle itself, along with any maintenance and repair costs. Sometimes, spending more upfront can save money in the long run by reducing downtime and repair expenses.

Flexibility

Some spindles are designed for a wide range of tasks, while others are specialized. If you’re doing a variety of work, look for a spindle that offers the flexibility to switch between different types of jobs easily.

Serviceability

How easy is it to maintain and repair the spindle? Downtime can be costly, so consider how quickly and easily a spindle can be serviced. Companies like MZI Precision specialize in spindle repair, which can be a lifeline if you run into issues.

Dynamic Behavior

Lastly, think about the spindle’s dynamic behavior – how it performs under load, its vibration characteristics, and how it reacts to speed changes. A spindle that maintains its performance characteristics across a range of conditions will provide more consistent, reliable results.

In summary, selecting the right spindle is about understanding your specific needs and finding a balance between performance, cost, and reliability. Consider what you’re cutting, how fast and powerfully you need to cut, and how much you’re willing to spend. The right spindle can significantly impact your productivity and product quality, so take the time to choose wisely.

Frequently Asked Questions about Machine Tool Spindle Design

Machine tool spindle design can get pretty technical, but let’s break it down. Here are some common questions we hear a lot.

What Determines the Choice Between Belt-driven and Direct-drive Spindles?

Belt-driven spindles are like the reliable old car that gets you from point A to point B. They’re cost-effective and versatile, fitting a wide range of motors. But, they wear out over time and can’t go as fast as some of us might like.

On the other hand, direct-drive spindles are the sports cars. They’re directly connected to the motor, which means they can go faster and last longer without needing as much TLC. But, like sports cars, they come with a higher price tag.

Choosing between them comes down to two things: speed and budget. If you need high speed and can afford the investment, direct-drive is the way to go. If you’re watching your wallet or don’t need that extra speed, belt-driven will do just fine.

How Do Spindle Designs Impact Machine Tool Productivity?

Imagine you’re trying to make a smoothie, but all you have is a spoon. It’s going to take forever, right? But if you have a blender, you’ll be sipping that smoothie in no time. Spindles work the same way for machine tools.

A well-designed spindle means your machine can cut, drill, or mill faster and more accurately. This doesn’t just save you time; it also means less wear on your tools and better-quality products coming off the line. So, investing in a good spindle design is like choosing a blender over a spoon for your smoothie. It just makes everything better.

What Are the Latest Trends in Spindle Technology?

The world of spindle technology is always moving. Here are a few trends that are making waves:

  • High-speed operations: Everyone wants to do things faster these days, and spindles are no exception. We’re seeing spindles that can go really fast without sacrificing accuracy or quality.

  • Multipurpose operations: Why have a machine that can only do one thing when it can do many? Spindles are becoming more versatile, able to handle different types of cutting and materials all in one go.

  • Smart spindles: Just like phones and TVs, spindles are getting smarter. They come with sensors and systems that monitor performance, predict maintenance needs, and even adjust their operation to improve quality.

  • Cooling and lubrication: Keeping things cool and well-lubricated is key for speed and longevity. Advances in cooling jackets and lubrication systems mean spindles can run faster and longer without overheating or wearing out.

The right spindle can make a huge difference in your machine’s performance. Whether you’re looking for speed, versatility, or just trying to save a few bucks, there’s a spindle design out there for you. And if you’re ever in doubt, experts like those at MZI Precision are always around to help you make the best choice for your needs.
