How to Identify and Fix Belt Driven Spindle Noise: Quick Guide

Quick Guide to Identifying and Fixing Belt Driven Spindle Noise:

  • Belt Tension: Correct tension is crucial. Too tight or too loose can cause noise.
  • Misalignment: Ensure all components are properly aligned; misalignments create unusual sounds.
  • Contamination: Keep belts clean from oil and debris to prevent slippage and noise.
  • Wear and Tear: Regularly inspect and replace worn parts to maintain spindle performance.

If you’re dealing with a noisy belt-driven spindle, you’re probably looking for a fast and straight-to-the-point solution. Look no further! Quick diagnosis and action can save you time, money, and the headache of dealing with spindle failure.

Belt tension matters a lot. If a belt is stretched too tight, it puts unnecessary stress on bearings and pulleys. On the flip side, a loose belt can slip, causing a squealing noise. Misalignment is another troublemaker. Even if everything is set just right at installation, normal wear and tear can throw things off. Contamination from dust, metal shavings, or fluids can also lead to belt and pulley damage, leading to noise and degraded performance. And speaking of wear and tear, regular checks are your best defense against sudden spindle troubles.

In simple terms, keeping your spindle humming smoothly is a balancing act of proper installation, regular maintenance, and timely intervention when something sounds off.

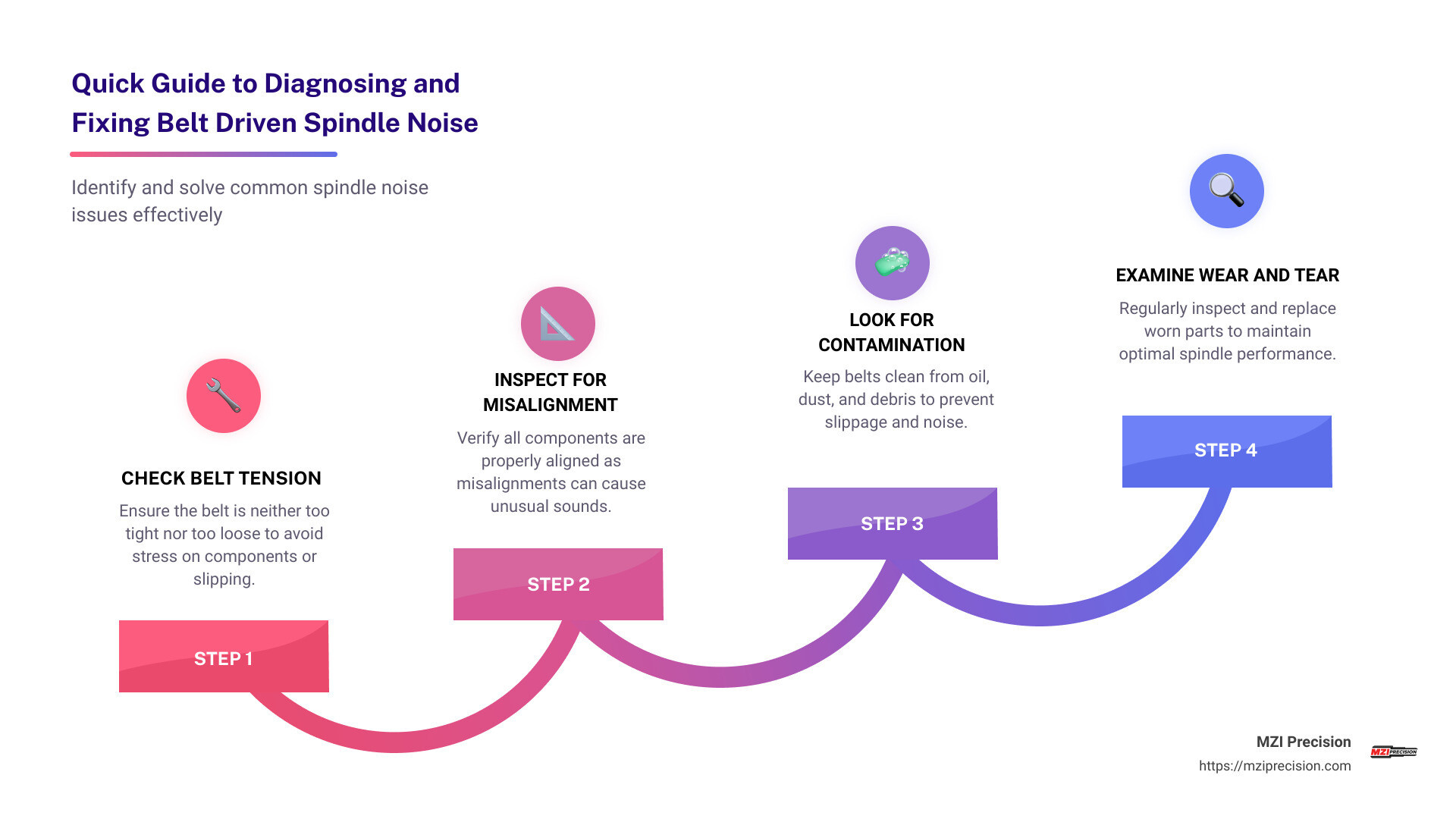

Quick guide on diagnosing and fixing belt driven spindle noises: Identify the noise type (squealing, growling, clicking), Check for belt tension and wear, Inspect pulley alignment, Look for signs of contamination - belt driven spindle noise infographic step-infographic-4-steps

Common Causes of Belt Driven Spindle Noise

When your spindle starts making noise, it’s like your machine is trying to tell you something. Let’s dive into what could be going wrong.

Improper Belt Tension

Too Tight or Too Loose?
Getting the tension just right on your spindle belt is crucial. If it’s too tight, it can cause excessive wear on the bearings and the belt itself. Too loose, and the belt might slip, leading to that squealing noise nobody likes. Tools like the Setco TensionSet can help adjust belt tension accurately, saving you from guesswork.

Contaminated Belt

Keep It Clean
Belts can get dirty. Oil, coolant, or even just the dust in the air can stick to your belt. This not only makes it slip but can also wear it out faster. A bit of belt dressing might help in some cases, but often, cleaning or replacing the belt is the way to go.

Worn Out or Misaligned Components

Time for a Checkup
Belts and pulleys wear out over time. A worn belt might not sit right on the pulleys, leading to noise. Misaligned pulleys force the belt to take a path it wasn’t meant to, causing all sorts of racket. A visual check can often tell you if components are worn or out of alignment.

Bearing Issues

The Heart of the Matter
Bearings are the heart of your spindle. If they’re worn or damaged, your spindle will let you know with a range of sounds from growling to rumbling. These noises are a clear sign that it’s time for a closer inspection, and likely, a replacement.

How to Spot the Problems:
– Improper Tension: Look for signs of wear on the belt edges or an automatic tensioner that’s at its limit.
– Contamination: Check the belt for signs of oil or unusual dirt buildup.
– Worn Components: Inspect belts for fraying and pulleys for wear or damage.
– Bearing Issues: Listen for growling or rumbling noises, indicating bearing trouble.

Getting to the bottom of belt-driven spindle noise means paying attention to these common culprits. Regular inspections and maintenance are your best defense against spindle noise and the downtime it can cause. A quiet spindle is a happy spindle.

Symptoms of Belt Driven Spindle Problems

When your spindle starts making noises it shouldn’t, it’s like your machine is trying to tell you something. Paying attention to these sounds can help you catch problems early, saving you time and money. Let’s break down what different noises might mean for your belt-driven spindle.

Squealing and Squeaking

Squealing and squeaking are high-pitched noises that often mean trouble. These sounds can happen when the belt is not aligned correctly or if it’s slipping. Imagine trying to push a shopping cart with one wheel going the wrong way. It’s not going to move smoothly, right? That’s what happens when your spindle’s belt isn’t lined up right.

  • Misalignment: If the belt isn’t straight, it can’t move smoothly. This misalignment causes the belt to rub against parts it shouldn’t, making a high-pitched noise.
  • Slipping belt: A belt that’s too loose won’t grip properly. It tries to move, slips, and makes a squealing sound. It’s like when your car tires spin on ice without moving the car.

Growling and Rumbling

Growling and rumbling noises are deeper and mean that something more serious might be wrong. These sounds often point to a problem with the bearings.

  • Worn or damaged bearings: Bearings let the spindle turn smoothly. If they’re damaged or worn out, they can’t do their job, leading to rough, growling sounds. It’s like a car engine that needs oil but isn’t getting it.

Clicking and Ticking

Clicking and ticking noises might seem minor, but they can indicate significant issues.

  • Spindle misalignment: Just like with the squealing, if the spindle isn’t aligned properly, parts that shouldn’t touch might start hitting each other, creating a ticking or clicking sound.
  • Loose components: If something inside the spindle assembly is loose, it might move around and hit other parts, making a clicking noise. It’s like having a loose part in your car’s engine that rattles as you drive.

Remember: Catching these symptoms early can save you from bigger problems down the road. Squealing might just need a realignment, but growling could mean you’re in for a more significant repair if not addressed quickly. Regular checks and knowing what to listen for are key to keeping your spindle and your production running smoothly.

How to Diagnose Belt Driven Spindle Noise

Diagnosing belt-driven spindle noise can feel like a complex puzzle. But, with the right approach, you can pinpoint the issue and find a solution. Here’s how to break it down:

Visual Inspection

Check Belt Condition: Start by looking at the belt itself. Is it frayed, cracked, or does it have any signs of wear and tear? These are clear indicators that the belt needs replacing.

Pulley Alignment: Next, examine the pulleys. They should be perfectly aligned. If they’re not, this misalignment can cause the belt to wear unevenly and make noise.

Auditory Inspection

Identify Noise Type: Listen closely to the noise. Is it a squeal, growl, or a clicking sound? Each type of noise can point to a different issue. For instance, a squealing noise often indicates a slipping belt, while a growling sound might suggest bearing problems.

Noise at Different Speeds: Pay attention to how the noise changes with spindle speed. Some issues become more pronounced at higher speeds, while others might only be noticeable at lower speeds.

Vibration Analysis

Excessive Vibration: Use a vibration analysis tool to check for abnormal vibrations. Excessive vibration can be a sign of misalignment or imbalance in the spindle assembly.

Spindle Balancing: If the vibration analysis suggests it, the spindle may need to be rebalanced. This is a precise process that should ideally be handled by professionals.

Lubricant Inspection

Lubricant Type: Make sure you’re using the correct type of lubricant for your spindle and belt system. The wrong type can cause slippage or degradation of components.

Contamination: Check the lubricant for signs of contamination. Dirt, debris, or metal shavings can indicate wear and tear or misalignment issues that need to be addressed.

By following these steps, you can diagnose the source of belt-driven spindle noise. Early detection and action can prevent more significant issues down the line. If you’re unsure or the problem persists, consulting with experts like those at MZI Precision can ensure your spindle is in top condition, minimizing downtime and maintaining productivity.

Solutions and Maintenance Tips

Dealing with belt-driven spindle noise doesn’t have to be a headache. By following these straightforward solutions and maintenance tips, you can ensure your spindle operates smoothly, reducing the risk of downtime and costly repairs.

Adjusting Belt Tension

TensionSet and Manual Adjustment are two effective methods to ensure your belt has the correct tension. Too tight, and you risk premature bearing wear; too loose, and the belt may slip, causing more noise.

  • TensionSet: This tool helps automate the tensioning process, providing a precise tension level that’s just right for your spindle’s operation.
  • Manual Adjustment: Sometimes, a more hands-on approach is needed. Adjusting the tension manually allows you to feel the belt’s tightness, ensuring it’s neither too tight nor too loose. The belt should have a slight give, but not enough to slip.

Aligning Pulleys

Misaligned pulleys are a common cause of belt noise. Using Pulley Alignment Tools or seeking Professional Service can help ensure your pulleys are perfectly aligned, minimizing wear and noise.

  • Pulley Alignment Tools: These tools help you check the alignment of your pulleys, ensuring they are in the correct position for optimal operation.
  • Professional Service: Sometimes, it’s best to leave it to the experts. Professional services can ensure your pulleys are aligned correctly, using their expertise and specialized tools.

Replacing Worn Components

Worn components such as Bearings, Belts, and Pulleys can contribute to spindle noise. Replacing these components can often solve the problem.

  • Bearings: Listen for growling or rumbling noises, which indicate bearing wear. Replace worn or damaged bearings immediately.
  • Belts: Look for signs of wear such as cracks or fraying. A worn belt can cause slippage and noise.
  • Pulleys: Check for wear or damage. A damaged pulley can misalign the belt, leading to noise.

Proper Lubrication

Using OEM Recommendations and Clean Lubricants is crucial for maintaining your spindle’s health and preventing noise.

  • OEM Recommendations: Always follow the manufacturer’s recommendations for lubrication. Using the wrong type can cause damage and increase noise.
  • Clean Lubricants: Ensure the lubricants you use are clean and free of contaminants. Dirty lubricants can cause wear and noise.

By implementing these solutions and maintenance tips, you can significantly reduce the risk of belt-driven spindle noise, ensuring your machinery operates smoothly and efficiently. Regular maintenance is key to preventing issues before they start. If you’re ever in doubt, don’t hesitate to reach out to the professionals at MZI Precision for advice and service.

Preventive Measures and Best Practices

Preventing belt-driven spindle noise isn’t just about fixing problems as they arise—it’s about stopping them before they start. Let’s dive into some essential strategies to keep your spindles humming smoothly.

Predictive Maintenance Program

Predictive maintenance is like the crystal ball of machinery care. It’s not about reacting; it’s about predicting. By scheduling regular check-ups based on usage and wear-and-tear predictions, you can catch issues before they escalate. This involves:

  • Schedule maintenance at times that have the least impact on production. It’s like choosing to go to the dentist on a quiet day instead of when you have a big presentation.
  • Implement fail-safe procedures to identify potential failures. Think of it as having a safety net to catch problems before they cause a fall.

Training for Proper Installation and Maintenance

Knowledge is power, especially when it comes to operator training. Proper training ensures that those who work with the machinery can:

  • Recognize the early signs of trouble.
  • Know the maintenance techniques that keep machines running smoothly.
  • Understand how to correctly install components to prevent issues from arising in the first place.

Spindle Diagnostics and Maintenance

Having the right partner for spindle diagnostics and maintenance can make all the difference. MZI Precision offers:

  • Setco services that bring expert knowledge directly to your doorstep. Our specialists can pinpoint issues with precision and care.
  • Access to expert knowledge means you’re not just getting a service; you’re getting years of experience and understanding that can guide you toward the best solutions for your machinery.

Vibration Monitoring Program

Vibrations can be a tell-tale sign of spindle issues. By implementing a vibration monitoring program, you can:

  • Eliminate vibrations that might be causing noise or indicating deeper problems.
  • Maintain spindle health by identifying issues early and addressing them before they lead to significant damage.

By adopting these preventive measures and best practices, you’re not just fixing problems—you’re setting up your machinery for long-term success. Regular maintenance, coupled with a keen eye for early signs of trouble, can save time and money while ensuring your operations run as smoothly as possible. The goal is to prevent issues before they start, and with the right knowledge, tools, and partners like MZI Precision, you’re well on your way to achieving that.

Conclusion

At MZI Precision, we understand that dealing with belt driven spindle noise can be a complex challenge. But, with our expertise in spindle repair and rebuilding, we’re here to make it simple and straightforward for you. Our commitment to exceptional service ensures that your machinery gets back to its optimal condition with minimal downtime.

Why trust MZI Precision? Here’s what sets us apart:

  • Expertise in Spindle Repair and Rebuilding: Our team has years of experience and a deep understanding of different spindle types, including belt-driven spindles. Whether it’s a standard model or a custom design, we have the skills to handle it.

  • Commitment to Exceptional Service: We know the importance of your machinery’s smooth operation. Our dedicated staff works around the clock to provide quick turnarounds and emergency repair services, ensuring that your operations experience minimal interruptions.

  • Predictive Maintenance and Vibration Monitoring: We don’t just fix problems; we help prevent them. Our predictive maintenance programs and vibration monitoring services are designed to keep your spindle in top-notch condition, reducing the likelihood of unexpected failures.

  • Training and Support: Knowledge is power. We offer training for operators and maintenance teams to ensure proper installation and upkeep, extending the lifespan of your machinery.

  • Customer Satisfaction: At the end of the day, our success is measured by your satisfaction. We’re proud of our track record of happy clients who appreciate our fast service, quality repairs, and the peace of mind that comes with knowing their spindle is in good hands.

Dealing with belt driven spindle noise doesn’t have to be a headache. With MZI Precision, you have a partner ready to diagnose, repair, and prevent issues, keeping your operations running smoothly. Our approach combines cutting-edge technology with tried-and-true techniques, ensuring your spindle performs at its best.

For more information on how we can help with your spindle repair needs, visit our spindle repair service page. Let’s work together to keep your machinery in peak condition.
