Why Single Spindle CNC Machines Are the Backbone of Modern Manufacturing
A single spindle cnc machine is a computer-controlled manufacturing tool that uses one rotating spindle to hold cutting tools for precise material removal operations. These machines form the foundation of most machine shops worldwide, offering the perfect balance of precision, flexibility, and cost-effectiveness for small to medium production runs.
Key characteristics of single spindle CNC machines:
- One spindle system – Uses a single rotating shaft to hold and drive cutting tools
- High precision – Achieves repeat accuracy of 0.01mm to 0.05mm consistently
- Versatile operation – Handles turning, milling, drilling, and complex 5-axis machining
- Material flexibility – Machines steel, aluminum, titanium, brass, and specialized alloys
- Speed range – Operates at speeds up to 4,000mm/min with working speeds up to 3,000mm/min
- Automation ready – Integrates with gantry loaders, bar feeders, and robotic systems
Whether you’re running a job shop producing aerospace brackets or a medical device manufacturer creating precision implants, single spindle machines deliver the accuracy and reliability that modern manufacturing demands. They require less maintenance than multi-spindle alternatives due to fewer moving parts, making them ideal for operations where minimizing downtime is critical.
Mastering the Single Spindle CNC Machine
A single spindle cnc machine operates like a highly sophisticated sculptor that never gets tired. Instead of chiseling marble, it uses rotating cutting tools to carefully remove material from metal blocks, creating everything from simple shafts to complex aerospace components with incredible precision.
The process starts when you feed G-code instructions into the machine’s computer. These digital commands tell the machine exactly where to move, how fast to spin the spindle, and when to change tools. The single spindle cnc machine reads each line of code and translates it into precise mechanical movements.
At the heart sits the spindle – a precision-engineered rotating shaft that holds cutting tools. Modern industrial spindles can spin at speeds up to 24,000 RPM while maintaining incredible accuracy. The spindle delivers the torque needed to slice through tough materials like hardened steel or titanium, following a carefully calculated torque curve that maximizes cutting efficiency.
What makes these machines impressive is their repeatability of 0.01mm – thinner than a human hair! This precision comes from sophisticated feedback systems that constantly monitor and adjust every movement. If the machine drifts even slightly from its programmed path, sensors catch the deviation and correct it instantly.
How a single spindle CNC machine converts code into chips
The journey from digital code to metal chips involves a carefully choreographed sequence. When you hit start, servo motors spring into action, receiving precise electrical signals from the control system.
These servo motors turn precision ball screws that convert rotational motion into smooth, accurate linear movement along each axis. The drive system coordinates all movements while managing power delivery to each component, positioning tools within fractions of a millimeter.
Coolant delivery floods the cutting zone with precisely mixed coolant that keeps cutting tools cool, lubricates the cutting action, and washes away metal chips. Advanced systems deliver coolant through the spindle itself, getting cooling fluid right to the cutting edge.
Throughout this process, sensors monitor spindle temperature, vibration levels, tool wear, and axis positions. This constant feedback allows real-time adjustments, ensuring consistent quality from the first part to the thousandth.
Core components that keep the single spindle CNC machine accurate

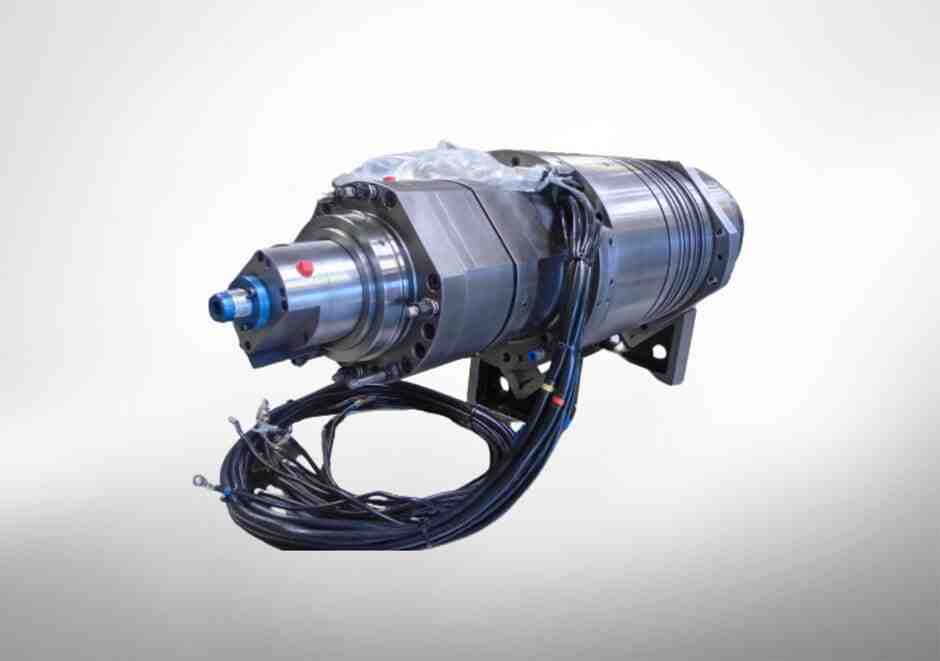

The motorized spindle integrates the motor directly into the spindle assembly, eliminating vibration and backlash that belts can introduce, resulting in smoother operation and better surface finishes.
The spindle housing provides the rigid foundation manufactured from high-grade cast iron or steel. These housings undergo stress-relief treatments to prevent warping over time.
Inside the spindle, precision bearings support the rotating shaft while handling both radial and axial forces. These high-grade units are carefully preloaded to eliminate any play that could affect accuracy.
The drawbar system runs through the spindle center and provides clamping force to secure cutting tools. Modern systems can cycle in seconds while maintaining grip strength for the heaviest cuts.
Closed-loop feedback constantly monitors machine performance. Position encoders track exactly where each axis is located, while temperature sensors watch for thermal expansion that could affect accuracy.
Industrial Types & Capabilities You Should Know
When exploring single spindle cnc machine options, you’ll find specialized equipment designed for different manufacturing challenges. Each type has evolved to excel in specific applications.
Turning centers form the backbone of most machine shops, built specifically for cylindrical parts like shafts, hubs, and bushings. They excel at operations like facing, turning, boring, and threading with exceptional precision. Modern turning centers can handle workpieces up to 400mm in length and 200mm in diameter.
Gang tool lathes mount multiple cutting tools on a rigid gang plate instead of using a rotating turret. This delivers superior rigidity and faster cycle times, particularly valuable for high-volume production of smaller parts.
Machining centers bring multi-axis capability to single spindle platforms, excelling at 4-axis and 5-axis operations in a single setup. The integration of Y-axis capability allows for off-centerline operations that transform what’s possible on a single spindle platform.
The material range these machines handle spans from soft aluminum alloys to hardened steel, titanium, and exotic aerospace materials.
| Machine Type | Max Spindle Speed | Typical Workpiece Size | Primary Operations |
|---|---|---|---|
| Turning Center | 3,500-6,000 RPM | 200mm dia x 400mm length | Turning, facing, boring |
| Gang Tool Lathe | 4,000-8,000 RPM | 80mm dia x 60mm length | High-volume turning |
| Machining Center | 8,000-24,000 RPM | 600x400x150mm envelope | Milling, drilling, 5-axis |
From turning to multitasking—single spindle CNC lathes
The evolution of single spindle CNC lathes has transformed simple turning machines into multitasking powerhouses that handle operations previously requiring multiple machines and setups.
Live tooling allows machines to perform milling, drilling, and tapping operations without transferring the workpiece. The time savings can be dramatic – cycle time reductions of 50% or more for complex parts with multiple features.
Shaft parts and hubs particularly benefit from modern lathe capabilities. The servo tailstock adds programmable support for long shaft parts while maintaining concentricity critical for rotating components.
Turret options have expanded significantly. Smaller machines typically feature 8-station units, while production machines often step up to 12-station configurations. Each tool station can be equipped with live tooling capability, essentially turning your lathe into a complete machining center.
Single spindle CNC machining centers for complex 5-axis parts
Single spindle CNC machining centers excel when producing complex components that demand multiple operations in a single setup. The aerospace industry has adopted these machines for components like battery trays for electric vehicles and structural aerospace brackets requiring precise hole patterns and complex contours.
Working with materials like titanium and aluminum requires machines that handle the unique challenges each material presents. Titanium demands consistent cutting speeds and excellent heat management, while aluminum requires high spindle speeds and precise coolant delivery.
Five-axis capability represents the pinnacle of single spindle machining technology, allowing complete machining of complex geometries in a single setup, eliminating accuracy losses from multiple setups.
Features, Automation & Software That Raise the Bar
The magic of modern single spindle cnc machine technology isn’t just in the cutting—it’s in sophisticated features working behind the scenes to deliver consistent 0.01mm accuracy for precision manufacturing.
Linear guideways provide superior accuracy and rigidity while cutting friction dramatically. They maintain precision over millions of cycles, so your machine performs as accurately in year five as on installation day.
Closed-loop stepper motors include encoder feedback that prevents lost steps entirely. This enables traverse speeds up to 6,000mm/min compared to the 4,000mm/min limit of older systems. Built-in encoders provide pulse-signal feedback that enables automatic motion compensation.
Gantry loaders equipped with FANUC AC servo motors provide reliable material handling. These systems can be configured as dual gantry setups for maximum flexibility, handling different part geometries without manual operator intervention.
Bar feeders transform turning operations by automatically feeding bar stock as needed. Combined with part catchers and chip conveyors, you get systems capable of true lights-out operation.
In-process gauging systems verify critical dimensions during machining cycles, enabling real-time adjustments that maintain quality as tools wear. These systems trigger tool changes or offset adjustments automatically.
According to scientific research on spindle dynamics, the integration of predictive maintenance with digital twin technology represents the cutting edge of spindle performance optimization.
Integrating software suites with your single spindle CNC machine
Modern CNC controls store up to 1,200 custom part programs, minimizing setup time for repeat jobs and eliminating program storage issues.
Advanced CAM post-processors designed specifically for your control system solve complex 5-axis programming challenges. Post-processors for controls like GSK in Fusion 360 CAM generate optimized toolpaths that take full advantage of your machine’s capabilities while automatically avoiding collisions.
Adaptive toolpath technology adjusts cutting parameters in real-time based on material conditions and tool wear, extending tool life while maintaining optimal productivity.
IoT monitoring systems bring your machine into the connected age, tracking machine performance, tool usage, and quality metrics in real-time. This enables predictive maintenance strategies that prevent unexpected downtime.
Automation add-ons that transform a single spindle CNC machine
Part catchers are essential for safe lights-out operation, ensuring finished parts are safely captured and positioned for quality inspection or secondary operations.
Dual gantry systems provide ultimate flexibility, allowing machines to handle wide varieties of part geometries without manual reconfiguration. One gantry loads the next part while the other removes the finished component.
For machining centers, pallet systems extend automation by allowing multiple workpieces to be set up offline while your machine continues production. Quick-change pallet systems swap workpieces in seconds, maximizing spindle utilization.
Applications, Economics, Advantages & Limitations
Single spindle cnc machine technology serves diverse industries with varying production requirements. The aerospace sector relies on these machines for precision components that must meet stringent quality standards while working with challenging materials.
Medical device manufacturing leverages precision capabilities for implants and surgical instruments where surface finish and dimensional accuracy directly impact patient outcomes. The ability to machine biocompatible materials like titanium and cobalt-chrome alloys makes these machines indispensable.
Defense applications often require small batch production of complex components with extensive documentation requirements. Single spindle machines excel in this environment, providing flexibility to accommodate engineering changes while maintaining required precision.
Small to medium batch production represents the sweet spot for single spindle technology. These machines provide flexibility to handle variety while delivering precision and repeatability needed for quality production.
When to choose a single spindle CNC machine vs multi-spindle
Production volume serves as the primary decision factor. Single spindle machines excel when production volumes range from prototypes to several thousand parts annually, while multi-spindle machines become economically attractive for higher volumes.
Part complexity also influences decisions. Complex parts requiring multiple operations, various tooling, or frequent setup changes favor single spindle machines due to their flexibility.
Budget constraints often favor single spindle machines due to lower initial cost and reduced complexity. Programming, setup, and maintenance requirements are generally less demanding, reducing total cost of ownership.
Scalability considerations favor single spindle machines when production requirements may change over time. Adding capacity is straightforward – simply add another machine.
Economic impact of deploying single spindle CNC machines
Labor savings represent one of the most significant economic benefits. Automated gantry loaders and bar feeders enable extended unattended operations, reducing direct labor costs while improving consistency.
Downtime reduction comes from inherently simpler design. With fewer moving parts than multi-spindle alternatives, these machines typically require less maintenance and experience fewer unexpected failures.
Maintenance costs remain lower throughout the machine’s lifecycle due to reduced complexity. Spare parts inventory requirements are smaller, and maintenance procedures can often be performed by in-house personnel.
Energy efficiency provides ongoing operational savings. Operating one dual-capability machine consumes less energy than running two separate machines, and modern spindle designs optimize power consumption across the operating range.
Choosing, Maintaining & Upgrading Your Single Spindle CNC Machine
Finding the perfect single spindle cnc machine for your shop starts with honestly assessing your spindle speed requirements. If you’re primarily machining aluminum parts, you’ll want higher speeds around 15,000+ RPM. For steel, focus on machines that deliver serious torque at moderate speeds between 3,000-6,000 RPM.
Tool capacity affects workflow efficiency. Machines with 10 or more tool positions give you flexibility to complete complex parts without constant tool changes. Consider where your business is heading – tool capacity is nearly impossible to upgrade later.
The coolant system deserves serious consideration, especially for tough materials or deep holes. Basic flood cooling handles most applications, but through-spindle coolant delivery transforms capability with challenging materials.
Don’t forget work envelope dimensions. That 600mm x 400mm specification looks great on paper, but fixtures and tooling eat into that space. Always plan for your largest anticipated parts plus reasonable clearances.
Preventive maintenance essentials for single spindle CNC machines
Maintenance is either planned or expensive. The good news is that single spindle cnc machine maintenance doesn’t require advanced degrees.
Daily visual inspections catch obvious issues early. Look for unusual chips, listen for strange noises, and check coolant levels. Weekly detailed inspections examine tool wear, check for loose fasteners, and verify all systems operate normally.
Grease quality is critical for bearing life and smooth spindle operation. Stick with manufacturer-recommended lubricants – this isn’t the place to save money with generic alternatives. Automatic lubrication systems eliminate “forgot to grease the machine” moments.
Bearing health monitoring through vibration analysis detects bearing defects months before they cause catastrophic failures, letting you schedule repairs during planned downtime instead of scrambling for emergency service.
Thermal stability monitoring throughout the machine catches cooling system problems and excessive heat generation that affect both accuracy and component life.
Regular spindle runout checks ensure your machine maintains accuracy over time. Excessive runout signals bearing wear or damage needing immediate attention.
At MZI Precision, we’ve witnessed how proper preventive maintenance extends spindle life by 300% or more. Our experience rebuilding spindles across aerospace, defense, and energy industries shows that shops with disciplined maintenance practices avoid costly surprises.
Customizing and future-proofing your machine
Software updates keep your machine current with the latest control features and capabilities. Many manufacturers provide regular updates that add functionality without requiring hardware changes.
Modular automation components let you grow capabilities as your business evolves. Starting with a basic machine and adding automation later often provides better ROI than purchasing full automation upfront.
IIoT sensors enable predictive maintenance and production optimization through intelligent data collection. These systems identify optimization opportunities and predict maintenance needs before problems develop.
Retrofit kits can transform existing machine capabilities by adding axes, live tooling, or other features. Many single spindle machines feature upgradeable designs that allow conversion to dual-spindle configurations when production requirements change.
For comprehensive spindle services and expert guidance on maintaining your single spindle CNC machines, visit our CNC Machine Spindle services page.
Frequently Asked Questions about Single Spindle CNC Machines
What precision can I expect from a single spindle CNC machine?
Modern single spindle cnc machine technology consistently delivers repeat accuracy between 0.01mm to 0.05mm, with some premium machines pushing even tighter tolerances.
This remarkable accuracy comes from several technologies working in harmony. High-resolution feedback systems monitor position down to submicron levels, while precision ball screws eliminate backlash. The machine’s thermally stable structure resists distortion during long production runs, and advanced control algorithms automatically compensate for known error sources.
Precision depends on practical factors. Smaller parts typically hit tighter tolerances than larger ones because there’s less opportunity for thermal effects and structural deflection. Your material choice, cutting conditions, and maintenance all play important roles.
How does a single spindle CNC machine handle different materials?
One beautiful aspect of single spindle cnc machine technology is its versatility with different materials. The secret is matching cutting parameters to each material’s characteristics.
Steel and cast iron prefer moderate speeds but need plenty of torque. These materials respond well to flood coolant that manages heat buildup and extends tool life.
Aluminum loves high spindle speeds, often 8,000 RPM or higher, with aggressive feed rates. Through-spindle coolant prevents aluminum chips from welding to tools and ensures mirror-like surface finishes.
Titanium and exotic alloys demand respect and precision. These materials will work-harden if you’re not careful, so lower speeds with consistent feed rates and excellent coolant delivery are essential.
Brass and bronze are generally cooperative materials that machine easily, but keep tools sharp and ensure proper chip evacuation to prevent built-up edge formation.
What factors drive the total cost of ownership?
Understanding the true cost of owning a single spindle cnc machine goes far beyond the initial purchase price.
The initial purchase price typically represents only 20-30% of your total cost over the machine’s lifetime. Operating costs include power consumption, coolant, and consumables that add up over time.
Maintenance costs vary dramatically based on machine design and usage. Single spindle machines typically require less maintenance than multi-spindle alternatives because there are fewer moving parts.
Labor costs often represent the largest slice of operating expenses. Automation features like gantry loaders and bar feeders can dramatically reduce direct labor requirements, sometimes paying for themselves within the first year.
Downtime costs from unexpected failures can be brutal. A single unplanned failure during critical production can cost more than a year’s worth of preventive maintenance.
Conclusion
Choosing the right single spindle cnc machine can transform your manufacturing operation, but success doesn’t end with the purchase decision. These remarkable machines deliver exceptional precision down to 0.01mm while handling everything from soft aluminum to hardened exotic alloys – but only when they’re properly maintained and supported.
The beauty of single spindle technology lies in its simplicity and reliability. With fewer moving parts than multi-spindle alternatives, these machines spend more time cutting chips and less time waiting for repairs. Material versatility means you can tackle aerospace titanium components one day and medical device brass fittings the next, all on the same machine.
Automation compatibility sets single spindle machines apart. Adding a gantry loader or bar feeder transforms a manually operated machine into a lights-out production system. Your machine keeps working while you focus on other priorities.
The scalable capacity aspect often surprises manufacturers. Need to double production? Add another single spindle machine. It’s that straightforward – just proven technology doing what it does best.
But here’s what many manufacturers find too late: even the best single spindle cnc machine depends entirely on spindle performance. When that critical rotating component starts showing wear, your precision disappears and your deadlines become impossible to meet.
At MZI Precision, we’ve seen this scenario countless times across aerospace, defense, and energy industries. That’s why we’ve built our expertise around keeping industrial manufacturing spindles running at peak performance. Whether you need emergency spindle repair when production stops unexpectedly, or preventive rebuilding to avoid costly downtime, we understand what’s at stake.
Our team knows that your single spindle cnc machine isn’t just equipment – it’s the foundation of your promises to customers. When you need spindle services that match the precision and reliability of your manufacturing standards, we’re here to deliver the expertise that keeps your operation moving forward.
