DMG Mori Spindle Repair: Expert Tips and Advice

DMG Mori Spindle Repair: Why It’s Essential for Your Shop

When it comes to high-precision machining, DMG Mori spindle repair is crucial for maintaining operational efficiency and reducing downtime. Whether you’re managing aerospace components or other high-stakes manufacturing, keeping your CNC machine tools running smoothly is paramount.

Quick Answer:
1. Save Costs: Repairing spindles is often more cost-effective than replacement.
2. Minimal Downtime: Rapid repair services get you back in operation quickly.
3. Precision: Expert technicians ensure spindles meet or exceed OEM standards.

DMG Mori spindles are renowned in the manufacturing world for their reliability and precision. However, like any mechanical component, they are susceptible to wear and tear. Ensuring your spindles are repaired promptly and accurately can mitigate costly downtimes and keep your operations seamless.

At MZI Precision, our expert team specializes in the repair and rebuilding of DMG Mori spindles. Equipped with advanced tools and years of experience, we tackle complex issues to restore your spindles to optimum performance. This guide will walk you through everything you need to know about repairing DMG Mori spindles, from understanding spindle types and components to tips for maintenance and choosing between repair and replacement options.

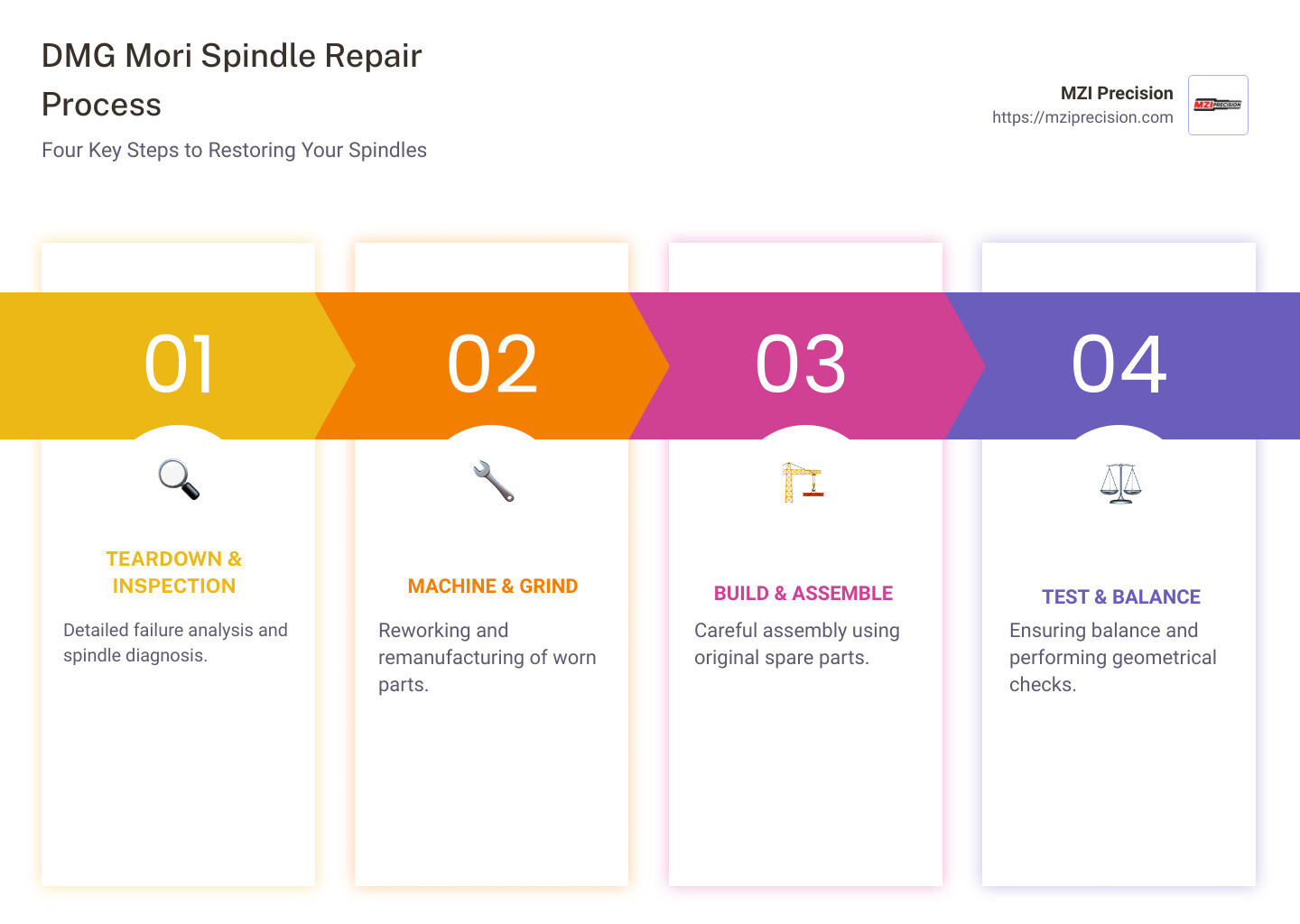

DMG Mori Spindle Repair Process Explained - dmg mori spindle repair infographic pillar-4-steps

Understanding DMG Mori Spindles

Spindle Types

DMG Mori spindles come in various types, each designed for specific machining tasks. The primary types include:

  • Turning Spindles: Used in lathes for rotational cutting.
  • Milling Spindles: Designed for multi-axis milling operations.
  • Grinding Spindles: Engineered for high-precision grinding tasks.

Each spindle type has unique specifications such as speed, power, and tooling compatibility. For instance, the NLX2500 model features a turning spindle with 4,000 rpm and 18.5 kW power, while the NVX7000 offers a milling spindle with 20,000 rpm and 15 kW power.

DMG Mori Products

DMG Mori is known for high-quality machine tools used in various industries like aerospace, automotive, and manufacturing. Some notable spindle models include:

  • NHX4000: 12,000 rpm, 15 kW, CAT 40 spindle
  • NTX4000: 6,000 rpm, 11 kW, CAPTO milling spindle
  • DMC 80 H: 18,000 rpm, 34 kW, CAT 40 spindle

These spindles are integral to machines that perform complex tasks with high precision. The DMU40 model, for example, is equipped with a 14,000 rpm, 15 kW, SK 40 spindle, making it suitable for intricate milling operations.

Spindle Components

Understanding the components of a DMG Mori spindle helps in diagnosing issues and performing repairs. Key components include:

  • Bearings: Support rotational motion and reduce friction. High-quality bearings like VACRODUR are used for extended service life.
  • Rotors: Convert electrical energy into mechanical motion.
  • Drawbars: Secure the tool in the spindle and can withstand up to 5 million cycles.
  • Cooling Systems: Maintain optimal temperature to prevent overheating.
  • Sensors: Monitor speed, temperature, and vibration for performance analysis.

A typical spindle repair involves inspecting and possibly replacing these components to restore functionality. For instance, during a teardown & inspection, the bearings might be checked for wear and tear, while the rotors are examined for any signs of damage.

Understanding these elements is crucial for effective dmg mori spindle repair. Next, we’ll delve into the detailed repair process, including teardown, machining, assembly, and testing.

DMG Mori Spindle Repair Process

Teardown & Inspection

The first step in the DMG Mori spindle repair process is the teardown & inspection. This involves carefully disassembling the spindle to identify any issues. Technicians look for signs of wear, damage, or contamination.

Failure analysis is a critical part of this stage. It’s not just about finding what’s broken but understanding why it failed. This helps prevent future issues. For instance, a spindle showing heavy contamination might indicate problems in the cooling system or inadequate sealing.

Machine & Grind

After diagnosing the problems, the next step is machine & grind. Here, worn or damaged parts are reworked to restore their original specifications. This could involve grinding down surfaces to remove imperfections or remanufacturing parts that are beyond repair.

Think of this as sharpening a dull pencil. Technicians grind and machine the parts to ensure they fit and function perfectly.

Build & Assemble

Once all parts are in top shape, it’s time to build & assemble the spindle. This is like putting together a complex puzzle. Every piece must fit perfectly. Technicians use original spare parts to ensure compatibility and reliability.

Using OEM parts is crucial for maintaining the spindle’s performance and longevity. It ensures that the spindle functions as intended by the manufacturer.

Test & Balance

Before the spindle is ready to go back to work, it undergoes test & balance. This step ensures that the spindle operates smoothly and efficiently. Technicians perform geometrical checks and balance the spindle to prevent vibrations that could affect machining accuracy.

Balancing is essential because even the slightest imbalance can lead to significant issues during operation.

Finish & Package

The final step is finish & package. Here, the spindle is given a last inspection to ensure it meets all quality standards. It’s then carefully packaged to prevent any damage during transportation.

Final acceptance checks confirm that the spindle is ready for use, ensuring reliability and high performance when it returns to your production line.

Throughout the entire DMG Mori spindle repair process, the focus is on precision and care. From initial teardown & inspection to the final finish & package, every step is meticulously carried out to restore your spindle to its optimal condition.

Next, we’ll explore the options available when deciding between repairing or replacing your spindle.

Replacement vs. Repair: What to Choose?

When it comes to DMG Mori spindle repair, you have three main options: new spindles, replacement spindles, and spindle repair. Each option has its own benefits in terms of cost, time, and reliability. Let’s break down these choices to help you decide what’s best for your needs.

New Spindles

Opting for a new spindle is often the most straightforward solution. Here are the key benefits:

  • Stock Availability: With a 96% stock availability rate, new spindles are almost always ready for immediate dispatch.
  • Warranty: New spindles come with an 18-month warranty, providing peace of mind. For master spindles, this extends to a 36-month warranty with no limit on operational hours.
  • Cost Savings: In some cases, only the rotor needs replacing, which can save you additional costs.

New spindles are ideal if you require the highest reliability and can afford a higher upfront cost.

Replacement Spindles

Replacement spindles offer a middle ground between new spindles and repair services:

  • Cost-Effectiveness: Replacement spindles can be up to 25% less expensive than new spindles.
  • Warranty: They come with a 12-month warranty, ensuring you have a guarantee on the parts and workmanship.
  • Reliability: All wear parts are replaced with original spare parts, providing long-term reliability.

Replacement spindles are a cost-effective option when you need a balance between affordability and reliability.

Spindle Repair

Spindle repair is often the most economical choice, especially for minor damages:

  • Cost Control: A customized spindle repair service allows you to control costs. After diagnosing the spindle, experts provide a repair recommendation, and you decide the extent of the repair.
  • Guarantee: Repairs come with a 12-month guarantee for exchanged parts and carried out work.
  • Professional Installation: The spindle is installed by DMG Mori Service Experts, ensuring professional and precise work.
  • Latest Technology: Repairs convert spindles to the current state of the art, often including updates like retrofitting to speedMASTER & powerMASTER.

Spindle repair is highly cost-effective and can extend the life of your spindle, making it a viable option for many businesses.

By understanding the benefits of new spindles, replacement spindles, and spindle repair, you can make an informed decision that balances cost, downtime, and reliability.

Next, we’ll dive into expert tips for maintaining your DMG Mori spindles to ensure they run smoothly and efficiently.

Expert Tips for Maintaining DMG Mori Spindles

Proper maintenance of your DMG Mori spindles is crucial for ensuring long-term reliability and optimal performance. Here are some expert tips to keep your spindles in top shape.

Regular Maintenance

Scheduled Checks: Regular inspections can catch issues before they become serious problems. Check for any signs of wear and tear, leaks, or unusual noises. Consistent maintenance helps extend the life of your spindle.

Lubrication: Proper lubrication is essential. Use the correct, filtered oil and maintain an optimal flow of motor coolant. Over-cooling can cause condensation and damage to the spindle. Always ensure your spindle is clean and dry to prevent damage to the tool holder and spindle.

Monitoring Performance

Vibration Analysis: Utilize vibration analysis to monitor the health of your spindle. Increased vibration can indicate bearing issues or balance problems, leading to poor part finish and increased wear.

Noise Detection: Unusual noises are often a sign of spindle issues, such as noisy or contaminated bearings. Early detection can prevent more severe damage and reduce downtime.

Using Original Parts

OEM Parts: Always use original equipment manufacturer (OEM) parts for repairs and replacements. OEM parts ensure compatibility and long-term reliability. They are designed to meet the exact specifications of your DMG Mori spindle, providing better performance and durability.

By following these expert tips, you can maintain the efficiency and longevity of your DMG Mori spindles. Regular maintenance, performance monitoring, and using OEM parts are key to keeping your CNC machines running smoothly.

Frequently Asked Questions about DMG Mori Spindle Repair

What is the warranty on DMG Mori spindles?

DMG Mori offers a robust warranty on their spindles. All new spindles come with an 18-month warranty. For master spindles, the warranty extends to 36 months with no limit on operational hours. This ensures you have peace of mind knowing that your investment is protected for an extended period.

How long does a spindle replacement take?

A spindle replacement by DMG Mori is designed to be fast and efficient. A spindle technician can replace your spindle in under two hours. This quick turnaround minimizes downtime and keeps your production line moving.

What is the process of spindle repair?

The DMG Mori spindle repair process is thorough and ensures your spindle is restored to optimal condition. Here’s a breakdown of the steps involved:

  1. Teardown & Inspection: The spindle is carefully disassembled, and a failure analysis is conducted to diagnose the issue.

  2. Machine & Grind: Any worn or damaged parts are reworked or remanufactured to meet original specifications.

  3. Build & Assemble: The spindle is reassembled using original spare parts to ensure compatibility and longevity.

  4. Test & Balance: The spindle undergoes rigorous testing and balancing to ensure it meets performance standards.

  5. Finish & Package: After passing all tests, the spindle is given a final acceptance and packaged for delivery.

By adhering to this comprehensive process, DMG Mori ensures that each repaired spindle performs reliably and efficiently.



In the world of industrial manufacturing, maintaining optimal performance of your DMG Mori spindles is crucial. Downtime can lead to significant losses, making professional DMG Mori spindle repair services indispensable. Common issues like noisy bearings, increased vibration, or burned stators can severely affect productivity. Our detailed repair process ensures accurate diagnosis, effective repair, and timely restoration of your spindle’s performance.

MZI Precision: Your Trusted Partner

At MZI Precision, we are committed to being your trusted partner for all DMG Mori spindle repair needs. Our extensive experience with various DMG Mori spindle models, including the NHX4000, NLX2500, and NTX4000, sets us apart.

We follow a meticulous process that includes initial inspection, repair or replacement of damaged parts, and rigorous high-speed balancing and testing. Our competitive 1-year warranty stands as a testament to our quality and reliability.

Expert Service

Our team of experts understands the intricacies of spindle repair. We offer:

  • 24/7 Emergency Repair Service: We know that time is money. Our dedicated staff is available around the clock to assist with emergency repairs.
  • In-house Machining and Grinding: This ensures cost savings and quick turnaround times.
  • Door-to-Door Pickup and Delivery: We offer convenient services to get your machinery up and running in no time.

Commitment to Quality

Choosing MZI Precision means choosing expertise, quality, and reliability. We are dedicated to keeping your production line running smoothly with minimal downtime. Our quick turnaround times and meticulous repair processes ensure your operations are back on track as soon as possible.

For more information about our services, contact us today! Let’s keep your production line running smoothly, together.
